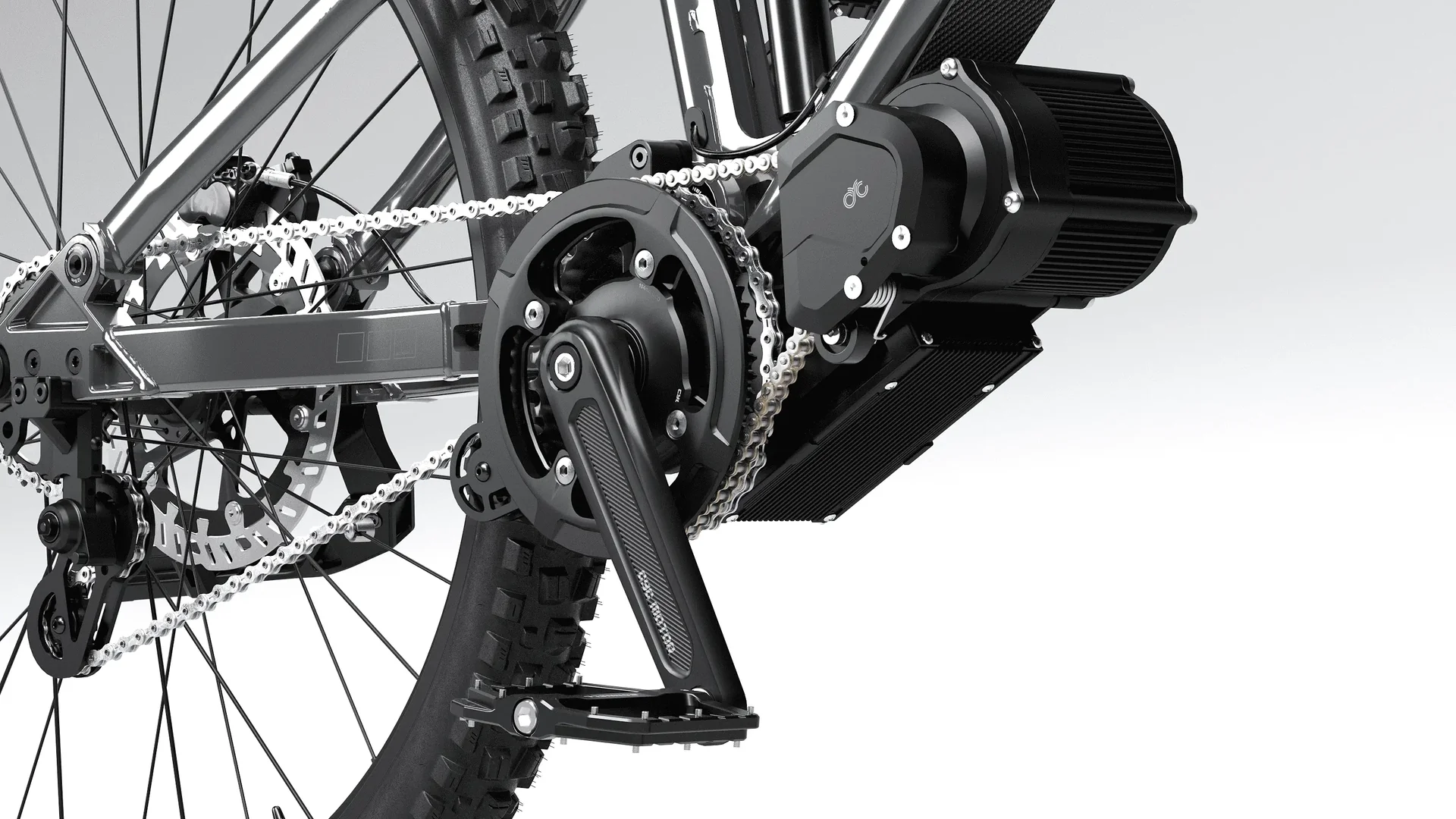

Maximum Power, Maximum Fun: The 775 MX Motor

Dial in your ride: cruise effortlessly with low power and pedal assist as an e-MTB, or ramp things up for impressive speed and performance as an e-Moto. With 6000 watts of power and 280 Nm of torque, it's built to smoothly transition from easy-going to high-adrenaline in a flash.

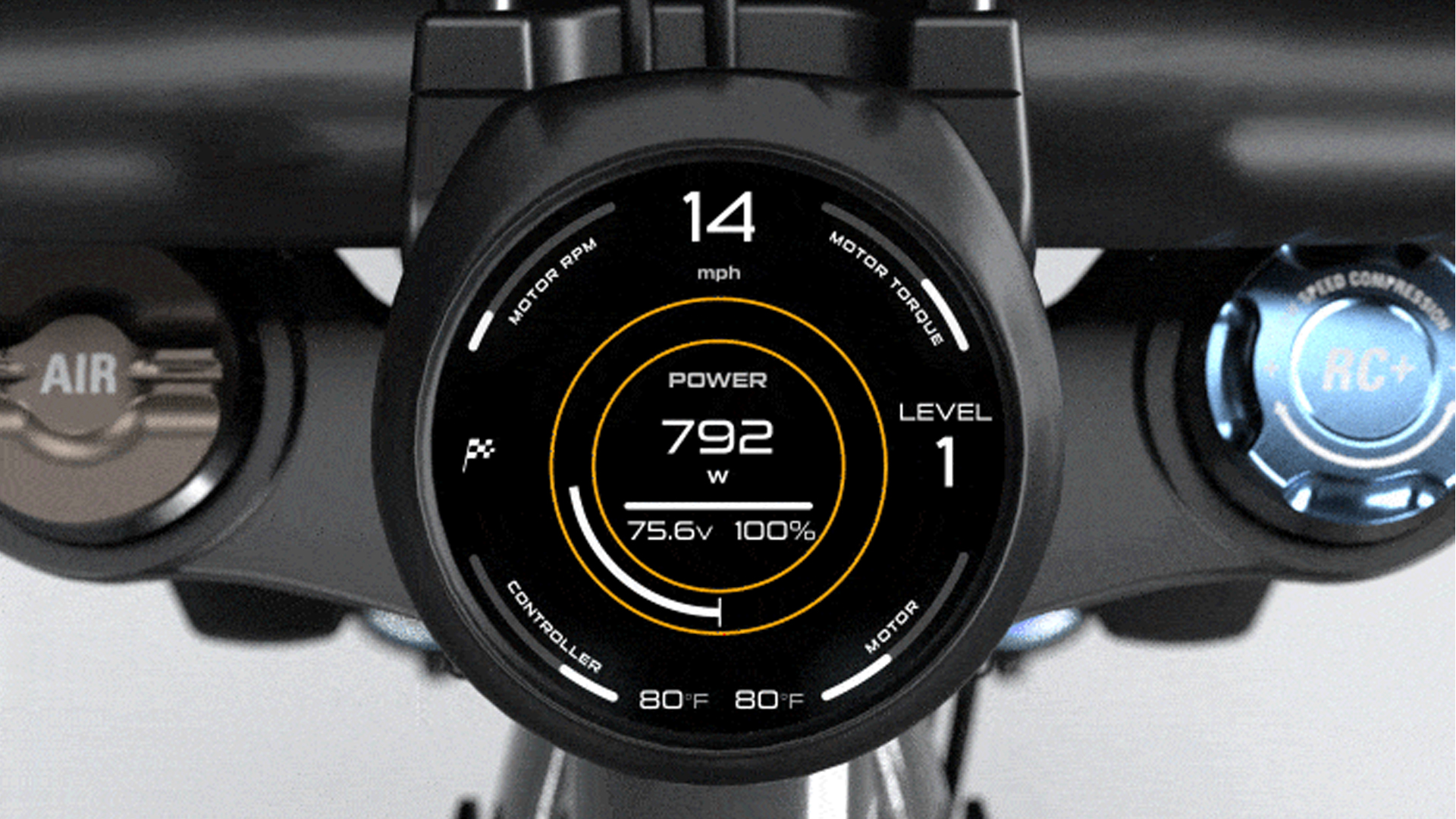

Elevate Your Ride: Intuition Display

Sleek, powerful, and ultra-responsive interface that puts control and real-time performance data within view.

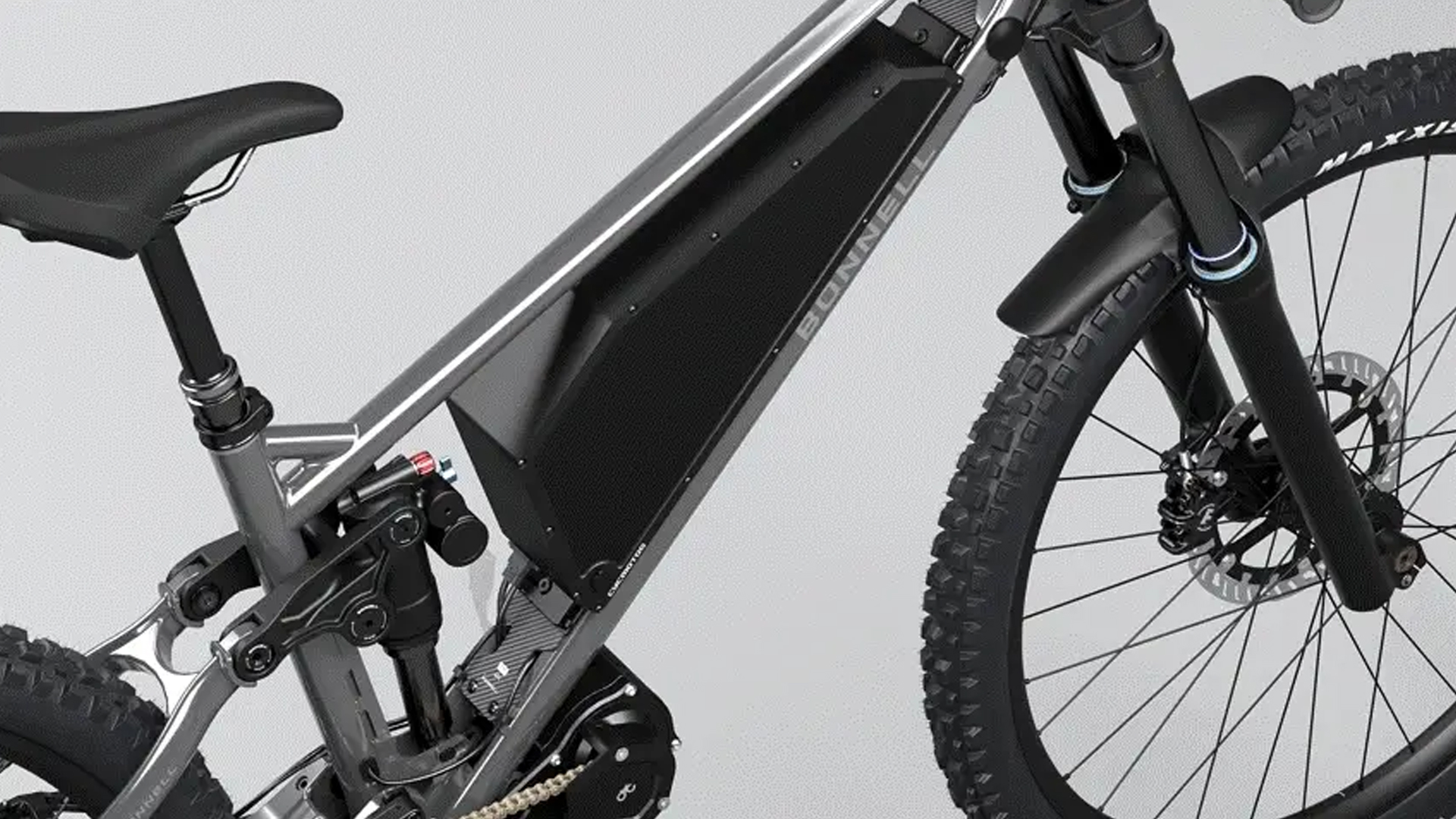

Power Packed: The MX Battery

Optimized to bring out the motor’s full potential, the A65-series battery offers the versatility to prioritize either maximum power or maximum range, adapting to your riding style. Built for endurance, the A65 series provides unmatched performance, making it the ideal choice for those who love to explore without limits.

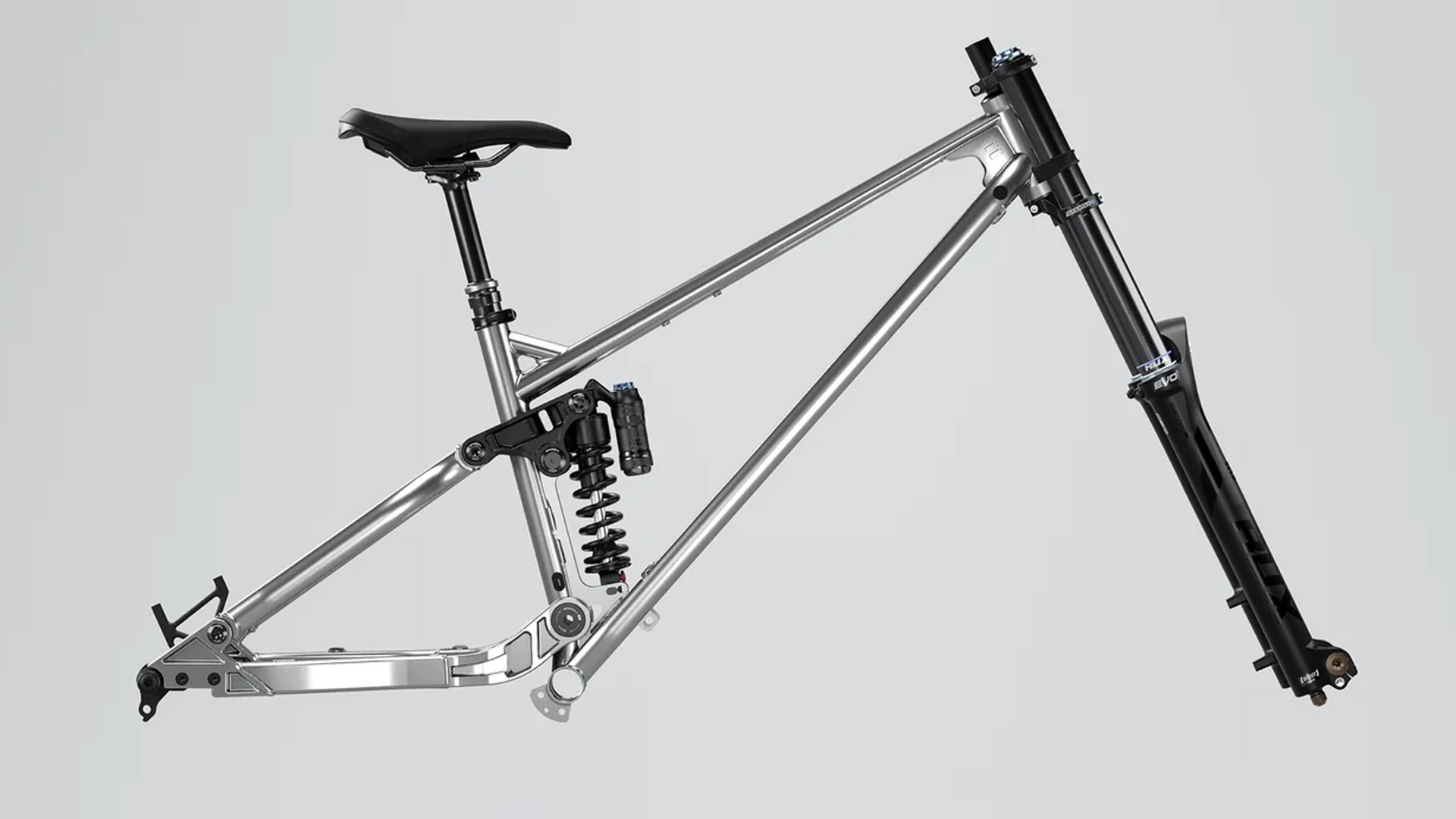

Engineered for Durability: The 775 Frame

The 775 MX boasts a rugged 4130 chromoly front triangle with an anti-rust ED coating for lasting durability, complemented by 6061 forged aluminum chainstays, adjustable dropouts, and sealed bearings that deliver smooth, reliable performance on tough trails. Paired with the Suntour Rux 38 RC+ fork and Suntour Voro Coil, this setup provides pro-level ride quality, with custom tuning that elevates both comfort and control—ready to adapt to any challenge.

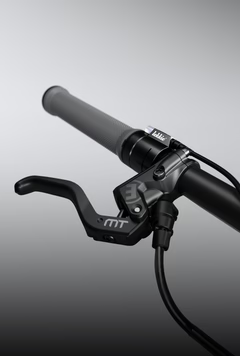

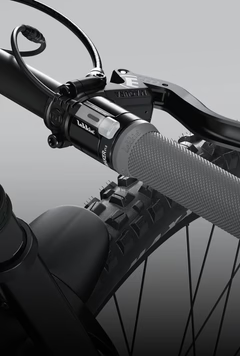

Lekkie Pacemaker Twist Throttle

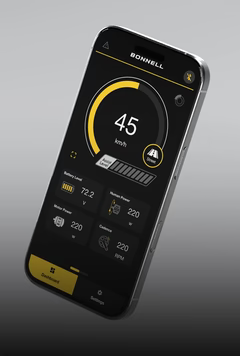

Bonnell Ride Control App

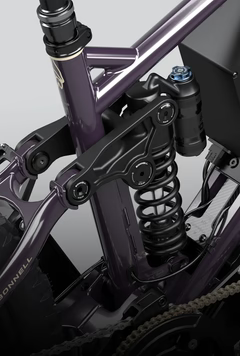

Suntour Voro Coil

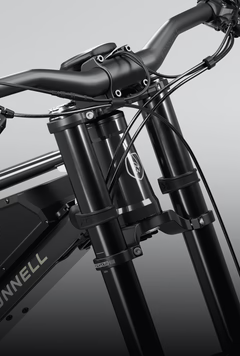

Suntour Rux 38 RC+

Magura MT5

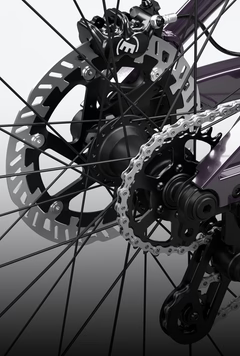

Custom Sprocket

General

Drive Unit: CYC X1 Pro
Chainring: CYC steel narrow-wide 38T
Bashguard: CYC heavy-duty 6061-T6 aluminum MTB bashguard

E-System

Battery: CYC A65 Series 1300Wh battery (approx. 17 lb / 7.6 kg)
Charger: CYC 5A charger
Display: CYC Intuition integrated smart display
Throttle: Lekkie Pacemaker full-twist throttle

Drivetrain

Rear Cogs: Single-speed 24T hardened steel narrow-wide sprocket
Chain Tensioner: Bonnell custom CNC chain tensioner with UDH mount, compatible with 22T–28T sprockets
Chain: KMC e1 EPT anti-rust chain
Chainguide: BONNELL upper adjustable chain guide with bottom roller, compatible with 32T–38T chainrings
Crank: CYC forged 155mm crankset for improved ground clearance and reduced pedal strikes

Brakes

Brakes: Magura MT5 4-piston brakes with MDR-P floating rotors (220mm front / 203mm rear), configured moto-style
Brake Levers: 2-finger lightweight aluminum lever blades with flip-flop design for standard or moto-style setup

Adjustment

Chainstay Length: Adjustable between 440mm and 452mm
Shock Mount Positions: Dual-position setup with Comfort and Sport modes

Wheels

Front Hub: Alexrims 20 × 110mm Boost 36H e-bike hub with sandblasted finish
Rear Hub: BONNELL single-speed sprag clutch hub, 12 × 148mm Boost, 36H, with symmetrical spoke flange design and 6-bolt rear sprocket mount
Rear Spokes: Reinforced 13G stainless steel spokes with upgraded lacing and nipples
Rims: Alexrims EMC 30 e-bike reinforced rims, 30mm internal width, tubeless-ready, 36H, sandblasted finish
Brake Mount Type: 6-bolt disc setup
Tire Size: 2.5" front and rear
Wheel Configuration: 29" front / 27.5" rear mullet setup
Front Tire: Maxxis Assegai DH casing, MaxxGrip compound, tubeless-ready, 2.5"
Rear Tire: Maxxis Assegai DH casing, MaxxGrip compound, tubeless-ready, 2.5"
Tubes: Maxxis Welter Weight 2.5" tubes
Rear Flat Protection: Tannus Armour insert pre-installed for flat resistance and rim protection

Components

Handlebar: Bonnell 780mm handlebar with 31.8mm clamp, 50mm rise, and 9° backsweep
Stem: Kalloy forged direct-mount stem, 44mm length, 31.8mm clamp, black stealth finish
Grips: Lekkie single lock-on grips with full-twist throttle and soft rubber construction
Saddle: Bonnell by Velo short-nose saddle with reinforced sides, chromoly rails, and integrated “I-carry” transport handle
Seat Clamp: Bonnell 34.9mm single-bolt seat clamp in black stealth finish
Seatpost: Tranz-X 30.9mm dropper post with 2-bolt saddle clamp and adjustable travel (140–170mm for M, 170–200mm for L/XL)
Seatpost Lever: Tranz-X GL 1x lever

Connectivity

Wheel Sensor: CYC Bluetooth speed sensor

Extra

Pedals: Bonnell aluminum flat pedals with 110 × 98mm platform, 17mm thickness, sealed bearing and bushing construction
Tubeless Valves: Two tubeless valves included
Multi Tool: Bonnell 13-function multi-tool
Shock Pump: Included

Safety Information

Ingestion Hazard Warning: This product contains a button cell or coin battery. Ingestion may cause serious injury or death due to internal chemical burns within as little as 2 hours. Keep new and used batteries out of reach of children and seek immediate medical attention if swallowed or inserted into the body.

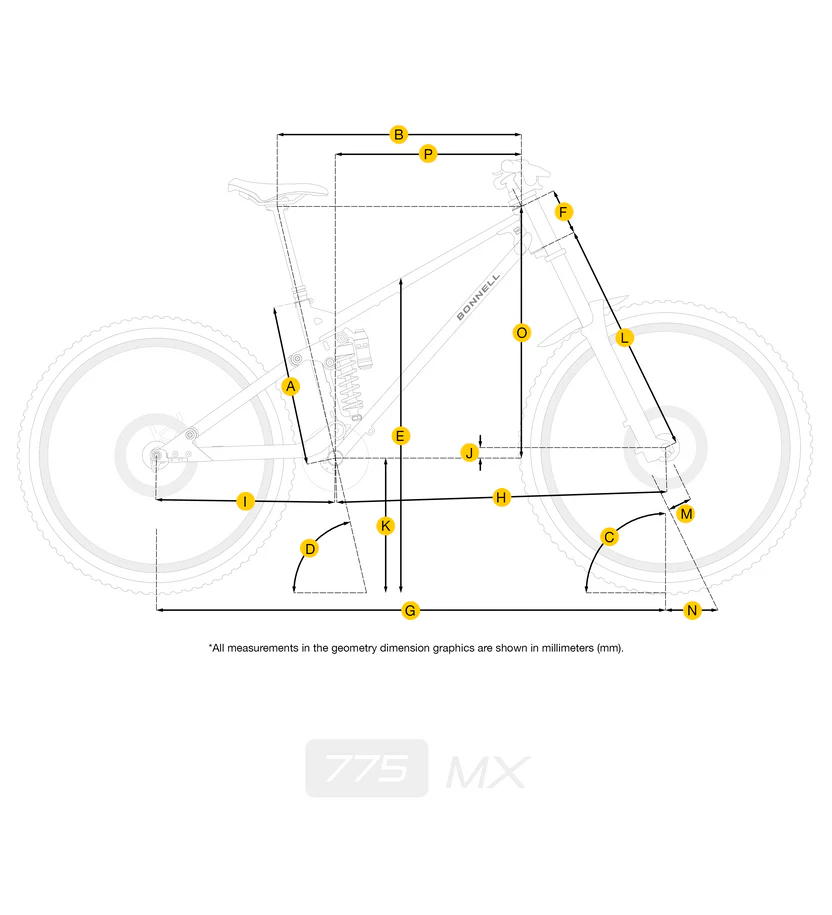

Basic Geometry

	Measurement	M	L	XL
A	Seat Tube Length	405	430	460
B	Top Tube Horizontal	621	645	676
C	Head Tube Angle °	62.7	62.7	62.7
D	Seat Tube Effective Angle °	75.1	75.5	75.6
E	Standover	816	830	835
F	Head Tube Length	117	127	137
G	Wheelbase	1277	1316	1348
H	Front Center	837	864	896
I	Chain Stay Length	440	452	452
J	Bottom Bracket Drop	15	15	15
K	Bottom Bracket Height	355	355	355
L	Fork Axle to Crown	615	615	615
M	Fork Rake	50	50	50
N	Trail	134	134	134
O	Stack	646	655	665
P	Reach	455	478	505

What's in the box

The 775 MX: A New Breed - minimal assembly required.

Battery & Charger: Power up your ride with the included high-capacity battery and charger.
Multi-Tool Kit: Compact but powerful, this kit has everything you need for quick adjustments on the go.
Shock Pump: Easily set and fine-tune your suspension for smooth, epic rides every time.

Production Variations

We aim to ensure complete accuracy in our technical specifications. However, these specifications may change without prior notice. Any differences between the listed information and the actual product specifications do not entitle customers to request changes, modifications, or exchanges for products affected by such variations. For additional information, please feel free to contact our Bonnell Service Team.
