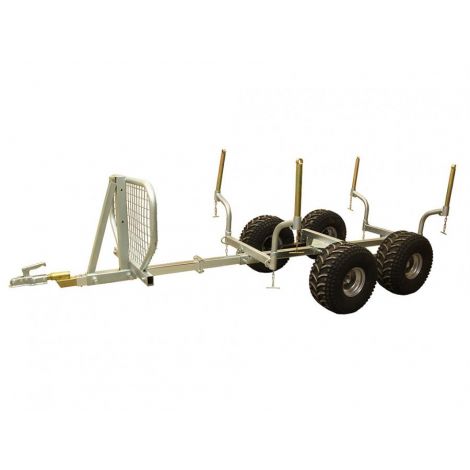

Eco Timber Trailer Combo 1000
-
Brand: ECO
-
Material: Steel
-
Surface: Zn galvanized
-
Capacity: 1000 kg
-
Tyres: 22 x 12 - 8'
-
Weight: 170 kg
-
Product dimensions: 3000 x 1300 x 950 mm
-
Packed dimensions: 1150 x 950 x 690 mm
Description
A multifunctional trailer for transporting logs, with additional accessories the trailer may also be used as a road scraper, boat trailer, water container or other goods carrier. A tandem axle and wide off-road tyres ensure good off-road passage allowing access to places often not accessible by larger vehicles.
Features
-
Tandem axle with 4 wheels.
-
360-degree rotating hitch coupling.
-
Adjustable trailer carriage length (up to 3 m/118 in).
-
Rotatable and removable log bolsters
-
A load capacity of 1000 kg
-
Off-road Tires 22x12-8”
-
Strong steel frame structure.
-
Adjustable trailer main tube length (coupling tube length).
-
Complete user guide & safety instructions included.
-
* packed as 2 packing units: 2150 x 60 x 60 mm & 1150 x 950 x 690 mm (steel crate)
-
Tandem axle with four wheels
Optional Accessories
Crane
-
Lifting capacity 150kg
-
Adjustable boom height
-
Adjustable support leg
-
Strong steel frame structure.
-
Crane (variable length 1200 - 2200 mm) is for pulling the logs on or lifting the optional cargo box or road grader.
-
Adjustable support legs on the crane.
-
Adjustable length on crane boom.
-
Adjustable height on crane boom.
-
Lift capacity up to 175 kg/385 lbs (depending on the crane length and position)
-
Optional winch kits for crane available (not included): manual winch p/n
-
OT.13.01.010 or electric winch kit p/n 06.000
-
Complete user guide and safety instructions included.
Cargo Box
-
Dimensions 1950x1000x550mm
-
Removable front and rear hatches
Road Grader
-
Using the crane to adjust transport and working positions.
-
Working width 1500mm
-
Complete user guide & safety instructions included.
-
Grader for gravel or sand driveways and fields.
-
Fast and simple installation
-
Strong steel construction
-
Replaceable, toothed blades
Boat Carrier
-
Adjustable roller frame for towing a boat up to 4.5 meters.
-
Comes with a hand winch for loading
-
Boat carrier for up to 4.5 m boat trailering.
-
The boat carrier comes with a manual winch (maxi load 725 kg/1598 lb) with a 10 m/32.8 ft cable.
-
Front support with winch carrier.
-
Adjustable side supports.
Water Tank Carrier
-
Carrier frame for a standard 1000L (275gal) IBC container. Spray bar with piping for road watering included
-
Extrusion blow-moulded HDPE.
-
Welded tubular steel grid, galvanized.
-
Integrated butterfly valve DN 50.
-
The bottom plate is made of steel to provide stability and to facilitate minimum residual contents from the inner container.
Log Support
-
Crane boom-mounted support frame to facilitate log loading
Log Bolsters
-
Additional pair of log bolsters for shorter log transport
Support leg
-
Adjustable support leg
-
Capacity 300kg
-
Side supports come with a crane option, tow bar support leg available as p/n 61.3000
Accessories Box
-
The kit consists of a luggage container and a universal chainsaw holder.
-
The container is constructed to fit the Husqvarna 6L fuel canister and 5L chain oil canister.
-
Accessory box with a chain saw holder, mounted on the log guard grille
-
The chainsaw holder is made out of plastic with dimensions to fit different bar-length chainsaws. Fits the chainsaw bars max 95 x 10 mm size.
-
The container can be fitted on both (left & right) sides of the crane, fitted to a protective net.
-
Two containers can be fitted together on the same trailer.
-
The container is constructed to fit on Combo or IB timber trailers but could also be fitted to other applications - other trailers, cargo boxes etc.
-
Mounting hardware and installation manual included.
Lifting Tongs/Log Grapple
-
Lifting tongs for moving logs up to
-
350mm in diameter
Hand Winch
-
Load capacity 725kg
-
Steel wire 5mm x 10m
Electric Winch
-
Load capacity 1134kg
-
Synthetic rope 5mm x 10m
1000kg load capacity multi-functional timber trailer with several optional add-ons for a wide variety of works and uses.
