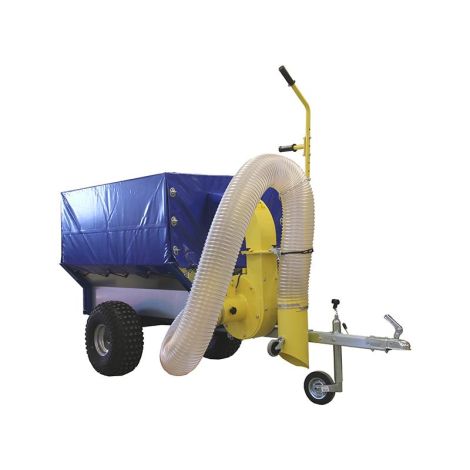

Iron Baltic Leaf Vacuum Trailer

Description

The leaf vacuum trailer is for personal, domestic use or public, communal service providers to clean and maintain the yards, parks, squares and roads from leaves, to collect grass, litter etc. The equipment allows quick and easy cleaning of large areas by collecting the leaves or mowed grass into the trailer’s cargo box and transporting them to the desired location for unloading.

The leaf vacuum is equipped with a reliable 6hp Briggs & Stratton engine that is used to run a durable turbine 4-blade impeller made from Hardox 400 steel, with a productivity of 70m3/h. The product is equipped with a suction tube with a diameter of 180mm and a length of 3.5m, with a light and convenient wheeled nozzle.

The product set consists of the BASIC 500 (61.1000) modified trailer and the leaf vacuum module (81.2500) attached to it. The leaf vacuum module (vacuum, load surface grille, PVC cover) is easy to install onto the trailer and can easily be removed for the off-season period so that the trailer may be used for other purposes as well if desired.

The product kit consists of the parts below:

• 61.1000 Trailer IB Basic 500

• 81.2500 Leaf vacuum attachment

A leaf vacuum trailer is to be used for clearing the streets, yards, parks or fields from fallen leaves or collecting cut grass, garbage/litter and so on.

It's a quick and easy way to clean larger areas by collecting the fallen leaves or cutting grass into a trailer cargo box and transporting the load to a suitable place to empty it by tilting the cargo box.

Features

• Leaf vacuum attached to a Basic 500 trailer

• Vacuum turbine impeller made out of wear-resistant HARDOX steel with

• 360mm diameter and 100mm width. 70m3/h

• Easy to fit on or remove the attachment from the trailer, so the trailer could be used as a normal trailer during the off-season.

• Flexible suction tube with 180mm diameter and 3500mm length.

• Suction tube materials are resistant to oils and biological acids (fluids from cut grass and fallen leaves).

• Light and easy-to-use hand nozzle, with a wheel.

• Durable PVC cover for the trailer.

• Adjustable support wheel (300kg load capacity) for the trailer.

• Detailed assembly and user manual included.

• Cargo box capacity 1.2m3

• Load capacity 500kg

• Engine 6hp Briggs & Stratton

• Off-road tires 22x11-8”

• Flexible suction tube diameter 180mm/length 3.5m

• Oils and biological acids-resistant suction tube materials

• Tiltable cargo box

• Removable PVC cover and hatches

• Adjustable support leg
