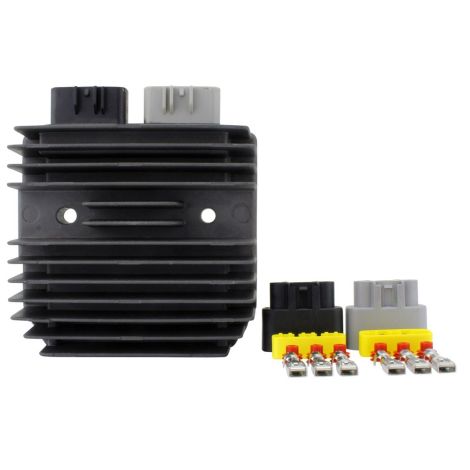

Kimpex HD ATV Can-am Mosfet Voltage Regulator Rectifier
Width (mm): 120
Length (mm): 110
Height (mm): 37
Number of connectors: 2
Number of terminals: 5
MM between fixation holes: 69
Stop burning your regulator rectifier! It is time to update or replace your voltage regulator with the advanced Mosfet type.
It runs cooler than all OEM diode-style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
- Direct replacement to your original unit
- No assembly required
- Higher-grade electric components
- Improved heat sink and charging capabilities
- The quality exceeds the OEM equipment
- All products shipped are tested
- One-year limited warranty
Why use Mosfet Enhanced technology?
Runs cooler: Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas: Less load on the stator, less work, less fuel is used and you save.
Regulated energy: The power charging your battery is steadier and smooth.
Extended battery life: Extends the battery’s life and cold cranking capacity.
More engine power: Removes stator load resulting in more engine power.
Optimized power: Optimize power delivery by switching the stator coils on or off.
Part Number :
- Catalog number: 225891
OEM numbers :
- 31600-HL4-A01
- 710005568
- 710005842
