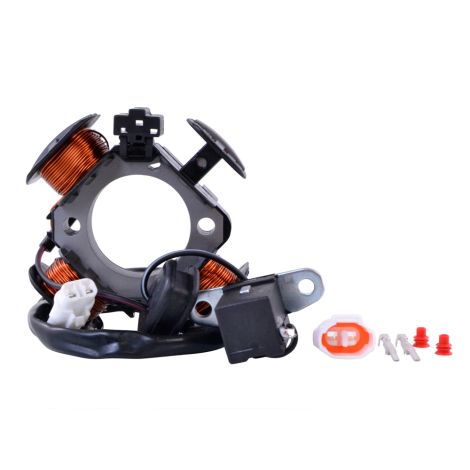

Kimpex HD ATV Suzuki Stator
-
Internal Diameter (mm): 36
-
External Diameter (mm): 84
-
Thickness (mm): 12
-
Number of wires: 2
-
Number of connectors: 2
-
Number of terminals: 2
-
Notes: 4-Poles Stator, The opposite connector is included (main harness side), Includes: Rubber grommet,
-
Includes: Connectors, Includes: Pick up pulsar
Features:
-
Direct replacement to your original unit
-
Plug-and-play, direct fit, easy installation
-
Highest-grade lamination materials
-
Highest-grade copper windings, resistant to 200 degrees Celsius
-
Connector included
-
Rubber grommet included
-
All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Part number:
-
Catalog number:225632
-
OEM number: 32101-43G00, 32101-08H00
