Portable Winch Stainless Steel Plates Double Swing Side Pulley

Description:

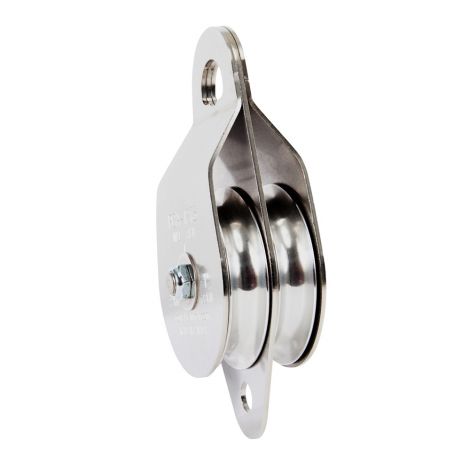

This stainless steel swing side snatch block features two lightweight 100 mm diameter deep groove aluminum sheaves, with stainless steel plates that swing open to install rope. Sintered bronze bushings on stainless steel shaft provides 98% efficiency.

The middle plate has a hole at the bottom, allowing you to attach the end of the rope with a carabiner when necessary.

Use the 70 kN steel locking carabiner (PCA-1701) to anchor the snatch block to a polyester sling.

When you use this pulley with a PCA-1274 pulley, you can quadruple the pulling power of the winches. With two double pulleys, an amazing 5 tons of force can be exerted on a load (using the PCW5000)!

Material : Sides: Stainless steel. Sheaves: Aluminum

Rope

• Minimum diameter (metric) : 6 mm

• Maximum diameter (metric) : 12 mm

Part number:

• Supplier number: PCA-1273

• Catalog number: 078261
