Rammy Brush Cutter 120
- Rammy Brush cutter 120 ATV PROFESSIONAL is agile and powerful brush cutter / clearing saw for ATVs. It cuts grass, hay, willow bushes and even trees up to width of 10 cm (4 inch)!
- Thanks to it’s protective roll, clearing saw can be driven against the ground. Roll keeps blades in safety from unwanted obstacles.
- It is possible to move the brush cutter 32cm left or right, if it is fitted with SIDE SHIFT KIT (included in standard package).
- With the adjustable frame, this Rammy is suitable for almost all 4×4 ATV-s. If the CENTER MOUNTING KIT is on the bottom of your ATV, Rammy can be used with existing fasteners.
- If you need these (not included in the standard delivery), we and our dealers have CENTER MOUNTING KITS.
- The Rammy can also be attached with a LOCK HOOK 16-19-20 mm. (optional). Like Can-am, Arctic Cat, Polaris or Click&Go2.

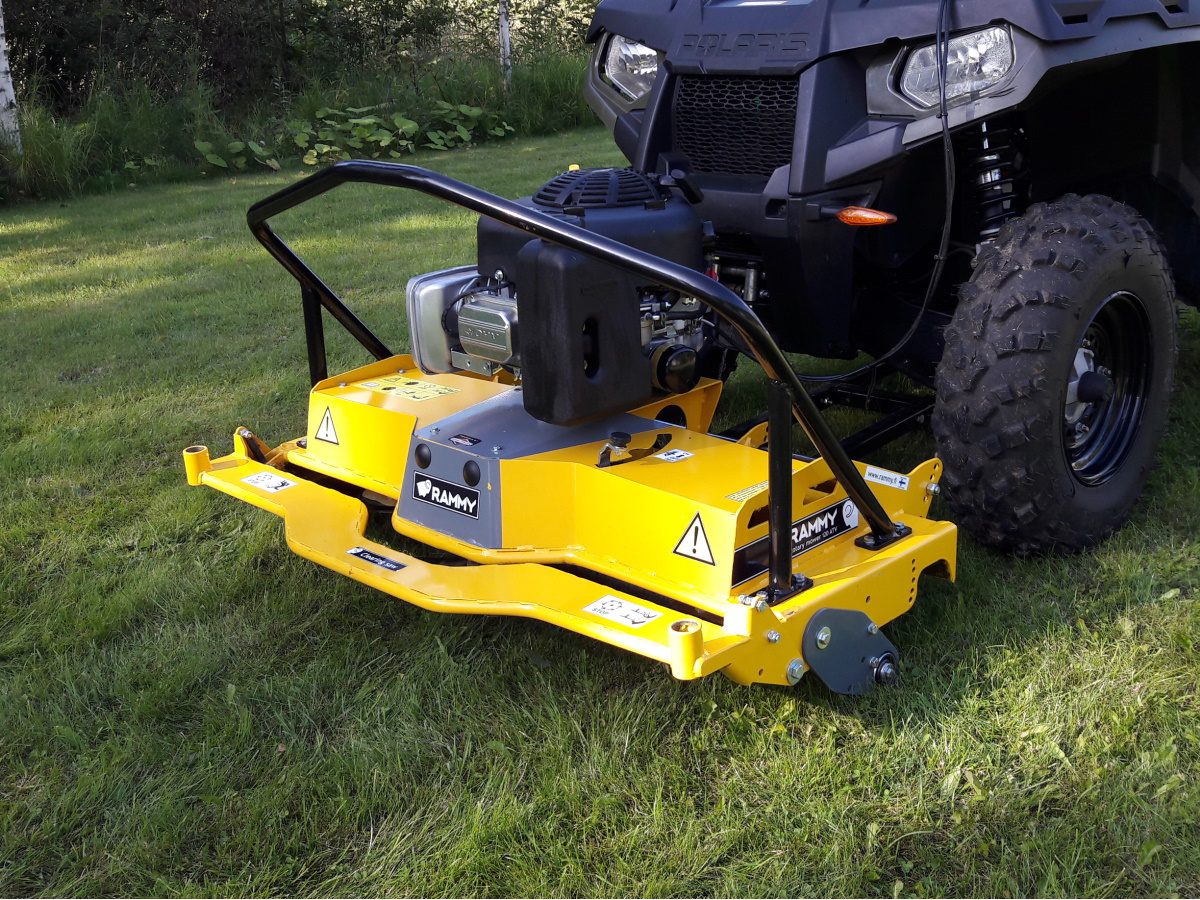

Front-mount Brush cutter
The Rammy is positioned in front of the ATV, so visibility and manoeuvrability are excellent. Cutting height adjustable from 2 to 7 cm with lower roller. With the winch 7-30 cm.

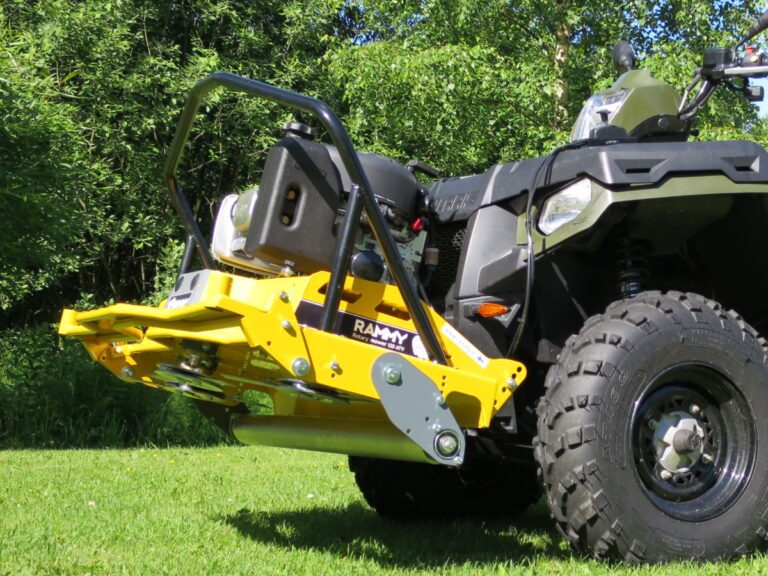

Lightweight and compact
Rammy is lifted with the ATV's winch. The cutter is attached to the ATV with two locking pins, to the centre mounting kit, like the snow plate (centre mounting kit, behind the front axle underneath the ATV).

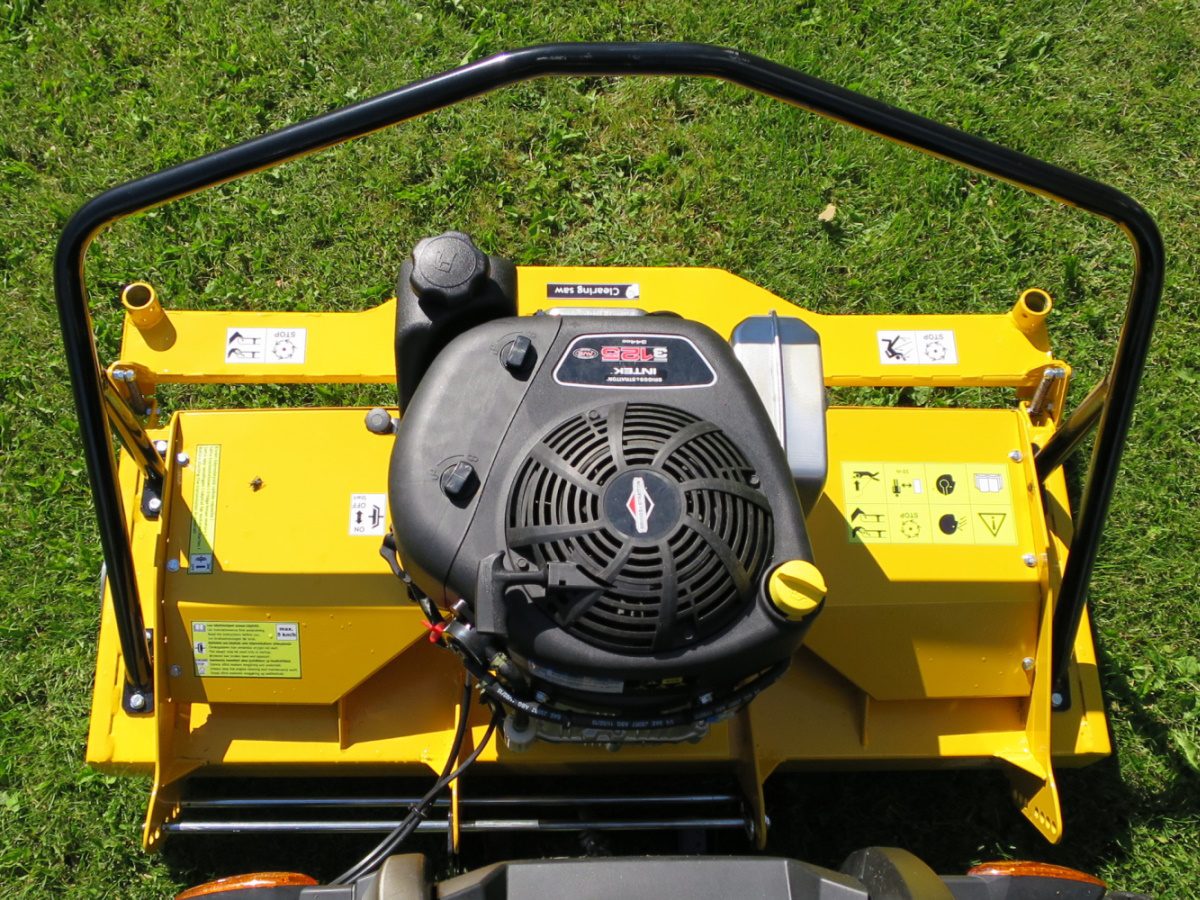

Briggs & Stratton engine
The B&S 344 cm3 engine and the maintenance-free transmission make the Brush cutter an efficient and reliable machine.

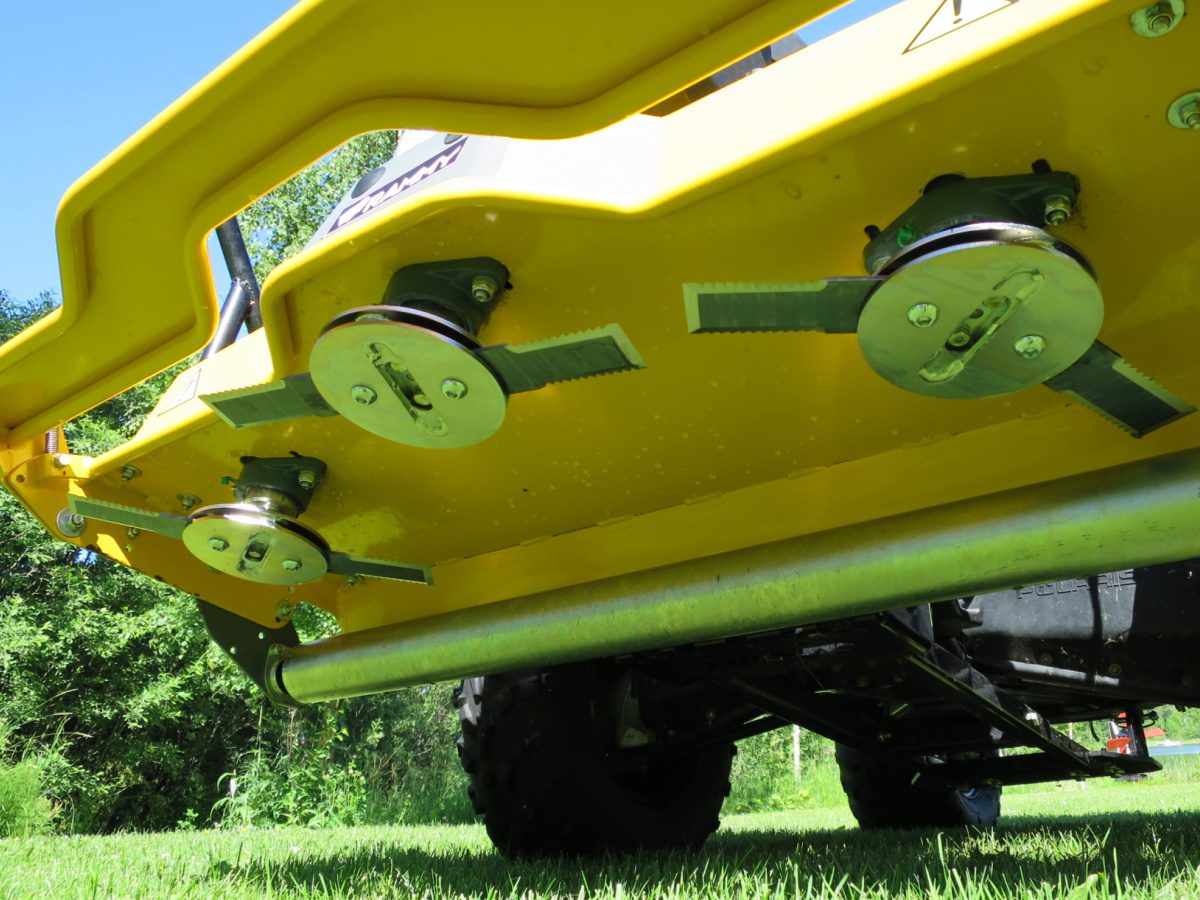

Blades for multiple use
6 pieces of blades, rotating horizontally 4000 r/min. Hinged to fold, reduces wear and damage if hitting on small obstacles. Capacity up to 0-10 cm (4 inch) trees

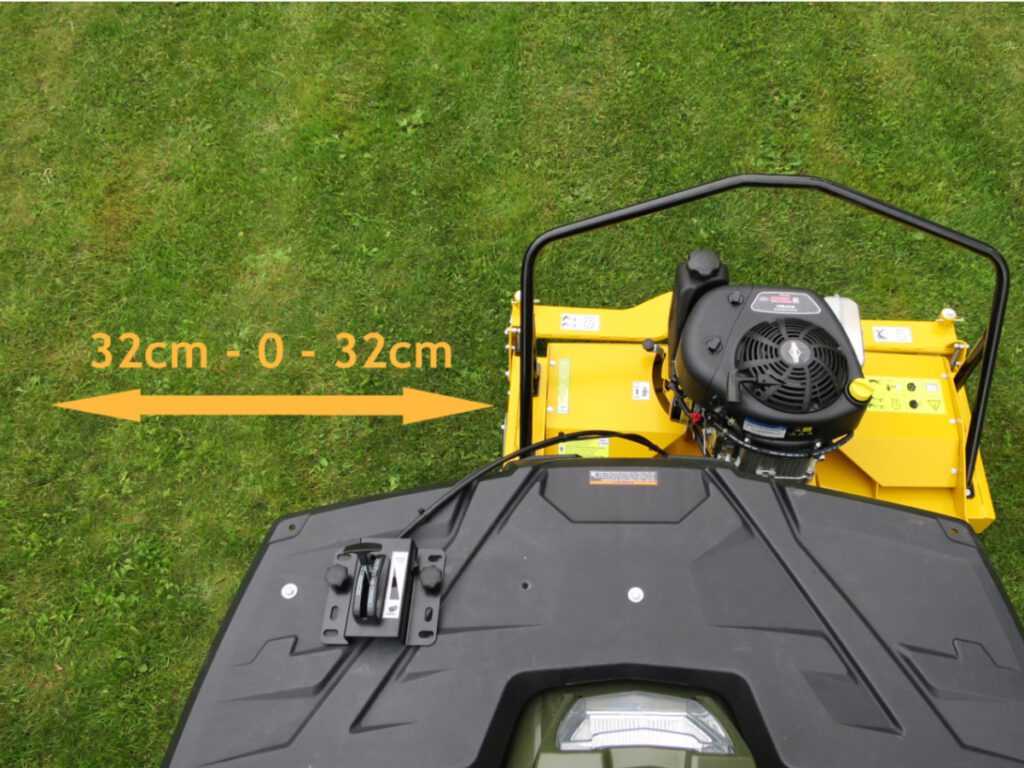

More possibilities with the sideshift kit
Brush cutter is fitted with a sideshift kit (included), so it can be moved 32 cm left or right.

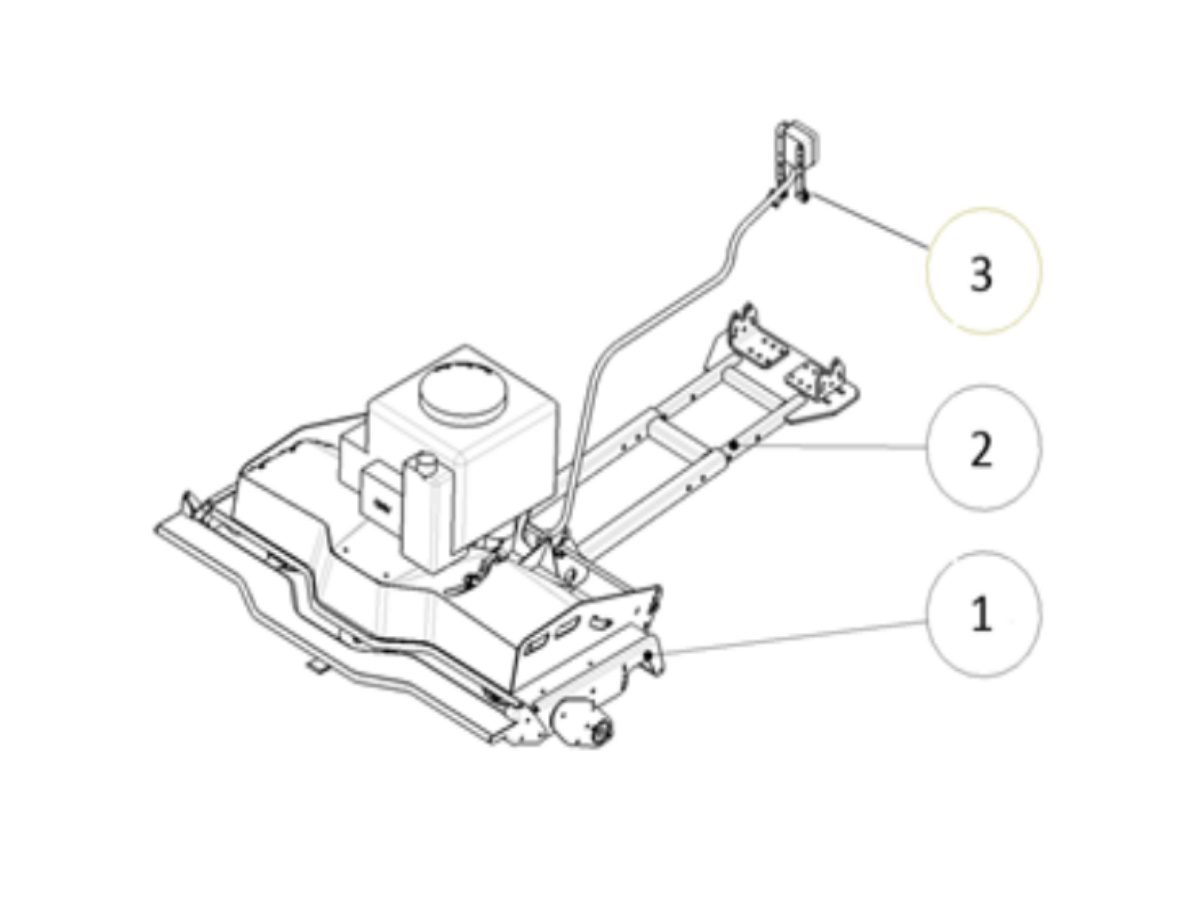

Ready-to-use-package
1. cutter and blades, 2. adjustable accessory frame, 3. remote control. Every unit has been test-driven and inspected. Engine has oil ready in.
Technical Information:
Width: 1,2 m. Cutting width 1,15 m.
Length: 0,7 m
Weight: Cutter 90 kg
Auxiliary device frame: 25 kg
Cutting/working principle: 6 pieces of blades, rotating horizontally 4000 r/min. Hinged to fold, reduces wear and damage if hitting on small obstacles.
Cutting height: Adjustable from 2 to 7 cm with lower roller. On the winch 730 cm (depends on the front suspension and ground clearance of the ATV)
Engine: Brigss&Stratton Series 3 Intek 344 cm3. Torque 25 Nm.
Fueltank: 2,7 L.
Start: Easy pull start
Consumption: 1,5…2 L/h
Attachment on ATV: Mount brackets with holes on dozer blade on ATV, hole Ø10mm adjustable width of mount bracket 240500mm (outer dimension) and the adjustable length is 7501250mm.
Lift/decline: Winch of ATV
Remote control: OnOff
Standard equipment
- Adjustable accessory frame
- Adjustable roller
- Remote control
- Sharp hardened blades
- Perimeter protection on front
- Protection buffer (pivoting)
Optional equipment
- Lock hooks 161920 mm
- EU price 70 € (VAT 25,5%). Out of EU 55,77€ (VAT 0%) + customs duty.
Capacity
- 010 cm (4 inch) trees
- Hay, grass, willow, bush.
- Work speed round 5 km/h
