Rammy ATV Thrower Plow
-
The Rammy Flail mower 120 ATV is an agile mower for cutting hay, meadow grass and small trees.
-
With Rammy’s front cutter you can cut grass on lawns, meadows and roadsides, efficiently and effortlessly. The Flail mower has its own engine.
-
It is possible to move the cutter 37 cm to the left, if it is fitted with a SIDE SHIFT KIT. (optional).
-
With the adjustable frame, this Rammy is suitable for almost all 4×4 ATV-s. If the CENTER MOUNTING KIT is on the bottom of your ATV, Rammy can be used with existing fasteners.
-
If you need these (not included in the standard delivery), we have CENTER MOUNTING KITS.
-
The Rammy can also be attached with a LOCK HOOK 16-19-20 mm. (optional). Like Can-am, Arctic Cat, Polaris or Click&Go2.

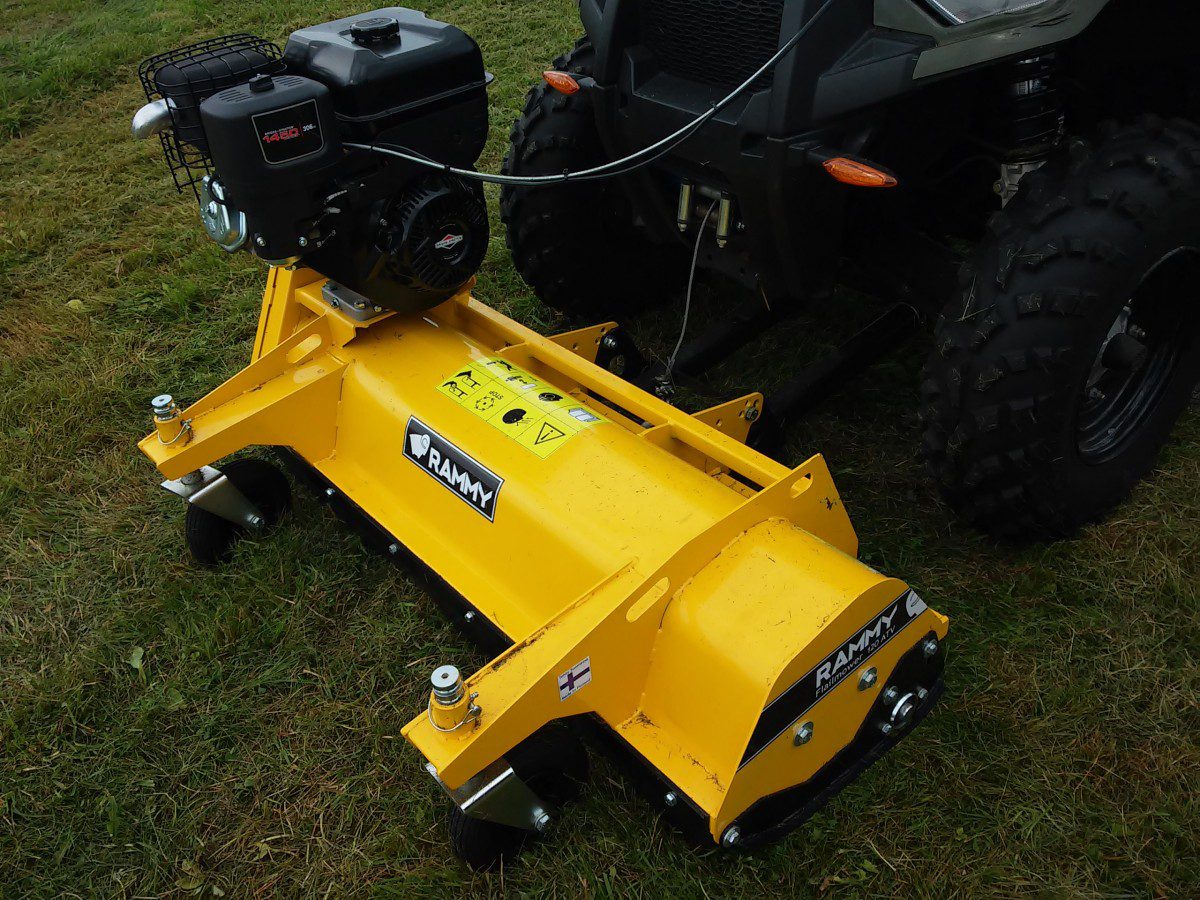

Effortless Front-Mounted Operation
Experience superior control and visibility with the Rammy's innovative front-mounted design. Achieve precise cutting heights from 2-10 cm using the integrated front wheels and rear roller, with even greater flexibility achievable via a winch system.

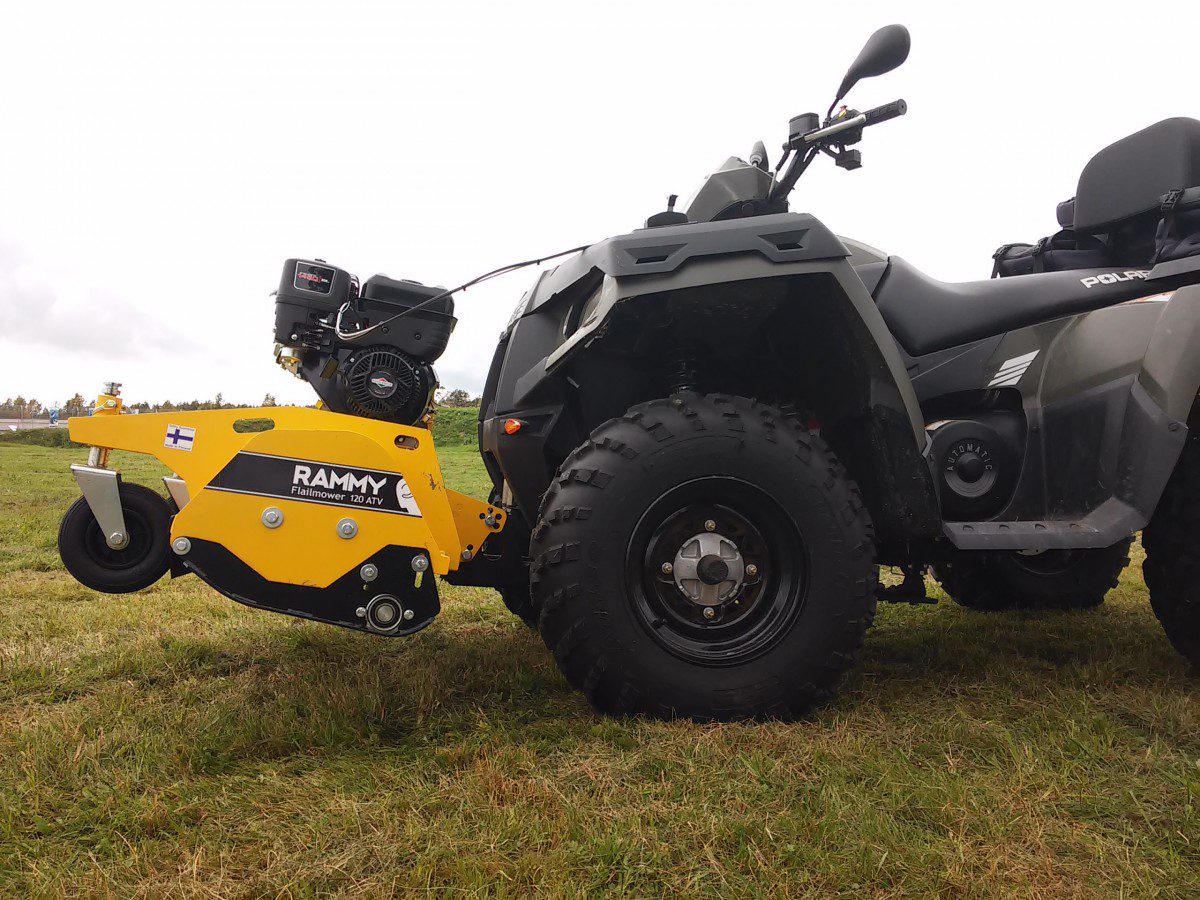

Streamlined and Portable Design
The Rammy's lightweight construction allows for easy lifting with your ATV's winch. Its intuitive attachment system utilizes two locking pins connecting to the central mounting kit, seamlessly integrating with accessories like the snow plate (sold separately).

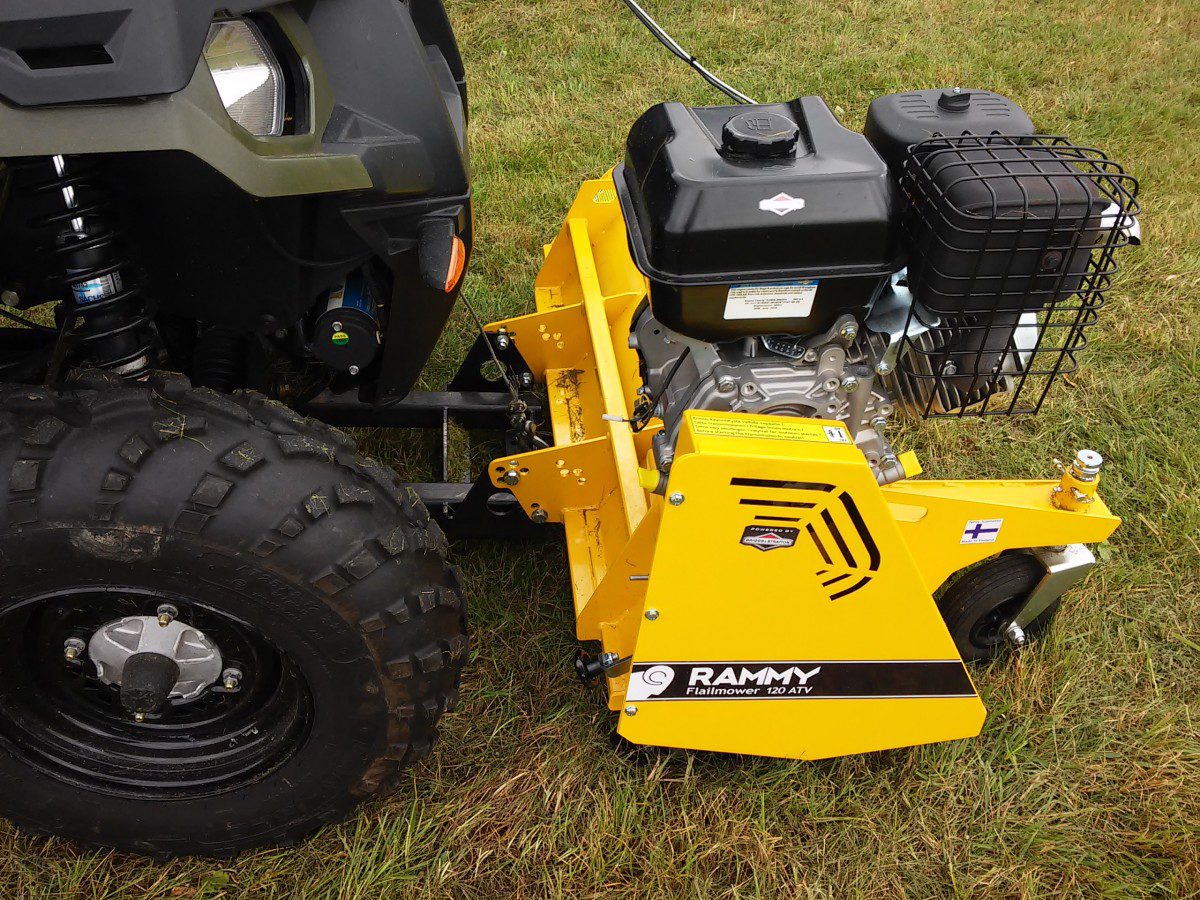

Robust Briggs & Stratton Power
Equipped with a powerful 306 cm3 Briggs & Stratton engine and a maintenance-free double belt transmission, the Rammy flail mower delivers efficient and dependable performance for any task.

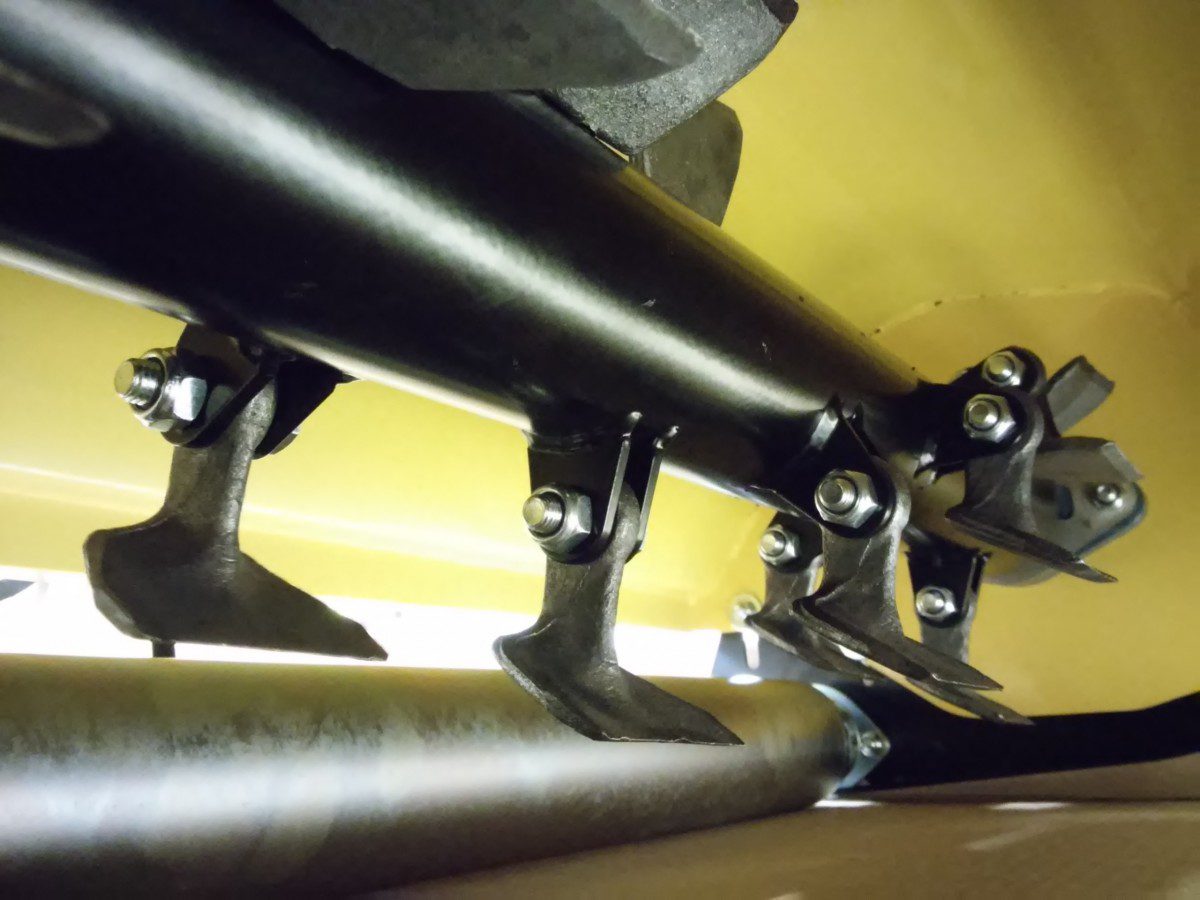

Versatile Blade Selection
The standard Rammy comes equipped with Y-blades for robust performance in general use. Enhance your cutting results with optional hammer blades, perfect for achieving a fine finish.

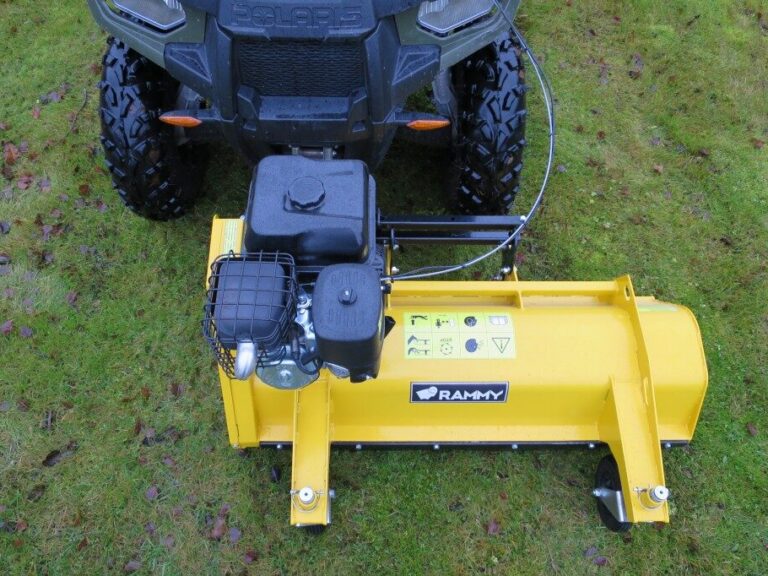

Expanded Reach with Sideshift Kit
Unlock greater operational flexibility with the optional sideshift kit. This feature allows the cutter to be precisely maneuvered 37 cm to the left during operation, offering enhanced coverage and control.

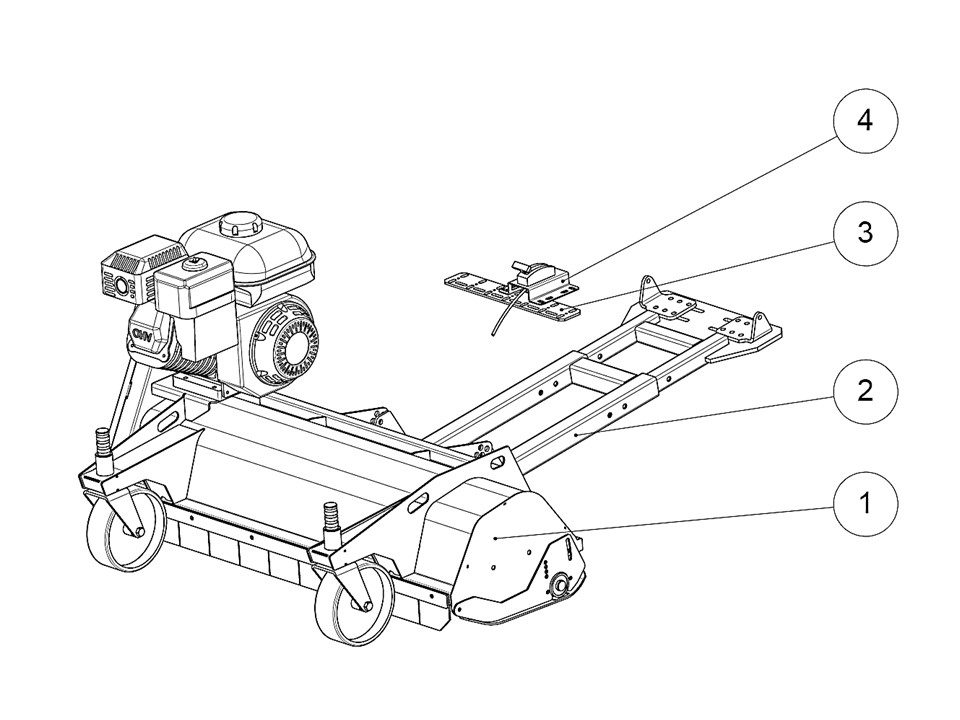

Complete Ready-to-Go Package
Your Rammy flail mower arrives as a comprehensive, ready-to-use package, including the mower itself, an adjustable accessory frame, mounting plate, and remote control. Each unit undergoes rigorous testing and inspection to ensure optimal performance from the start.
Specifications at a Glance:
Overall Dimensions: 120 cm Width, 79 cm Length
Effective Cutting Width: 100 cm
Weight: Mower 95 kg, Auxiliary Frame 25 kg
Engine Powerplant: Briggs & Stratton 1450 Series, 306 cm3, 9 hp 4-stroke
Drive System: Dual belt transmission with neutral position clutch.
Blade Configuration: Standard Y-blades for general tasks; optional hammer blades for a refined cut. Drum rotation speed: 3000 rpm.
Cutting Height Adjustment: 20–100 mm via wheel adjustment. Additional height control available with winch.
ATV Mounting System: Designed for dozer blade mounting brackets (Ø10mm holes). Adjustable bracket width (8mm thickness) from 240-500mm (outer dimension) and adjustable length from 750-1250mm. Refer to standard mounting guidelines. Optional lock hook mounting available for Arctic Cat, Can-am, Click&Go, and Polaris (16-19-20 mm).
Lifting Mechanism: ATV winch operation
Package Inclusions: Flail mower, auxiliary device frame, remote control, comprehensive operating manual, and spare parts catalogue.
Shipping Dimensions: 80x120x100 cm.
Shipping Weight: 130 kg.
Warranty Coverage: 2 years
