Segway AT5 Braking System Four
CA$0.91
In stock
SKU
Segway AT5 Braking System Four
Segway AT5 Braking System Four Parts:
| No. | Part Number | Part Name |
| 1 | A11-E110000-000-01 | Brake Assy(Eu,four) |
| 2 | S05E15C50001 | Brake Pad Clip |
| 3 | A10-E111200-000-00 | Front Brake Pad |
| 4 | S05E15C60001 | Brake Pad Clip A |
| 5 | A10-E112100-000-00 | Fr Brake Caliper |
| 6 | A10-E112000-000-00 | Fr Brake Assy |
| 7 | A03E10001001 | Front Brake Disc |
| 8 | A03E10004001 | Brake Rotor Bolt |
| 9 | GBT005789006 | Hexagon Flange Bolt M6×12 |
| 10 | A03E11012001 | Gasket |
| 11 | A03E11011001 | Oil Bolt |
| 12 | GBT005789026 | Bolt M10×1.25×25 |
| 13 | A10-E110200-000-00 | Front Right Brake Oil Pipe |
| 14 | A10-E110100-000-00 | Front Left Brake Oil Pipe |
| 15 | A03E11005001 | Brake Switch |
| 16 | A10-E111100-000-00 | Fl Brake Caliper |
| 17 | A10-E111000-000-00 | Fl Brake Assy |
| 18 | A03E11600001 | Hydraulic Distribution Valve |
| 19 | A10-E118000-000-00 | Brake Oil Cup |
| 20 | A03E11803001 | Clamp, oil Cup Pipe |
| 21 | A10-E118010-000-00 | Oil Cup Pipe A |
| 22 | A10-E118020-000-00 | Oil Cup Pipe A |
| 23 | T05000001004 | Positioning Tie Φ7×180 |
| 24 | A03E11804001 | Foot Brake Main Pump Tube Clip |
| 25 | A10-E110500-000-00 | Handbrake Oil Tube |
| 26 | A03-E117000-000-01 | Handbrake Pump |
| 27 | GB0000896005 | Open Retainer Ring 12 |
| 28 | GBT000971007 | A- Washer 14 |
| 29 | A03E12201001 | Nylon Bushing |
| 30 | A10-E121100-DB0-00 | Brake Padel |
| 31 | A10-E100001-DB0-00 | Brake Main Pump Guard |
| 32 | GBT005789016 | Hexagon Flange Bolt M8×25 |
| 33 | A10-E115000-000-01 | Foot Brake Main Pump |
| 34 | A10-E110300-000-00 | Front Brake Pipe |
| 35 | T05000001003 | Wire Clip |
| 36 | A11-E110400-000-00 | Rear Brake Pipe |
| 37 | GBT000701010 | Hexagon Socket Head Screw M6×16 |
| 38 | A10-E114000-000-00 | Rr Caliper Brake |
| 39 | A10-E113100-000-00 | Rear Brake Pad |
| 40 | A03E11400001 | Rr Brake Assy |
| 41 | A03E11310001 | Rl Caliper Brake |
| 42 | A10-E113000-000-00 | Rl Brake Assy |

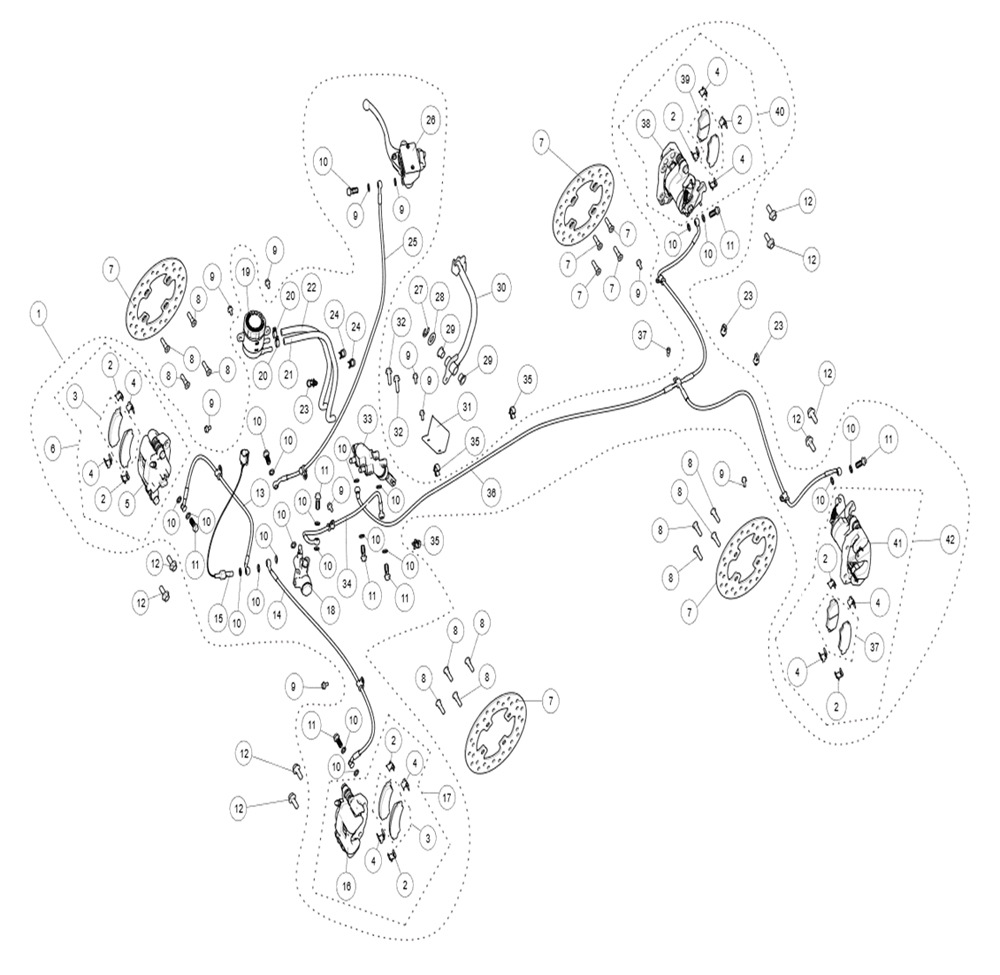

Segway AT5 Braking System Four Diagram:
