Segway AT5 Braking System Three
Segway AT5 Braking System Three Parts:
| No. | Part Number | Part Name |
| 1 | A11-E110000-000-02 | Brake Assy(Eu,three) |
| 2 | S05E15C50001 | Brake Pad Clip |
| 3 | S05E15C60001 | Brake Pad Clip A |
| 4 | A10-E112100-000-00 | Fr Caliper Brake |
| 5 | A10-E112000-000-00 | Fr Brake Assy |
| 6 | A03E10004001 | Brake Rotor Bolt |
| 7 | GBT005789006 | Hexagon Flange Bolt M6×12 |
| 8 | A03E11012001 | Gasket |
| 9 | A03E11011001 | Oil Bolt |
| 10 | GBT005789026 | Bolt M10×1.25×25 |
| 11 | A10-E110200-000-00 | Front Right Brake Oil Pipe |
| 12 | A03E11005001 | Brake Switch |
| 13 | A10-E110100-000-00 | F Brake Oil Pipe |
| 14 | A10-E111100-000-00 | Fl Caliper Brake |
| 15 | A10-E111000-000-00 | Fl Brake Assy |
| 16 | A03E11600001 | Hydraulic Distribution Valve |
| 17 | A10-E118000-000-00 | Brake Oil Cup |
| 18 | A03E11803001 | Clamp,oil Cup Pipe |
| 19 | A10-E118010-000-00 | Oil Cup Pipe A |
| 20 | A10-E118020-000-00 | Oil Cup Pipe A |
| 21 | T05000001004 | Positioning Tie Φ7×180 |
| 22 | A03E11804001 | Foot Brake Main Pump Tube Clip |
| 23 | A10-E110500-000-00 | Handbrake Oil Tube |
| 24 | A03-E117000-000-01 | Handbrake Pump |
| 25 | GB0000896005 | Open Retainer Ring 12 |
| 26 | GBT000971007 | A- Washer 14 |
| 27 | A03E12201001 | Nylon Bushing |
| 28 | A10-E121100-DB0-00 | Brake Padel |
| 29 | A10-E100001-DB0-00 | Main Brake Pump Guard Board |
| 30 | GBT005789016 | Hexagon Flange Bolt M8×25 |
| 31 | A10-E115000-000-01 | Foot Brake Main Pump |
| 32 | A10-E110300-000-00 | Front Brake Pipe |
| 33 | T05000001003 | Wire Clip |
| 34 | A11-E110400-000-00 | Rear Brake Pipe |
| 35 | GBT000701025 | Screw M10×1.25×20 |
| 36 | GB0000093005 | Washer 10 |
| 37 | A01E10001001 | Rear Brake Disc |
| 38 | A02E11320002 | Rear Brake Pad |
| 39 | A02E11310002 | Parking Brake Caliper |
| 40 | A02E11300002 | Rear Brake Assy |
| 41 | GBT000701004 | Screw M10×1.25×30 |

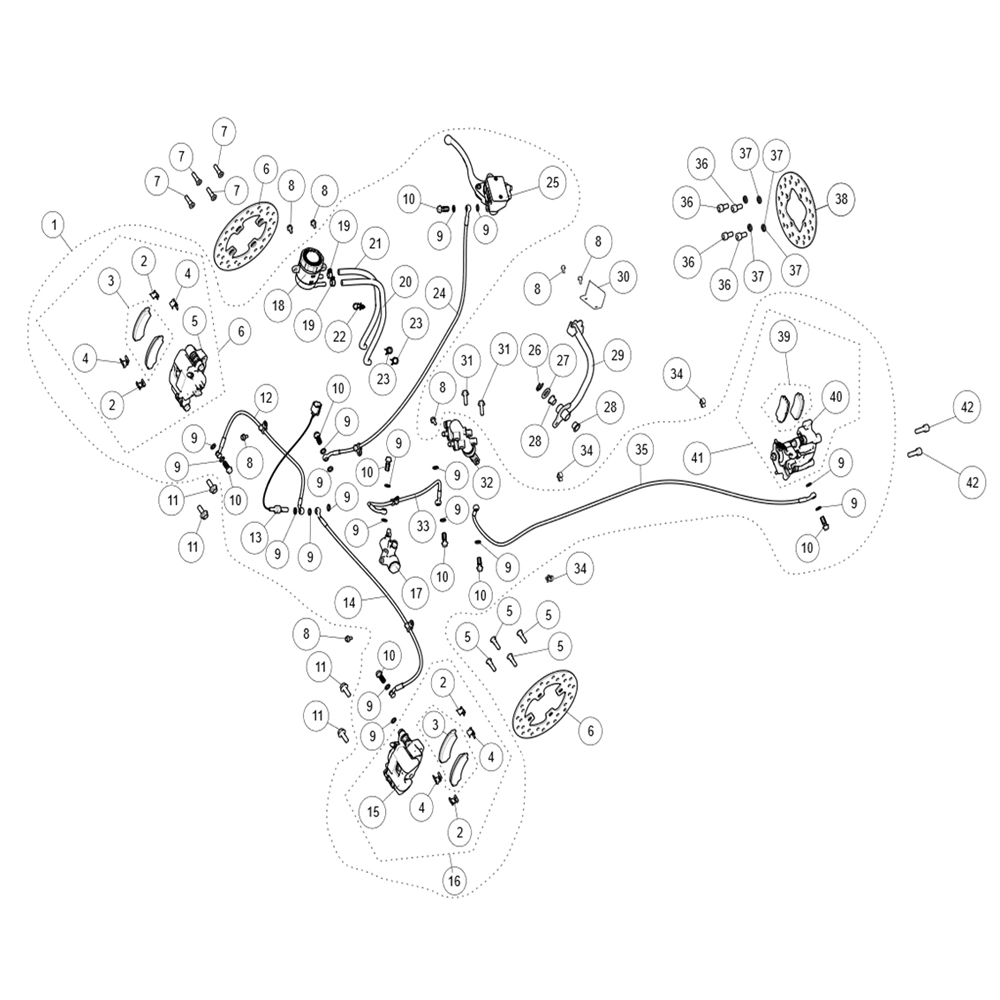

Segway AT5 Braking System Three Diagram:
