Segway AT5 Cooling System
Segway AT5 Cooling System Parts:
| No. | Part Number | Part Name |
| 1 | A10-A400103-000-00 | Buffer Rubber |
| 2 | A10-A400101-000-00 | Engine Radiator Body |
| 3 | A01A41110002 | Tank Lid Assy V |
| 4 | GBT005789010 | Hexagon Flange Bolt M6×25 |
| 5 | A01A41102001 | T-sleeve |
| 6 | A01A41101001 | I-shaped Rubber Parts |
| 7 | GBT005789007 | Bolt M6×16 |
| 8 | A10-A400102-000-00 | Cooling Fan (80w) |
| 9 | QCT006211003 | Clamp 11 |
| 10 | A10-A400204-000-00 | Overflow Pipe |
| 11 | A01A43040001 | Reserve Water Tank |
| 12 | QCT006211008 | Clamp,springband 30 |
| 13 | A10-A400201-000-00 | Radiator Outlet Hose |
| 14 | A10-A400203-000-00 | Engine Water Inlet Hose (I) |
| 15 | T05000080002 | 32 Clamps |
| 16 | T05000004001 | 25 Strip Components |
| 17 | A10-A400205-000-00 | Engine Water Intake Aluminum Hose |
| 18 | A10-A400202-000-00 | Engine Water Inlet Hose (II) |
| 19 | QCT006211007 | Steel Belt Elastic Hose Clamp 28 |
| 20 | A10-A400100-000-00 | Engine Radiator Assembly |

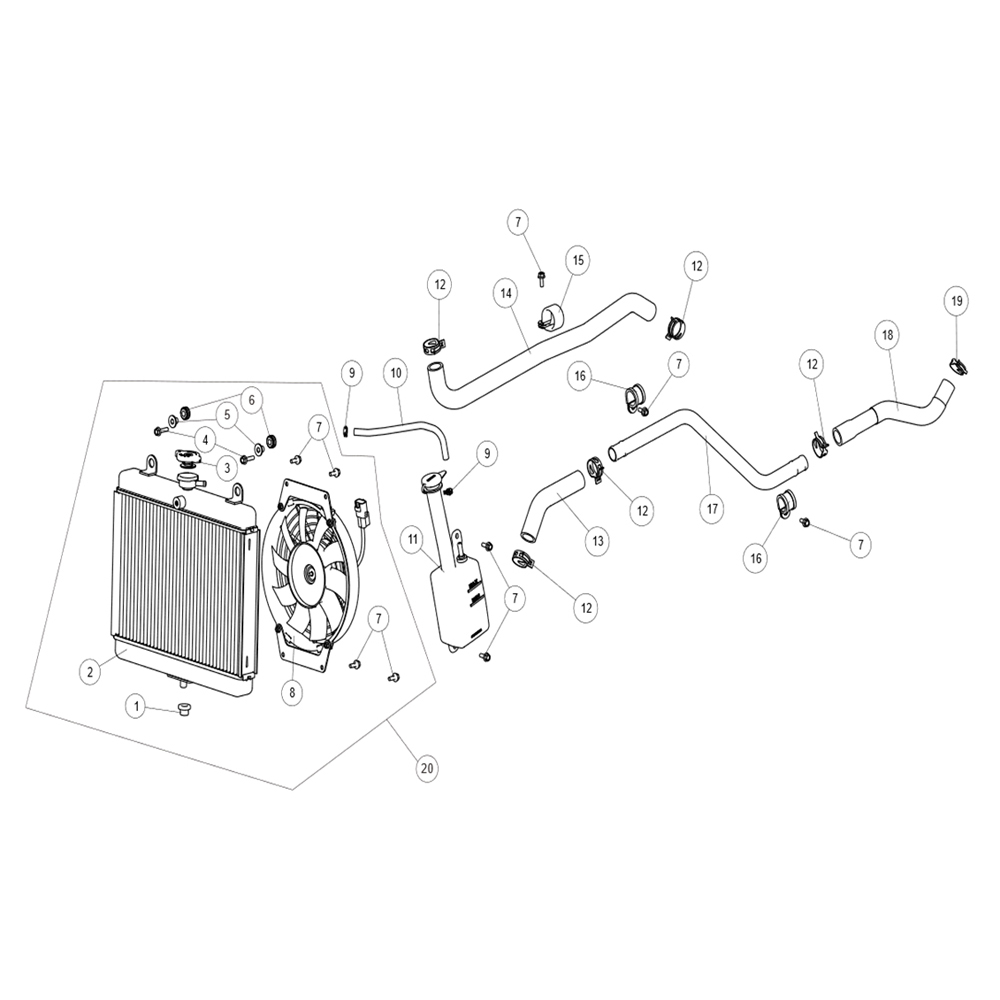

Segway AT5 Cooling System Diagram:
