Segway AT5 Cylinder and Cylinder Head
Segway AT5 Cylinder and Cylinder Head Parts:
| No. | Part Number | Part Name |
| 1 | F01A10004001 | OIL FILL CAP |
| 2 | F01A10005001 | OIL FILL CAP SEAL |
| 3 | F01A10009001 | O-RING 22×3 |
| 4 | F01A10008001 | VALVE COVER BOLT |
| 5 | F01A10003001 | RUBBER ISLOATOR |
| 6 | F01A10001003 | VALVE COVER |
| 7 | F01A20600001 | CYLINDER HEAD BOLT |
| 8 | F01A10007001 | DOWEL PIN 10×14 |
| 9 | F01A10002001 | CYLINDER HEAD COVER SEAL |
| 10 | F01000012001 | BOLT M6×90 |
| 11 | F01A20008001 | STUD M8×43 |
| 12 | E01-A301000-000-01 | CYLINDER |
| 13 | E01A50100001 | AIR INTAKE PIPE ASSEMBLY |
| 14 | GBT000701019 | SCREW M8×25 |
| 15 | QCT000620006 | WORM HOSE CLAMP(70) |
| 16 | E01-A302000-000-01 | CYLINDER HEAD GASKET |
| 17 | GBT001192001 | DOWEL PIN 6X 10 |
| 18 | F01A40400001 | TIMING CHAIN |
| 19 | F01A40500001 | CHAIN GUIDE |
| 20 | E02-A406010-000-02 | TIMING CHAIN TENSIONER |
| 21 | F01A40007002 | HEXAGON SOCKET PAN HEAD STEPPED BOLTS |
| 22 | F01000004001 | BOLT M6×20 |
| 23 | F01A40005001 | CHAIN GUARD |
| 24 | F01000005001 | BOLT M6×25 |
| 25 | F01A40011001 | PIPE+LINE FIXING PLATE |
| 26 | E02-A403000-000-02 | TENSIONER |
| 27 | F01A40008001 | TENSIONER GASKET |
| 28 | F01A30001001 | CYLINDER BASE GASKET |

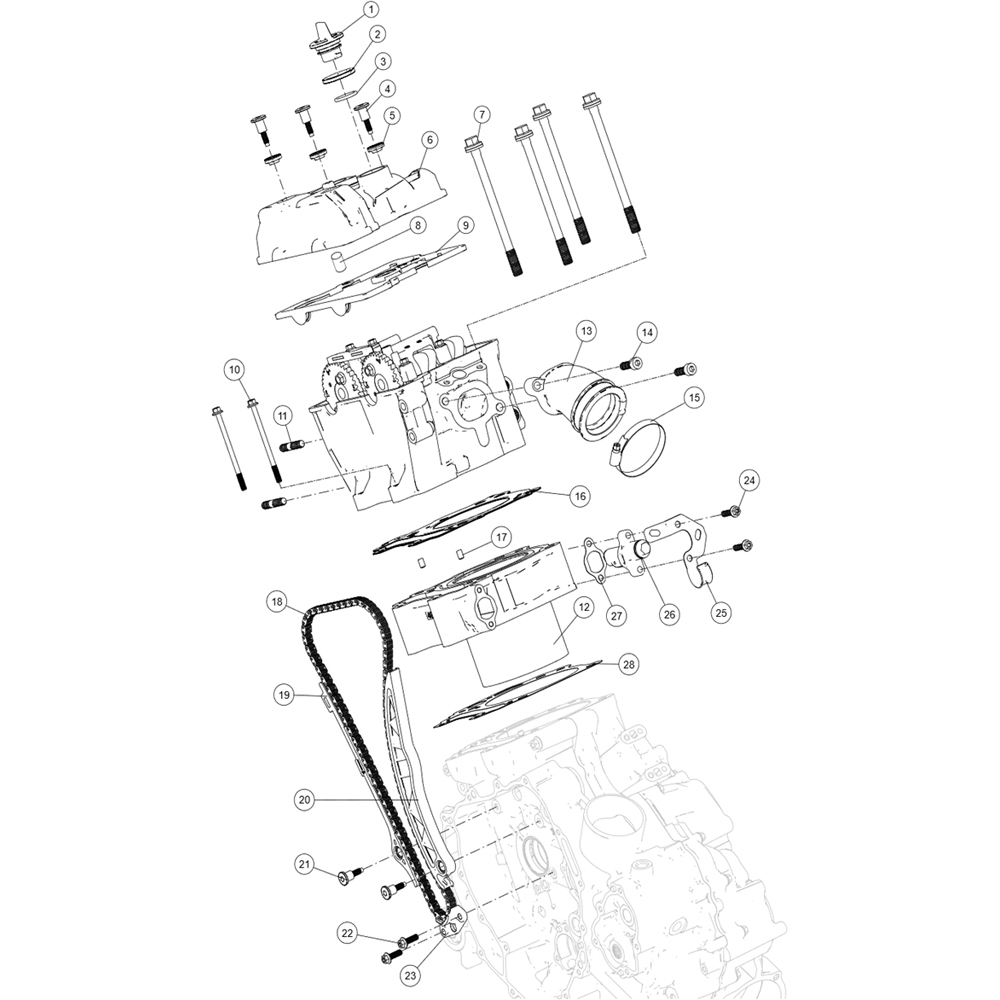

Segway AT5 Cylinder and Cylinder Head Diagram:
