Segway AT5 Cylinder Head
CA$0.91
In stock
SKU Segway AT5 Cylinder Head
Segway AT5 Cylinder Head Parts:
| No. |
Part Number |
Part Name |
| 1 |
F01A20000001 |
Cylinder Head Assembly |
| 2 |
F01000011001 |
Bolt M6×65 |
| 3 |
F01000007001 |
Bolt M6×35 |
| 4 |
F01A40700001 |
Fixed Cam Chain Guide |
| 5 |
F01A20300001 |
Camshaft Cover |
| 6 |
F01A20007001 |
Valve Bucket (480) |
| 6 |
F01A20007002 |
Valve Tappet (482) |
| 6 |
F01A20007003 |
Valve Tappet (484) |
| 6 |
F01A20007004 |
Valve Tappet (486) |
| 6 |
F01A20007005 |
Valve Tappet (488) |
| 6 |
F01A20007006 |
Valve Tappet (490) |
| 6 |
F01A20007007 |
Valve Tappet (492) |
| 6 |
F01A20007008 |
Valve Tappet (494) |
| 6 |
F01A20007009 |
Valve Tappet (496) |
| 6 |
F01A20007010 |
Valve Tappet (498) |
| 6 |
F01A20007011 |
Valve Tappet (500) |
| 6 |
F01A20007012 |
Valve Tappet (502) |
| 6 |
F01A20007013 |
Valve Tappet (504) |
| 6 |
F01A20007014 |
Valve Tappet (506) |
| 6 |
F01A20007015 |
Valve Tappet (508) |
| 6 |
F01A20007016 |
Valve Tappet (510) |
| 6 |
F01A20007017 |
Valve Tappet (512) |
| 6 |
F01A20007018 |
Valve Tappet (514) |
| 6 |
F01A20007019 |
Valve Tappet (516) |
| 6 |
F01A20007020 |
Valve Tappet (518) |
|
| No. |
Part Number |
Part Name |
| 6 |
F01A20007021 |
Valve Tappet (520) |
| 6 |
F01A20007022 |
Valve Tappet (522) |
| 6 |
F01A20007023 |
Valve Tappet (524) |
| 6 |
F01A20007024 |
Valve Tappet (526) |
| 6 |
F01A20007025 |
Valve Tappet (528) |
| 6 |
F01A20007026 |
Valve Tappet (530) |
| 6 |
F01A20007027 |
Valve Tappet (532) |
| 6 |
F01A20007028 |
Valve Tappet (534) |
| 6 |
F01A20007029 |
Valve Tappet (536) |
| 6 |
F01A20007030 |
Valve Tappet (538) |
| 6 |
F01A20007031 |
Valve Tappet (540) |
| 6 |
F01A20007032 |
Valve Tappet (542) |
| 6 |
F01A20007033 |
Valve Tappet (544) |
| 6 |
F01A20007034 |
Valve Tappet (546) |
| 6 |
F01A20007035 |
Valve Tappet (548) |
| 6 |
F01A20007036 |
Valve Tappet (550) |
| 6 |
F01A20007037 |
Valve Tappet (552) |
| 6 |
F01A20007038 |
Valve Tappet (554) |
| 6 |
F01A20007039 |
Valve Tappet (556) |
| 6 |
F01A20007040 |
Valve Tappet (558) |
| 6 |
F01A20007041 |
Valve Tappet (560) |
| 6 |
F01A20007042 |
Valve Tappet (562) |
| 6 |
F01A20007043 |
Valve Tappet (564) |
| 6 |
F01A20007044 |
Valve Tappet (566) |
| 6 |
F01A20007045 |
Valve Tappet (568) |
|
| No. |
Part Number |
Part Name |
| 6 |
F01A20007046 |
Valve Tappet (570) |
| 6 |
F01A20007047 |
Valve Tappet (572) |
| 6 |
F01A20007048 |
Valve Tappet (574) |
| 6 |
F01A20007049 |
Valve Tappet (576) |
| 6 |
F01A20007050 |
Valve Tappet (578) |
| 7 |
F01A20005001 |
Valve Keeper |
| 8 |
F01A20006001 |
Valve Retainer |
| 9 |
F01A20001001 |
Valve Spring |
| 10 |
F01A20200001 |
Valve Stem Seal |
| 11 |
F01A20004001 |
Valve Spring Seat |
| 12 |
F01A20009001 |
Dowel Pin 8×12 |
| 13 |
F01A20400002 |
Spark Plug (Torch) |
| 14 |
F01A20500001 |
Cylinder Head-camshaft Carrier |
| 15 |
F01A20002001 |
Intake Valve |
| 16 |
F01A20003001 |
Exhaust Valve |
| 17 |
F01A40009001 |
Bolt M6×12 |
| 18 |
F01A40003001 |
Cam Sprocket |
| 19 |
F01A40110003 |
Intake Camshaft Assy |
| 20 |
F01A20008001 |
Stud M8×43 |
| 22 |
F01A40006001 |
Dowel Pin 4×6 |
| 23 |
F01A40210001 |
Dowel Pin 4×6 |
| 24 |
GBT000894009 |
Circlip 22 |
| 25 |
F01A40230003 |
Exhaust Camshaft Assy |
| |
|
|
| |
|
|
|

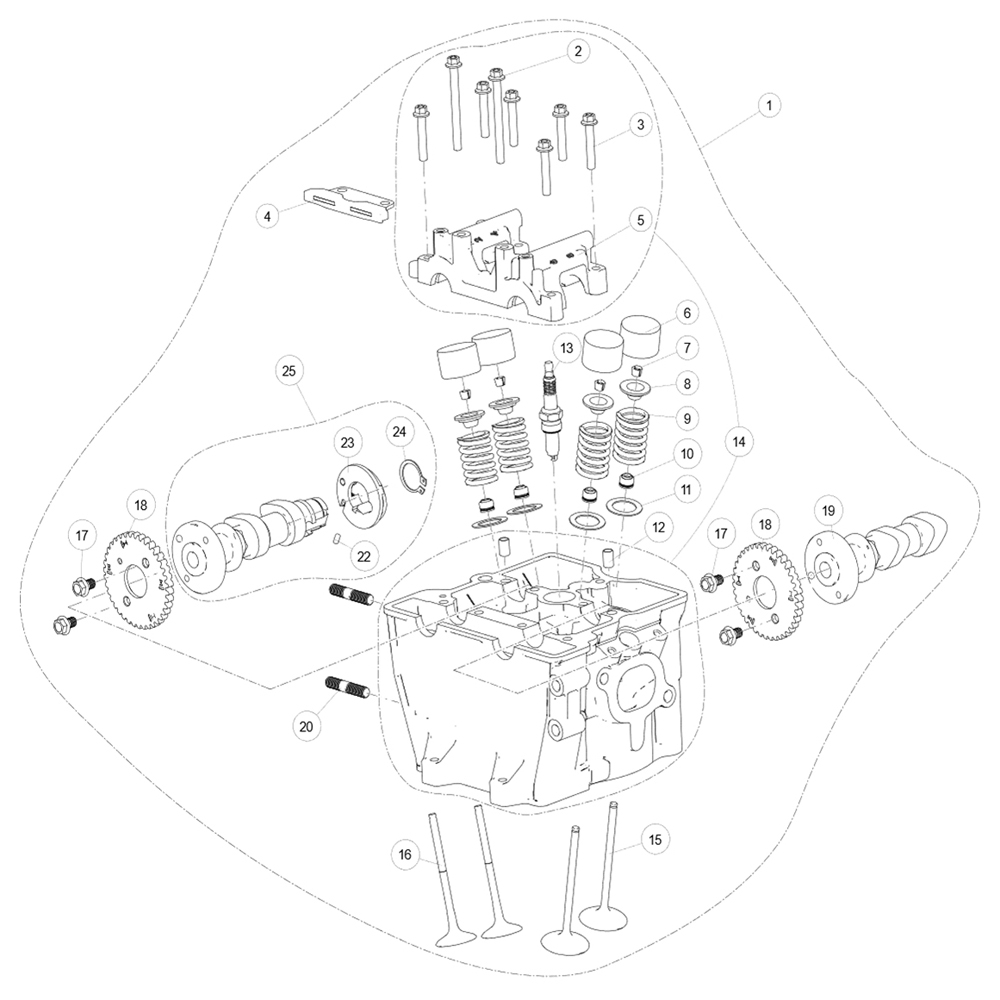

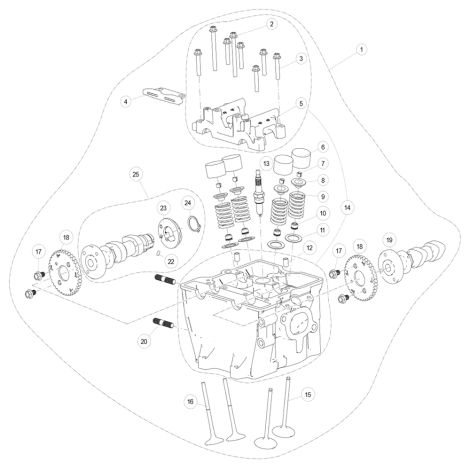

Segway AT5 Cylinder Head Diagram:
