Segway AT5 Drive Shaft Long
Segway AT5 Drive Shaft Long Parts:
| No. | Part Number | Part Name |
| 1 | A10-P110100-000-00 | Front Outer Cv Boot Assembly |
| 2 | A10-P110400-000-00 | Front Cv Boot Dust Cover Assembly |
| 3 | A10-P110600-000-00 | Fl Middle Shaft |
| 4 | A10-P110800-000-00 | Fl Inner Cv Boot Assy |
| 5 | A10-P120200-000-00 | Fr Inner Cv Boot Assy |
| 6 | A10-P120100-000-00 | Fr Middle Shaft |
| 7 | A10-P210000-000-00 | Front Drive Shaft |
| 8 | GBT000701003 | Hexagon Socket Head Cap Bolt M10×1.25×25 |
| 9 | GB0000093005 | Washer 10 |
| 10 | A11-P220000-000-00 | Rear Drive Shaft (Long) |
| 11 | A10-P130100-000-01 | Rear Outer Cv Boot Assembly |
| 12 | A10-P130400-000-01 | Rear Cv Boot Dust Cover Assembly |
| 13 | A10-P140100-000-01 | Rl Middle Shaft |
| 13-1 | A10-P140100-000-02 | Rl Middle Shaft(No Diff) |
| 14 | A10-P140200-000-01 | Rl Inner Cv Boot Assy |
| 14-1 | A10-P130200-000-02 | Rl Inner Cv Boot Assy(No Diff) |
| 15 | A10-P130800-000-01 | Rr Inner Cv Boot Assy |
| 16 | A10-P130600-000-01 | Rr Middle Shaft |
| 16-1 | A10-P130100-000-02 | Rr Middle Shaft(No Diff) |
| 17 | A10-P110000-000-00 | Fl Cv Drive Shaft |
| 18 | A10-P120000-000-00 | Fr Cv Drive Shaft |
| 19 | A10-P140000-000-01 | Rl Cv Drive Shaft |
| 20 | A10-P130000-000-01 | Rr Cv Drive Shaft |
| 19-1 | A10-P140000-000-02 | Rl Cv Drive Shaft(No Diff) |
| 20-1 | A10-P130000-000-02 | Rr Cv Drive Shaft(No Diff) |

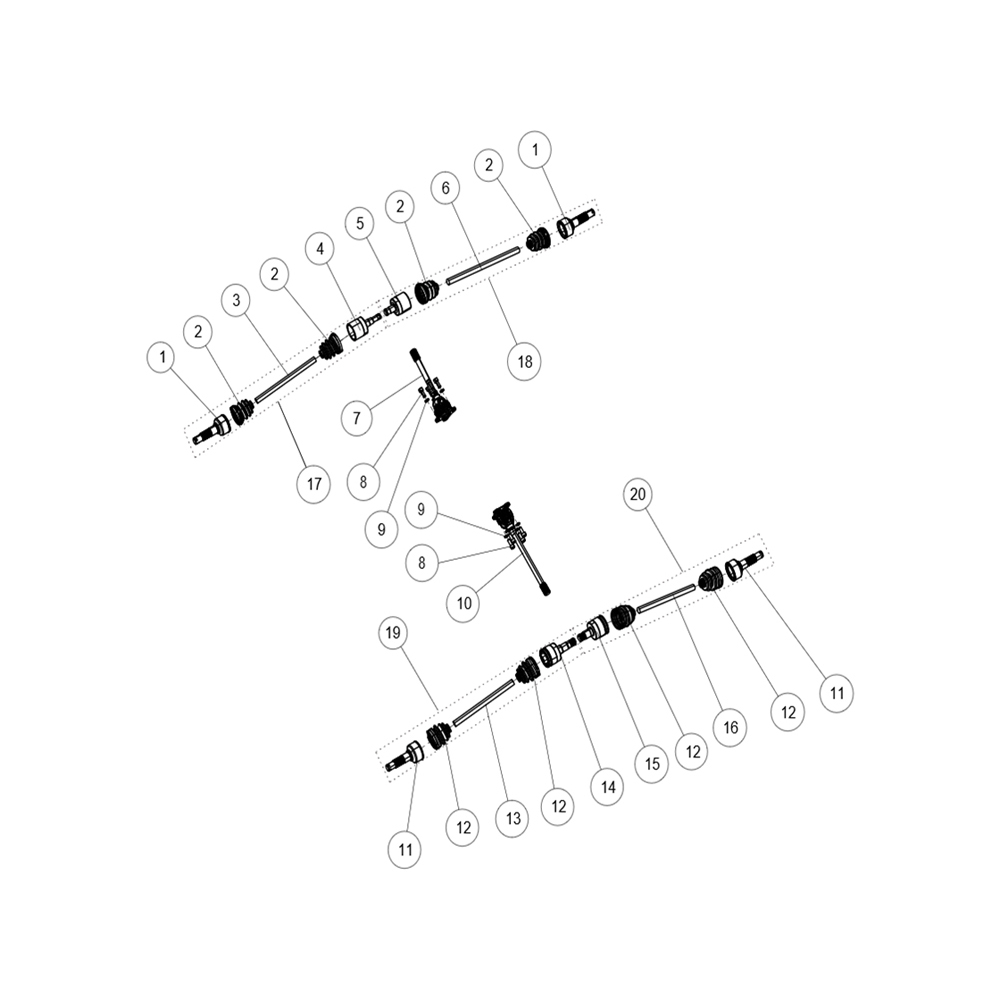

Segway AT5 Drive Shaft Long Diagram:
