Segway AT5 Electric Appliance
Segway AT5 Electric Appliance Parts:
| No. | Part Number | Part Name |
| 1 | GBT005789013 | Hexagon Flange Bolt M8×12 |
| 2 | U01M02200001 | Horn |
| 3 | GBT000845004 | Screw St2.9×9.5 |
| 4 | S01-M041000-000-00 | Flasher |
| 5 | QCT000602001 | Screw St2.9×13 |
| 6 | U01M33000001 | Buzzer |
| 7 | U01M04200001 | U01 12v Power Output Seat |
| 8 | U01M04300001 | Usb Power Output |
| 9 | T05000001011 | Tie 5×200 |
| 10 | T05000001006 | Ribbon 5×250 |
| 11 | A10-M111001-000-00 | Main Cable |
| 12 | T05000001007 | Ribbon 2×120 |
| 13 | GBT005789006 | Hexagon Flange Bolt M6×12 |
| 14 | A10-M141001-000-00 | Starting Terminal |
| 15 | A01M04200001 | Starting Relay |
| 16 | A02M11300001 | Seat Switch Bypass Plug |
| 17 | A10-M145001-000-00 | Battery Negative Wire |
| 18 | A01M04500001 | Battery 32ah |
| 19 | A01-M045000-000-00 | Battery Terminals |
| 20 | A10-M142001-000-00 | Battery Positive Wire |
| 21 | T05000001004 | Positioning Tie Φ7×180 |
| 22 | A01M04400001 | Rectifier S |
| 23 | GBT005789065 | Hexagon Flange Bolt M6×30 |
| 24 | U01M04500001 | Trailer Power Socket |
| 25 | GBT000818007 | Cross Recessed Hexagon Bolts M5×30 |
| 26 | GBT006170003 | Nut M6 |
| 27 | GBT000971009 | Gasket 6 |
| 28 | T10000001003 | Square Reflector |

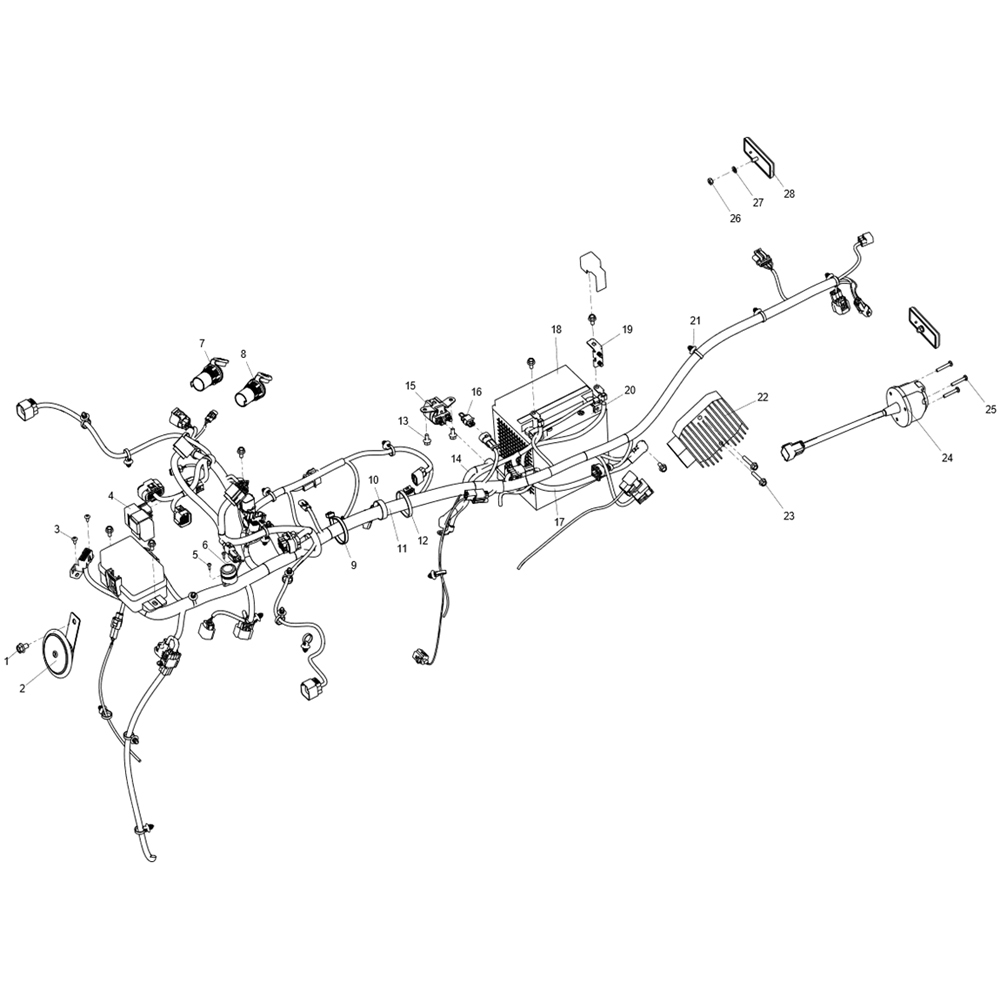

Segway AT5 Electric Appliance Diagram:
