Segway AT5 EPS Steering System
Segway AT5 EPS Steering System Parts:
| No. | Part Number | Part Name |
| 1 | A03F16600001 | Handlebar |
| 2 | T02000006101 | Handle Tube Gasket |
| 3 | T03000008003 | Bolt M8×25 |
| 4 | A10-F165001-DB0-00 | Handle Tube |
| 5 | BG000701-08065-R81 | Hexagon Socket Head Screw M8×65 |
| 6 | A03F16300001 | Handlebar Upper Cover |
| 7 | A10-F164001-000-00 | Handlebar Lower Cover |
| 8 | A01-F162001-000-00 | Steering Sphere |
| 9 | A03F16100001 | Locking Plate Sphere |
| 10 | A03F16101001 | Harness Storage Wire |
| 11 | GBT005789014 | Hexagon Flange Bolt M8×16 |
| 12 | A10-F140001-000-00 | Steering Column |
| 13 | GBT005789017 | Hexagon Flange Bolt M8×30 |
| 14 | A02F13100004 | Eps(TI) |
| 15 | GBT005789098 | Bolt M10×20 |
| 16 | A03F11002001 | Steering Arm(With Brush) |
| 17 | GB0000093004 | Washer 8 |
| 18 | A03F11001101 | Bolt M8×35 |
| 19 | T02000004001 | Steering Arm Gasket |
| 20 | GBT009457001 | 1-hexagon Slotted Nut M10 |
| 21 | GBT000091006 | Cotter Pin 2.5 X 25 |
| 22 | A10-F102001-000-00 | Steering Rod Assembly |

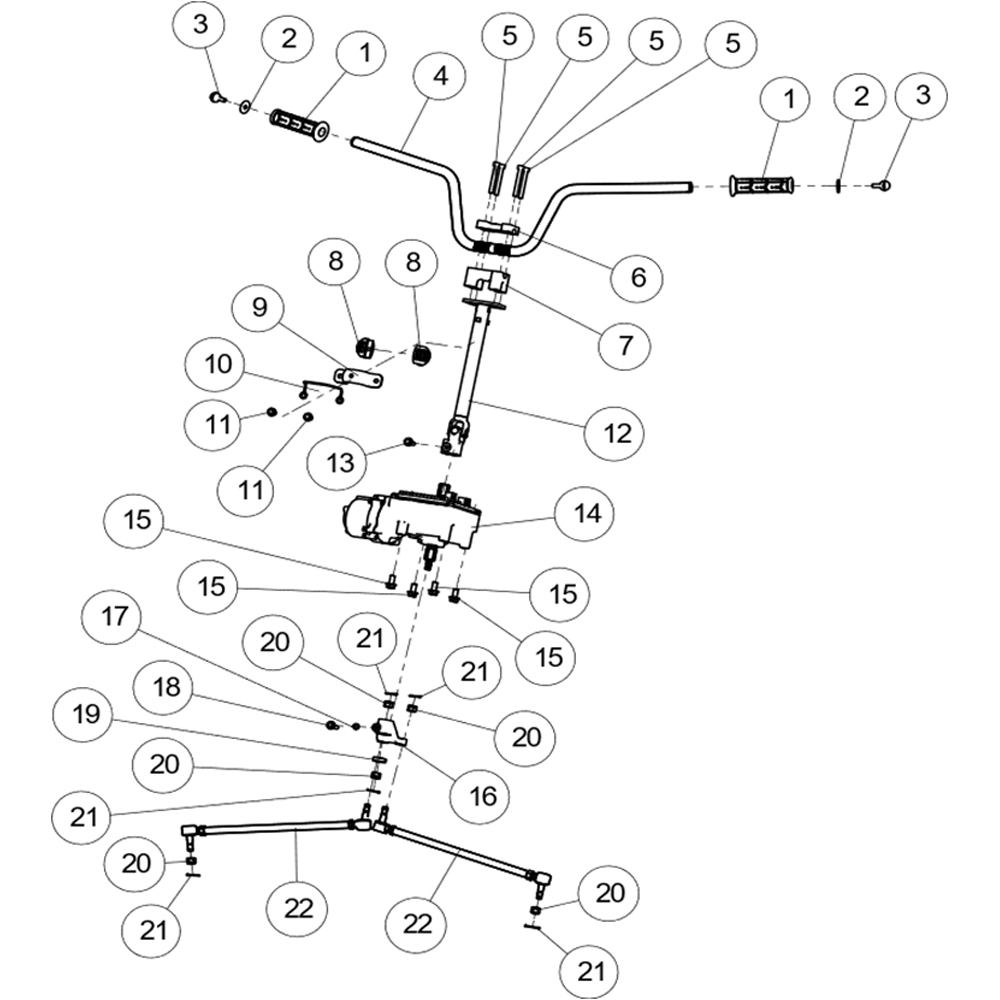

Segway AT5 EPS Steering System Diagram:
