Segway AT5 Frame Components(Short Version)
CA$0.91
In stock
SKU
Segway AT5 Frame Components(Short Version)
Segway AT5 Frame Components(Short Version) Parts:
| No. | Part Number | Part Name |
| 1 | GBT005789014 | Hexagon Flange Bolt M8×16 |
| 2 | A10-C015000-DB0-00 | Front Shelf Support |
| 3 | GBT005789019 | Hexagon Flange Bolt M8×40 |
| 4 | A10-C012000-DB0-00 | Right Pedal |
| 5 | GBT005789017 | Hexagon Flange Bolt M8×30 |
| 6 | A10-C013000-DB0-00 | Starter Relay Bracket |
| 7 | GBT005789006 | Hexagon Flange Bolt M6×12 |
| 8 | T04000002001 | M6 Nut Clamp |
| 9 | A10-C016000-DB0-00 | Battery Bracket |
| 10 | A02C00003002 | Battery Press Plate |
| 11 | A10-C006000-DB0-00 | Rear Shelf Support |
| 12 | A10-C005000-DB0-00 | Carbon Tank Mounting Bracket |
| 13 | QCT000623002 | Lock Pin 12 |
| 14 | A02C09000002 | Trailer Square Tube |
| 15 | GBT005789025 | Hexagon Flange Bolt M10×1.25×20 |
| 16 | A01R21100001 | Trailer Ball（eu） |
| 17 | U01R21103001 | Ball Spring Washer |
| 18 | U01R21102001 | Ball Nut |
| 19 | U01R21300001 | Trailer Pin |
| 20 | A10-C017000-DB0-00 | Fog Light Mounting Bracket |
| 21 | A02C07000002 | Trailer Power Socket Bracket |
| 22 | GBT061832001 | 2-non-metallic Hf Nut M10×1.25 |
| 23 | A10-C004000-DB0-00 | Upper Mount Of Rear Axle |
| 24 | GBT005789086 | Hexagon Flange Bolt M10×1.25×75 |
| 25 | A10-C011000-DB0-00 | Left Pedal |
| 26 | A10-C002000-DB0-00 | Lower Mount Of Front Axle |
| 27 | GBT005789038 | Hexagon Flange Bolt M10×1.25×100 |
| 28 | A10-B000000-DB0-00 | Frame Boby Short Version |
| 29 | A10-C001000-DB0-00 | Upper Mount Of Front Axle |

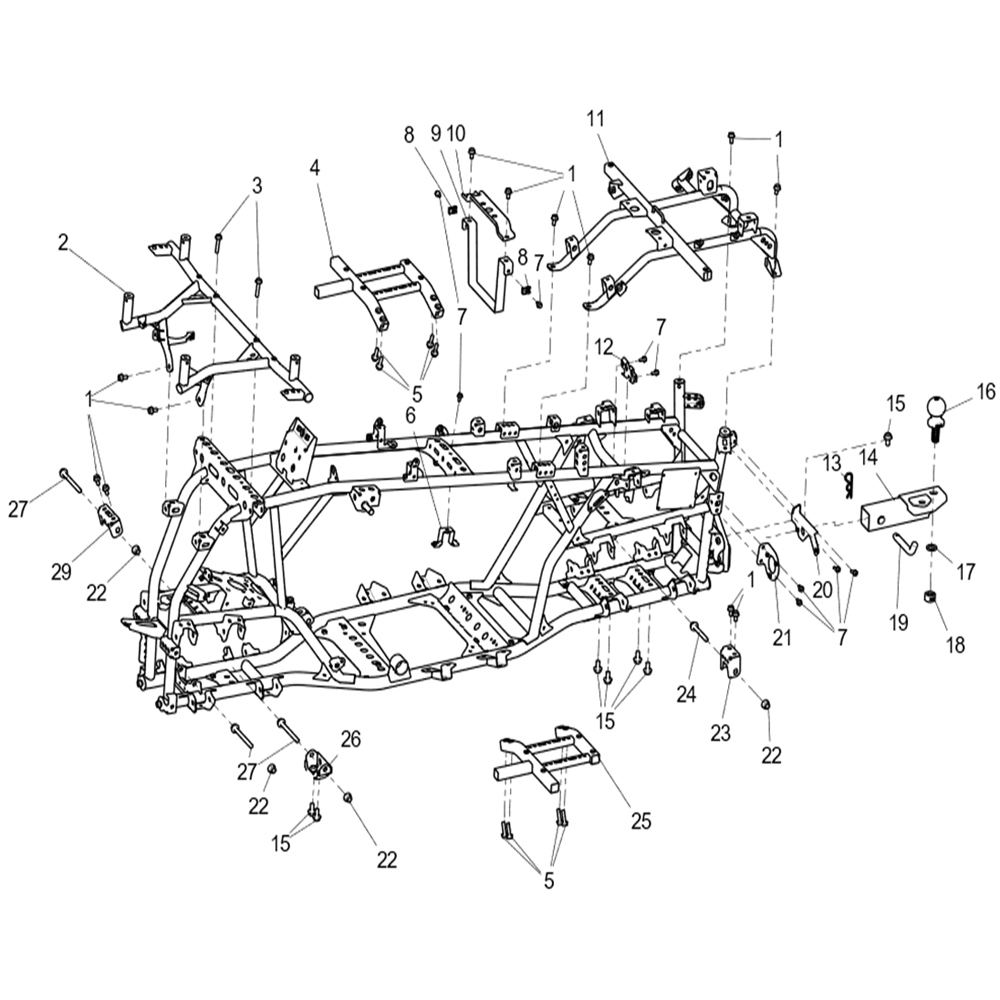

Segway AT5 Frame Components(Short Version) Diagram:
