Segway AT5 Front Axle Differential
CA$0.91
In stock
SKU Segway AT5 Front Axle Differential
Segway AT5 Front Axle Differential Parts:
| No. |
Part Number |
Part Name |
| 1 |
F01000015001 |
Bolt M8×30 |
| 2 |
Q02F00003001 |
Oil Seal 24×38×8 |
| 3 |
Q02-F401000-000-00 |
Front Axle Box Cover |
| 4 |
Q02-F401002-000-00 |
Bolt M8 × 12 |
| 5 |
Q02-F301014-000-00 |
Shift Fork Shaft |
| 6 |
Q03F50100001 |
Front Axle Shift Motor Assembly |
| 7 |
F01000002001 |
Bolt M6×16 |
| 8 |
Q03F40300001 |
O-ring 67.9×2.2 |
| 9 |
Q02-F301015-000-00 |
Sliding Rack |
| 10 |
Q02-F301013-000-00 |
Shift Fork |
| 11 |
Q02F04103001 |
Air Tap |
| 12 |
QCT006211003 |
Clamp 11 |
| 13 |
Q02F00005001 |
Pipe 600 |
| 14 |
GBT000276036 |
Bearing 16007 |
| 15 |
GBT000893008 |
Circlip 62 |
| 16 |
Q02-F301012-000-00 |
Output Sleeve |
| 17 |
Q02-F301011-000-00 |
Combination Sleeve |
| 18 |
Q02F20007001 |
Washer |
| 19 |
GBT000276035 |
Bearing 61912 |
| 20 |
GBT000701041 |
Screws M8×20 |
| 21 |
Q02-F301001-000-00 |
Differential Cover |
| 22 |
Q02-F301010-000-00 |
Left Half Shaft Gear Gasket |
| 23 |
Q02-F301004-000-00 |
Left Half Shaft Bevel Gear |
| 24 |
Q02-F301008-000-00 |
Planetary Gear Gasket |
| 25 |
Q02-F301002-000-00 |
Planetary Gear |
| 26 |
Q02-F301007-000-00 |
Planetary Shaft Carrier |
|
| No. |
Part Number |
Part Name |
| 27 |
Q02-F301005-000-00 |
Planetary Gear Shaft I |
| 28 |
Q02-F301006-000-00 |
Planetary Gear Shaft Ii |
| 29 |
Q02-F301003-000-00 |
Right Half Shaft Bevel Gear |
| 30 |
Q02-F301009-000-00 |
Right Half Shaft Gear Gasket |
| 31 |
Q02-F301000-000-00 |
Differential Housing |
| 32 |
Q02-F102000-000-00 |
Drive And Driven Bevel Gear(450) |
| 33 |
BG002760-61908-001 |
Bearing 61908 |
| 34 |
Q02F20003001 |
Bevel Gear Adjusting Washer |
| 35 |
Q01F40201001 |
Hexagon Flange Bolt M8×25 |
| 36 |
Q02F00007001 |
O-ring 19.4×2.3 |
| 37 |
Q01F50300002 |
Vehicle Speed Sensor |
| 38 |
Q02F00008001 |
Plug M18×1.5 |
| 39 |
Q02F00009001 |
O-ring 16.4×2.5 |
| 40 |
Q02F00006001 |
O-ring 13×1.5 |
| 41 |
Q02F00014001 |
Plug M14×1.5×11 |
| 42 |
Q02-F401001-000-00 |
Front Axle Box |
| 43 |
Q02F40202001 |
Needle Bearing Hk152112 |
| 44 |
GBT000276037 |
Bearing 6007 |
| 45 |
Q02-F401004-000-00 |
Nut M64 × 1.5 |
| 46 |
Q02-F101001-000-00 |
O-ring 26 × 2.7 |
| 47 |
Q02F00004001 |
Oil Seal 48×65×9 |
| 48 |
BG008930-22000-F01 |
Circlip 22 |
| 49 |
Q02-F101002-000-00 |
Universal Joint Fork 1 |
| 50 |
Q02-R101007-000-00 |
Washer Φ14.5×φ35.2×4 |
| 51 |
Q02-R101025-000-00 |
Bolt M14 ×1.5 × 30 |
| 52 |
Q02-R101027-000-00 |
Universal Joint Fork 2 |
| 53 |
Q02-F000000-000-00 |
450 Front Axle Assembly |
|

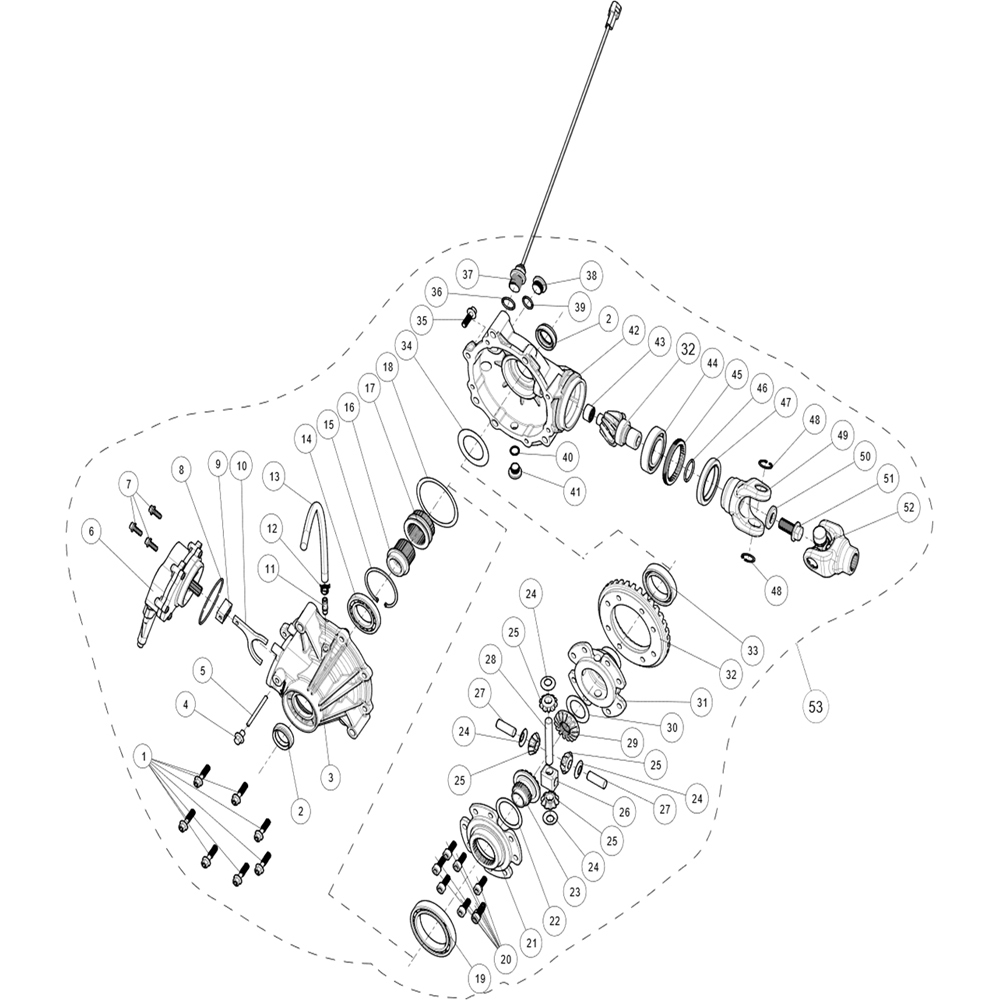

Segway AT5 Front Axle Differential Diagram:
