Segway AT5 Front Suspension System
Segway AT5 Front Suspension System Parts:
| No. | Part Number | Part Name |
| 1 | GBT005789032 | Hexagon Flange Bolt M10×1.25×55 |
| 2 | GBT061832001 | 2-non-metallic Hf Nut M10×1.25 |
| 3 | A10-D150010-0B0-00 | Black Front Shock Absorber |
| 5 | GBT000894004 | Circlip 34 |
| 6 | A10-D111010-DB0-00 | Black Upper Weld Arm Fl |
| 7 | A01D11010001 | Main Pin,upper |
| 8 | A10-D100010-DB0-00 | Left Steering Knuckle |
| 9 | BG008930-55000-F01 | Circlip 55 |
| 10 | BJ102380-55032-001 | Hub Bearing Dac3005532-2rsc1 |
| 11 | GBT009457001 | 1-hexagon Slotted Nut M10 |
| 12 | A10-D121010-DB0-00 | Black Lower Weld Arm Fl |
| 13 | A01D12010001 | Main Pin, Lower |
| 14 | GBT005789030 | Bolt M10×1.25×45 |
| 15 | GBT005789086 | Hexagon Flange Bolt M10×1.25×75 |
| 16 | A10-D111011-000-00 | Arm Plug |
| 17 | A03A30001001 | Rocker Arm Bracket Buffer Bushing |
| 18 | GBT000091006 | Cotter Pin 2.5 X 25 |
| 19 | A10-D131010-DB0-00 | Black Upper Weld Arm Fr |
| 20 | A10-D100020-DB0-00 | Right Steering Knuckle |
| 21 | A10-D141010-DB0-00 | Black Lower Weld Arm Fr |

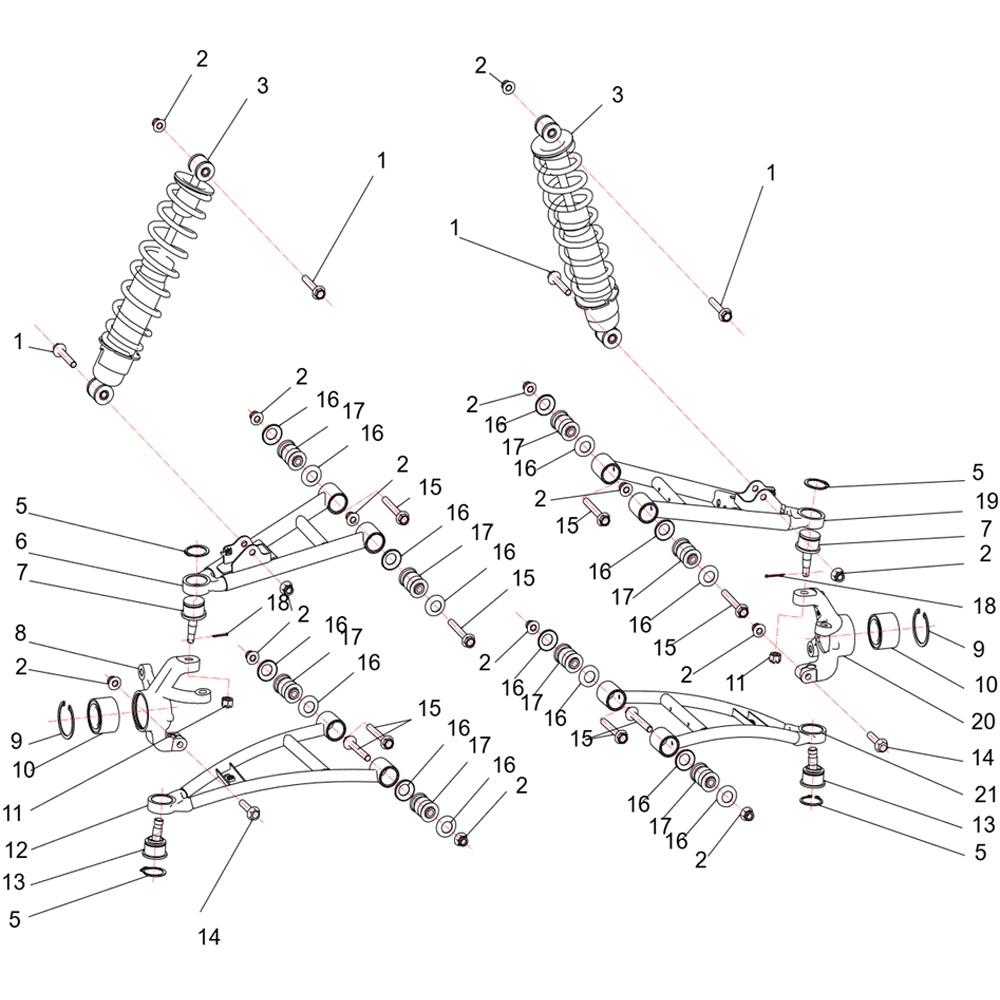

Segway AT5 Front Suspension System Diagram:
