Segway AT5 Fuel System Short Version
Segway AT5 Fuel System Short Version Parts:
| No. | Part Number | Part Name |
| 1 | A10-A500005-000-00 | Rear Fender Heat Shield |
| 2 | A10-A500004-000-00 | Heat Shield Of Middle Guard |
| 3 | GBT000961001 | Ring La-5 |
| 4 | GBT000845010 | Screw St4.2×16 |
| 5 | GBT005789065 | Hexagon Flange Bolt M6×30 |
| 6 | S01A50103001 | T Bushing |
| 7 | S03A50106001 | Fuel Tank Rubber Gasket |
| 8 | A10-A500003-000-00 | Air Pipe |
| 9 | QCT006211003 | Clamp 11 |
| 10 | A10-A500001-000-00 | Buffer Rubber Sleeve |
| 11 | A01A51040001 | Tank Install Rubber Sleeve |
| 12 | A10-A510000-000-00 | Fuel Tank |
| 13 | U01A51500001 | Fuel Pump Retainer Ring |
| 14 | T03000006002 | Screw M6×16 |
| 15 | A10-A500002-000-00 | Fuel Tank Heat Shield |
| 16 | T05000006001 | Clamp 16.5 |
| 17 | A10-A520002-000-00 | Injection Pipe |
| 18 | T07000001004 | 9.49quick-mounting Plug (90 Degree) |
| 19 | U01A52010001 | Fuel Filter |
| 20 | A10-A500100-000-00 | Fuel Tank Cover |
| 21 | A10-A520001-000-00 | Fuel Pump Pipe |
| 22 | A10-A520000-000-00 | Injection Pipe Assy |
| 23 | A10-M430000-000-00 | Fuel Pump |

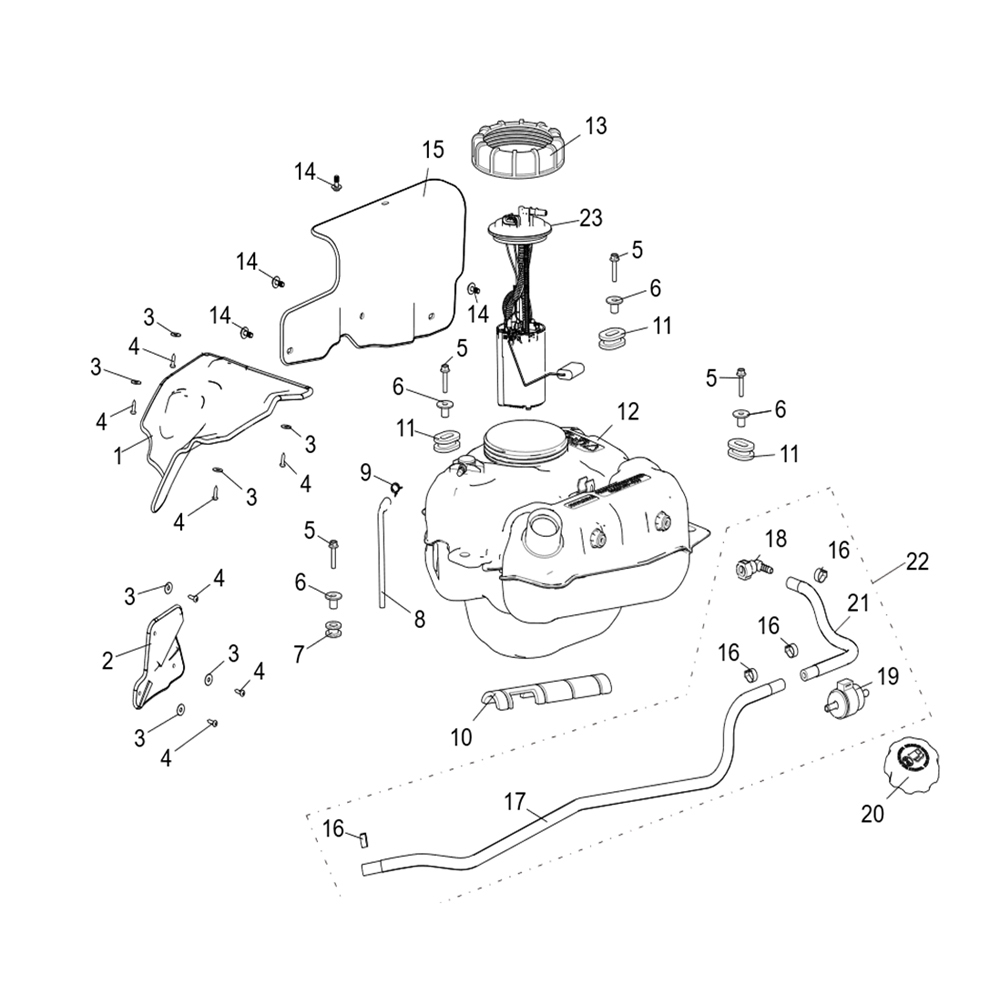

Segway AT5 Fuel System Short Version Diagram:
