Segway AT5 Left Crankcase Cover
CA$0.91
In stock
SKU
Segway AT5 Left Crankcase Cover
Segway AT5 Left Crankcase Cover Parts:
| No. | Part Number | Part Name |
| 1 | F01000006001 | Bolt M6×30 |
| 2 | F01000009001 | Bolt M6×55 |
| 3 | E01C20104001 | Stator Cover Plug |
| 4 | E01C20107001 | O-Ring 35×3.5 |
| 5 | E01C20106001 | Water Pump Seal |
| 6 | E01C20103001 | O-Ring 18×3.5 |
| 7 | E01C20102001 | Oil Dipstick |
| 8 | E01C20105001 | Plate |
| 9 | F01000002001 | Bolt M6×16 |
| 10 | E01-C212100-000-00 | Magneto Stator |
| 11 | E01C20101001 | Left Crankcase Cover Gasket |
| 12 | F01000007001 | Bolt M6×35 |
| 13 | E01C21201001 | Nut M18×1.5 |
| 14 | E01C21220001 | Alternator Rotor |
| 15 | E01J30010001 | One-Way Clutch |
| 16 | GBT000701018 | Bolt M6×16 (II) |

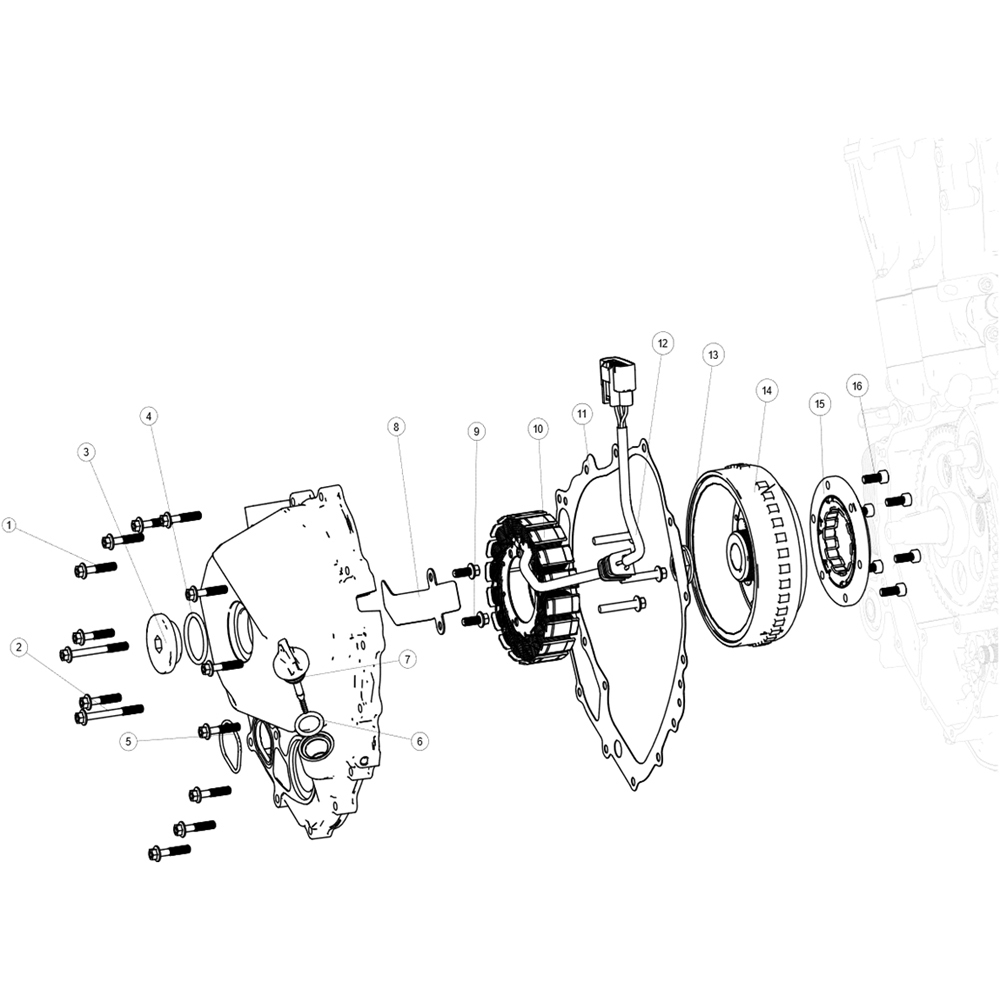

Segway AT5 Left Crankcase Cover Diagram:
