Segway AT5 Lubrication System
Segway AT5 Water Pump Parts:
| No. | Part Number | Part Name |
| 1 | F01G00010001 | Oil Pump Drive Gear |
| 2 | F01G00012001 | Flat Key |
| 3 | F01G00011001 | Spacer 10×30×3 |
| 4 | GBT005789053 | Bolt M10×1.25×25 |
| 5 | E01G00009001 | Oil Pump Idler Gear Shaft |
| 6 | GBT000894007 | Circlip 15 |
| 7 | F01G00008001 | Spacer 15×28×1 |
| 8 | F01G00600001 | Oil Pump Idler Gear |
| 9 | GB0000896007 | E-ring 9 |
| 10 | F01F10603001 | Spacer 12×20×1 |
| 11 | F01G10005001 | Oil Pump Driven Gear |
| 12 | F01G10103001 | Oil Pump Shaft |
| 13 | GBT000309001 | Needle Roller 4×15.8 |
| 14 | F01000004001 | Bolt M6×20 |
| 15 | F01G10104001 | Oil Pump Cover |
| 16 | F01G10102001 | Inner Gerotor |
| 17 | F01G10101001 | Outer Gerotor |
| 18 | F01G00002001 | Oil Pickup Pipe |
| 19 | F01G00100001 | Strainer Filter |
| 20 | F01G00004001 | Strainer Filter Spring |
| 21 | F01G00006001 | O-ring 82×3.1 |
| 22 | F01G00003001 | Strainer Filter Cover |
| 23 | F01000005001 | Bolt M6×25 |
| 24 | F01F10003003 | Washer 14×21×1 |
| 25 | F01G00200001 | Oil Drain Plug |
| 26 | F01G00001001 | Oil Filter Adapter |
| 27 | F01G00500001 | Oil Filter |
| 28 | F01000002001 | Bolt M6×16 |
| 29 | F01G20100001 | Oil Cooler |
| 30 | F01F20508001 | O-ring 20×2.65 |
| 31 | F01G00700001 | Oil Pressure Sensor |
| 32 | F01G00300001 | Oil Regulator Valve Unit |
| 33 | E01-G104000-000-02 | Oil Regulator Valve Unit Cover |
| 34 | F01G00013001 | Banjo Bolt M8×30 |
| 35 | GBT000971010 | Gasket 8 |

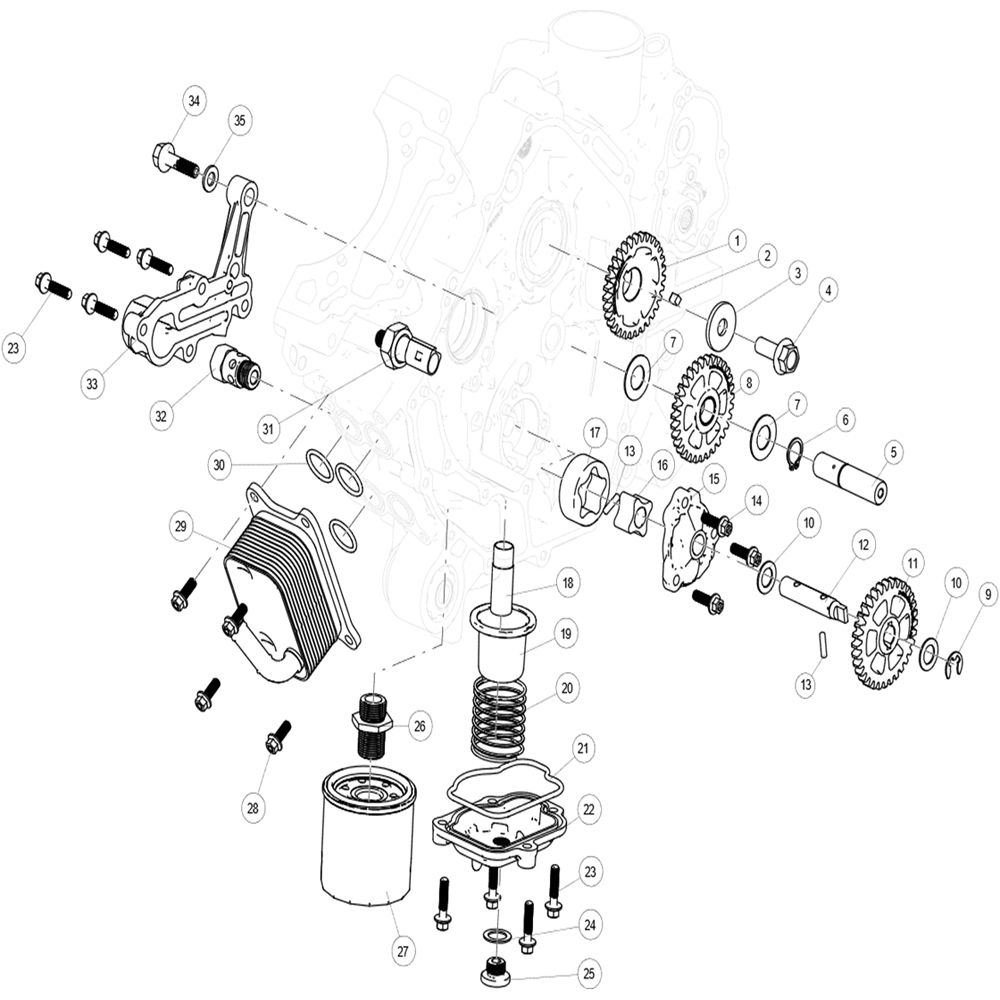

Segway AT5 Water Pump Diagram:
