Segway AT5 Rear Axle Differential Three, No Diff
CA$0.91
In stock
SKU
Segway AT5 Rear Axle Differential Three
Segway AT5 Rear Axle Differential Three, No Diff Parts:
Q02-R401028-000-00
| No. | Part Number | Part Name |
| 1 | Q01F40201001 | Hexagon Flange Bolt M8×25 |
| 2 | Q02-R401024-000-00 | Oil Seal 35×56×8 |
| 3 | Q02F00008001 | Plug M18×1.5 |
| 4 | Q02F00009001 | O-ring 16.4×2.5 |
| 5 | Q02-R401022-000-00 | Rear Axle Box Cover |
| 6 | Q02F04103001 | Air Tap |
| 7 | QCT006211003 | Clamp 11 |
| 8 | Q02F00005001 | Pipe 600 |
| 9 | Q02-R401027-000-00 | Cover Plate |
| 10 | Q02-R401028-000-00 | Screw M4 × 6 |
| 11 | BG002970-32908-001 | Roller Bearing 32908 |
| 12 | Q02-R401026-000-00 | Shim Φ 40 ×φ 50 × (0.7, 0.6, 0.5) |
| 13 | Q02-R102002-000-00 | Drive And Driven Bevel(No Diff) |
| 14 | Q02-R401023-000-00 | Rear Axle Box |
| 15 | Q02F00006001 | O-ring 13×1.5 |
| 16 | Q02F00014001 | Plug M14×1.5×11 |
| 17 | GBT000297001 | Tapered Roller Bearing 32006 |
| 18 | Q02-R101019-000-00 | Spacer Sleeve |
| 19 | Q02-R101020-000-00 | Rear Axle Drive Gear Gasket |
| 20 | Q02-R101028-000-00 | Disc Brake Fixing Bracket |
| 21 | Q02-R401013-000-00 | Washer Φ8 |
| 22 | GBT000701043 | Screw M8×35 |
| 23 | Q02-R101021-000-00 | Threaded Sleeve M30 × 1.5 |
| 24 | Q02-R101026-000-00 | O-ring Seal Φ 1.9 ×φ 23.5 |
| 25 | Q02F00004001 | Oil Seal 48×65×9 |
| 26 | BG008930-22000-F01 | Circlip 22 |
| 27 | Q02-R101029-000-00 | Universal Joint Fork(Brake Disc) |
| 28 | Q02-R101007-000-00 | Washer Φ14.5×φ35.2×4 |
| 29 | Q02-R101025-000-00 | Bolt M14 ×1.5 × 30 |
| 30 | Q02-R101027-000-00 | Universal Joint Fork 2 |
| 31 | Q02-R000001-000-00 | 450 Rear Axle Differential(Three) |

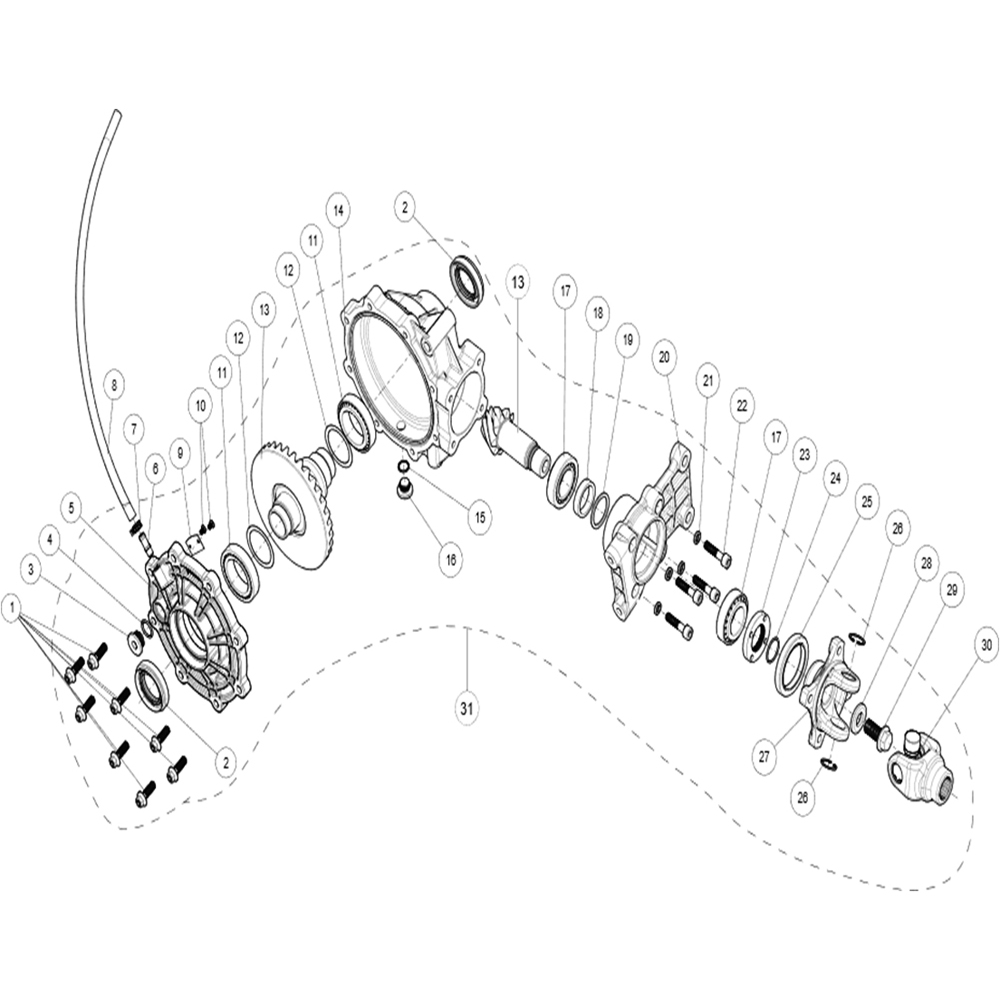

Segway AT5 Rear Axle Differential Three, No Diff Diagram:
