Segway AT5 Rear Axle Differential
CA$0.91
In stock
SKU Segway AT5 Rear Axle Differential
Segway AT5 Rear Axle Differential Parts:
| No. |
Part Number |
Part Name |
| 1 |
Q01F40201001 |
Hexagon Flange Bolt M8×25 |
| 2 |
Q03F40700001 |
Oil Seal 30×45×6.5 |
| 3 |
Q02F00008001 |
Plug M18×1.5 |
| 4 |
Q02F00009001 |
O-ring 16.4×2.5 |
| 5 |
Q02-R401015-000-00 |
Rear Axle Box Cover |
| 6 |
Q02-R401025-000-00 |
O-ring Φ 153 ×φ 2.5 |
| 7 |
BG002760-6011Z-001 |
Bearing 6011 |
| 8 |
Q02-R401021-000-00 |
Shim Φ 55 ×φ 65 × (0.7, 0.6, 0.5) |
| 9 |
Q02-R301021-000-00 |
Screw M10 × 1.25 × 16 |
| 10 |
Q02-R102003-000-00 |
Drive And Driven Bevel Gear (450) |
| 11 |
Q02-R301017-000-00 |
Half Shaft Bevel Gear Gasket |
| 12 |
Q02-R301016-000-00 |
Half Shaft Bevel Gear |
| 13 |
Q02-R301018-000-00 |
Planetary Gear Shaft |
| 14 |
Q02-R301015-000-00 |
Planetary Gear |
| 15 |
Q02-R301014-000-00 |
Bowl Shaped Gasket |
| 16 |
BG008791-40035-001 |
Pin 4 × 35 |
| 17 |
Q02-R301013-000-00 |
Differential Housing |
| 18 |
Q02-R401020-000-00 |
Shim Φ 50 ×φ 55 × (0.7, 0.6, 0.5) |
| 19 |
BG002760-61910-001 |
Ball Bearing 61910 |
| 20 |
Q02-R401017-000-00 |
Bearing Ring |
| 21 |
Q02-R301019-000-00 |
Clutch Transmission Pawl |
| 22 |
Q02-R401019-000-00 |
Reset Spring |
| 23 |
Q02-R301020-000-00 |
Shift Fork |
| 24 |
Q02-R401009-000-00 |
Support Bracket |
| 25 |
Q02-R401011-000-00 |
U-shaped Spring |
|
| No. |
Part Number |
Part Name |
| 26 |
Q02-R401008-000-00 |
Shift Fork Shaft Sleeve |
| 27 |
Q02-R401012-000-00 |
Sealing Ring |
| 28 |
Q02-R401007-000-00 |
Shift Fork Pin |
| 29 |
Q01R50200001 |
Solenoid Valve Assembly |
| 30 |
BG008930-55000-F01 |
Circlip 55 |
| 31 |
BG002760-16006-001 |
Ball Bearing 16006 |
| 32 |
Q02F00006001 |
O-ring 13×1.5 |
| 33 |
Q02F00014001 |
Plug M14×1.5×11 |
| 34 |
Q02F00005001 |
Pipe 600 |
| 35 |
QCT006211003 |
Clamp 11 |
| 36 |
Q03F40800001 |
Breathing Connector |
| 37 |
Q02-R401016-000-00 |
Rear Axle Box |
| 38 |
GBT000297001 |
Tapered Roller Bearing 32006 |
| 39 |
Q02-R101019-000-00 |
Spacer Sleeve |
| 40 |
Q02-R101020-000-00 |
Rear Axle Drive Gear Gasket |
| 41 |
Q02-R101021-000-00 |
Threaded Sleeve M30 × 1.5 |
| 42 |
Q02-R101026-000-00 |
O-ring Seal Φ 1.9 ×φ 23.5 |
| 43 |
Q02F00004001 |
Oil Seal 48×65×9 |
| 44 |
BG008930-22000-F01 |
Circlip 22 |
| 45 |
Q02-R101022-000-00 |
Universal Joint Fork |
| 46 |
Q02-R101007-000-00 |
Washer Φ14.5×φ35.2×4 |
| 47 |
Q02-R101025-000-00 |
Bolt M14 ×1.5 × 30 |
| 48 |
Q02-R101027-000-00 |
Universal Joint Fork 2 |
| 49 |
Q02-R000000-000-00 |
450 Rear Axle Differential |
|

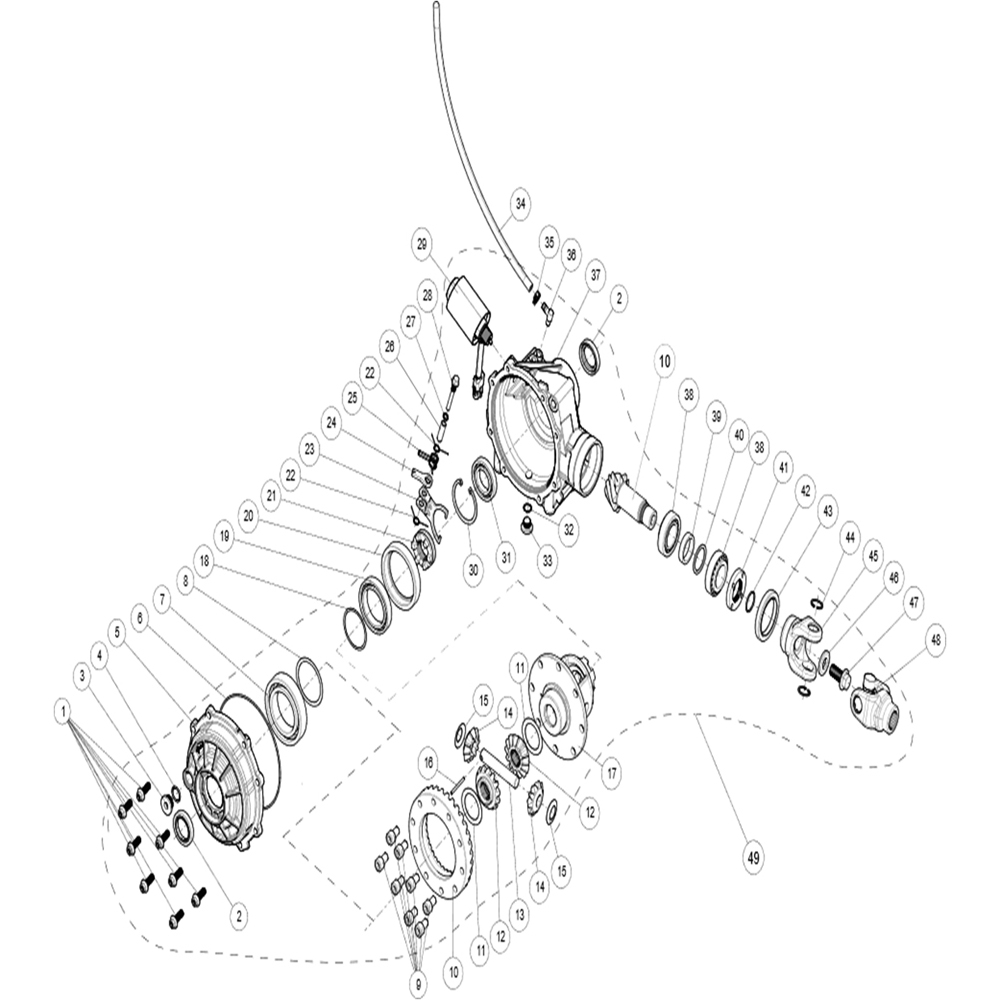

Segway AT5 Rear Axle Differential Diagram:
