Segway AT5 Rear Suspension System
Segway AT5 Rear Suspension System Parts:
| No. | Part Number | Part Name |
| 1 | GBT005789032 | Hexagon Flange Bolt M10×1.25×55 |
| 2 | A10-D250010-0B0-00 | Black Rear Shock Absorber |
| 4 | GBT061832001 | 2-non-metallic Hf Nut M10×1.25 |
| 5 | A10-D211010-DB0-00 | Black Upper Weld Arm Rl |
| 6 | A10-D221010-DB0-00 | Black Lower Weld Arm Rl |
| 7 | A10-D231010-DB0-00 | Black Upper Weld Arm Rr |
| 8 | A10-D241010-DB0-00 | Black Lower Weld Arm Rr |
| 9 | A10-D111011-000-00 | Arm Plug |
| 10 | A03A30001001 | Rocker Arm Bracket Buffer Bushing |
| 11 | GBT005789086 | Hexagon Flange Bolt M10×1.25×75 |
| 12 | A02H16200001 | Rear Arm Plug |
| 13 | A10-D201010-000-00 | Rl Wheel Axle Support |
| 15 | A10-D202010-000-00 | Rr Wheel Axle Support |
| 17 | A01D20102002 | Rl Wheel Bearing Tube |
| 18 | A01D20103001 | Rear Wheel Axle Support Bushing |
| 19 | A01D20104001 | Bushing Oil Seal Cover |
| 20 | GBT001152001 | Fuel Cup M6 |
| 21 | GBT005789038 | Hexagon Flange Bolt M10×1.25×100 |
| 22 | BJ102380-55032-001 | Hub Bearing Dac3005532-2rsc1 |
| 23 | BG008930-55000-F01 | Circlip 55 |
| 24 | A10-D260300-DB0-00 | Rear Stabilizer Bar |
| 25 | A01D26110001 | Left Stabilizer Bar Pin |
| 26 | A01D26120001 | Right Stabilizer Bar Pin |
| 27 | U01D16001001 | Front Balance Bar Buffer Block |
| 28 | U01D26002001 | Rear Sway Bar Mounting Bracket |
| 29 | GBT166741015 | Bolt M8×20 |

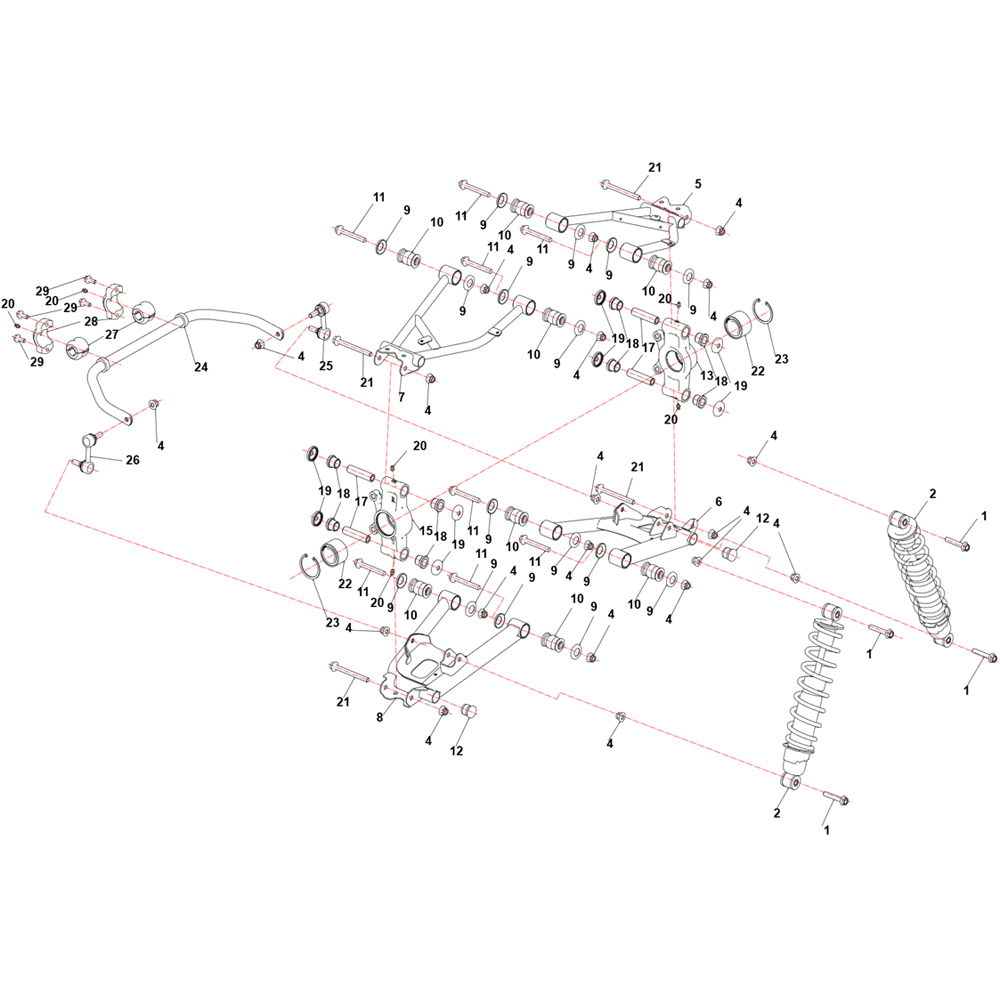

Segway AT5 Rear Suspension System Diagram:
