Segway AT5 Transmission System

Be the first to review this product
CA$0.91
In stock
SKU
Segway AT5 Transmission System


Segway AT5 Transmission System Parts:

No. Part Number Part Name
1 E01-F201010-000-01 Transmission Main Shaft
2 F01F20300001 Idle Shaft Assembly
3 F01F20301001 Idle Shaft
4 F01F20310001 Needle Roller Bearing K252913
5 F01F20302001 R Idle Gear
6 F01F20304001 Spacer 17×38×2
7 F01F20600001 Transmission Countershaft Assembly
8 F01F21000001 Drive & Driven Bevel Gear Housing Assy
9 F01F20403001 Nut M22×1
10 F01F20408001 Reduction Driven Gear
11 F01F20402001 Drive Bevel Gear Housing
12 F01000015001 Bolt M8×30
14 F01F20404001 Bearing Husing Plate
15 GBT026731001 Screw M8×25
16 F01F20405001 Drive Bevel Gear Shims(0.2)
16 F01F20405003 Drive Bevel Gear Shims(0.4)
16 F01F20405004 Drive Bevel Gear Shims(0.5)
16 F01F20405005 Drive Bevel Gear Shims(0.7)
17 F01F21010001 Drive&driven Bevel Gear Kit
18 GBT005789054 Bolt M12×1.25×30
19 F01F20509001 Spacer 12.5×32×5
20 F01F20508001 O-ring 20×2.65
21 F01F20507001 Transmission Shaft Flange
22 F01F20503001 Oil Seal 44×60×7
No. Part Number Part Name
23 F01000016001 Bolt M8×35
24 F01F20502001 Driven Bevel Gear Housing
25 F01F20505001 Driven Bevel Gear Shims(0.2)
25 F01F20505003 Driven Bevel Gear Shims(0.3)
25 F01F20505004 Driven Bevel Gear Shims(0.4)
25 F01F20505005 Driven Bevel Gear Shims(0.5)
26 F01F20504001 O-ring 88×2.8
27 GBT000276012 Bearing 6305
28 F01F20506001 Nut M65×1.5×8-lh
29 GBT000276010 Bearing 6207
31 F01C10001001 Nut M55×1.5×6-lh
32 GBT000276008 Bearing 6205
33 F01F20601001 Transmission Shaft
34 F01000013001 Bolt M6×20
35 F01F10700001 Gear Sensor
36 F01F10008001 O-ring 29.6×2.4
37 F01F10004001 Parking Brake Spring Plug
38 F01F10003001 Gasket 14×21×1.5
39 F01F10002001 Parking Brake Arm Spring
40 F01F10005001 Parking Brake Pin
41 F01F10100001 Shift Drum
42 GBT003081003 Ball 3/8
43 F01F10001001 Neutral Position Spring
44 F01F10007001 Neutral Position Spring Plug
No. Part Number Part Name
45 F01F10402001 Positioning Star
46 F01F10405001 Sector Gear Spacer
47 F01F10403001 Sector Gear
48 F01F10404001 Sector Gear Torsion Spring
49 F01F10407001 Spacer 6.2×22×2
50 F01F10406001 Bolt M6×40
51 F01F10010001 Shiftshaft Cover Gasket
52 F01F10009001 Shiftshaft Cover
53 F01F10011001 Oil Seal 15×25×5
54 F01000004001 Bolt M6×20
55 F01F10500001 Shift Shaft
57 GBT000894006 Circlip 12
58 F01F10203001 Shift Fork Spring Seat
59 F01F10210001 Shift Fork L
60 E01-F102010-000-01 Shift Rail L
61 F01F10310001 Shift Fork H/r
62 F01F10202001 Shift Fork
63 F01F10602001 Parking Brake Arm
64 F01F10603001 Spacer 12×20×1
65 F01F10601001 Parking Brake Arm Shaft
66 F01F10300001 Shift Rail H/r Assembly
67 F01F10600001 Parking Brake Arm Assembly

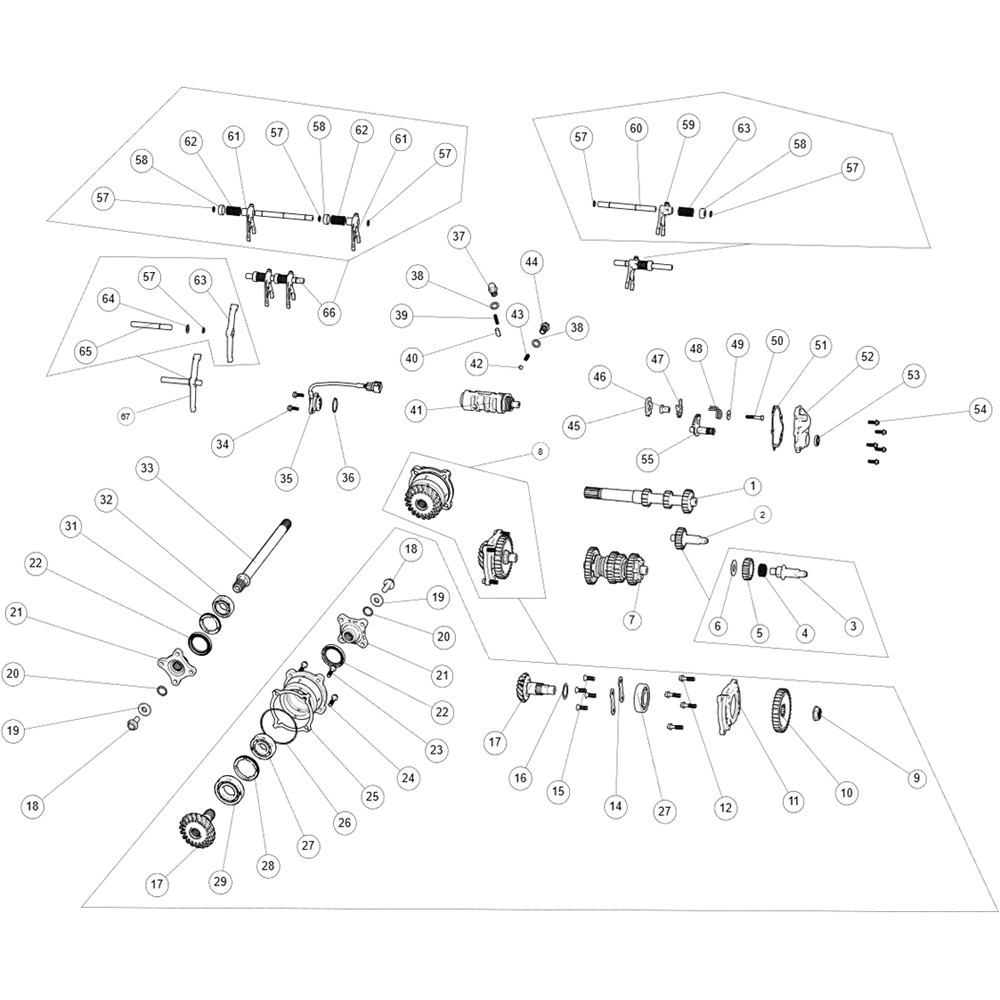

Segway AT5 Transmission System Diagram:
