Segway AT6 Air Intake System
CA$0.91
In stock
SKU
Segway AT6 Air Intake System
Segway AT6 Air Intake System Parts:
| No. | Part Number | Part Name |
| 1 | A01A20050003 | Cvt Air Intake Pipe |
| 2 | T01000002001 | Rubber Ring |
| 3 | QCT006211005 | Clamp,springband 16 |
| 4 | U01A21111001 | Leaking Seal |
| 5 | QCT000620007 | A-band, Transmission Hose 80 |
| 6 | A01A00400001 | Cvt Air Pipe Joint |
| 7 | T01000005001 | Waist Type Positioning Rubber Sleeve |
| 8 | A01A21000002 | Air Filter Assy |
| 9 | GBT005789011 | Bolt M6×35 |
| 10 | T03000007002 | Bolt M6×16 |
| 11 | A01A22002001 | Air Filter Intake Pipe Front Assy |
| 12 | A01A23002001 | Air Filter Intake Pipe Joint |
| 13 | A02-A020002-0B0-00 | Cvt Air-outlet Pipe(Long Version) |
| 14 | A01-A200000-000-01 | Cvt Air-outlet Pipe(Short Version) |
| 15 | A02-C000600-DB0-00 | Engine Air-outlet Pipe Seat |
| 16 | A01A21007001 | Strainer |
| 17 | QCT000620006 | A-band, Transmission Hose 70 |
| 18 | QCT006211008 | Clamp,springband 30 |
| 19 | A01-A210010-000-00 | Engine Exhaust Pipe |
| 20 | GBT005789006 | Hexagon Flange Bolt M6×12 |
| 21 | L-E01-C1000001 | Rubber Plug |

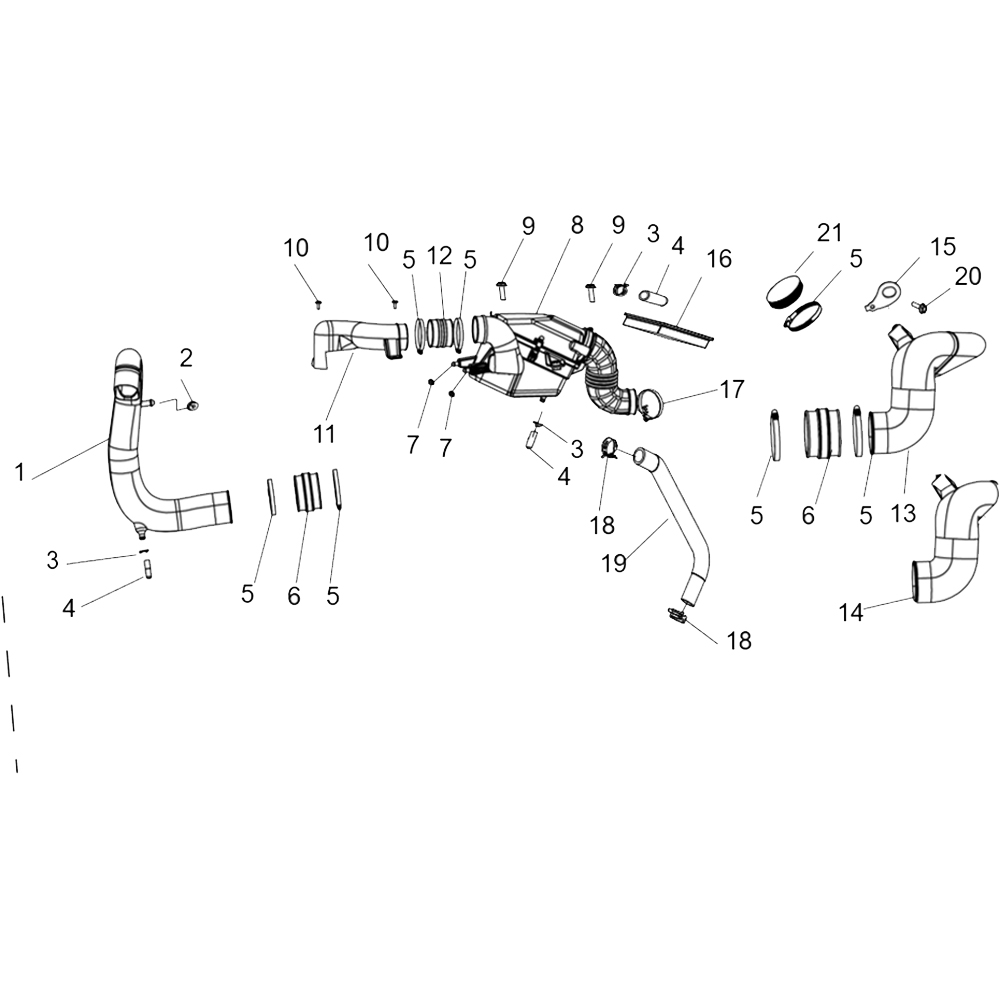

Segway AT6 Air Intake System Diagram:
