Segway AT6 Braking System(Three)
Segway AT6 Braking System(Three) Parts:
| No. | Part Number | Part Name |
| 1 | A02E11000001 | Three Brake Hydraulic Brake |
| 2 | A03E11200001 | Fr Brake Assy |
| 3 | A03E11210001 | Fr Caliper Brake |
| 4 | A03E11120001 | Front Brake Pad |
| 5 | A03E11012001 | Gasket |
| 6 | A03E11011001 | Bolt Inner Oil |
| 7 | A03E11020001 | Fr Brake Oil Tube |
| 8 | A03E11005001 | Hydraulic Induction Switch |
| 9 | A03E11010001 | Fl Brake Oil Pipe |
| 10 | A03E11110001 | Fl Caliper Brake |
| 11 | A03E11100001 | Fl Brake Assy |
| 12 | A03E11500001 | Foot Brake Main Pump |
| 13 | A03E11040001 | Front Brake Oil Tube |
| 14 | A03E11600001 | Hydraulic Distribution Valve |
| 15 | A03E11050001 | Handbrake Oil Tube |
| 16 | GBT061871002 | All Metal Hexagonal Flange Lock Nut M6 |
| 17 | A03E11701001 | Brake Handle |
| 18 | A03E11702001 | Slotted Flat Head Step Screw M6×35 |
| 19 | A03E11700001 | Handbrake Pump |
| 20 | A03E11800001 | Brake Oil Cup |
| 21 | A03E11803001 | Clamp,oil Cup Pipe |
| 22 | A03E11801001 | Oil Cup Pipe A |
| 23 | A03E11802001 | Oil Cup Pipe B |
| 24 | A03E11804001 | Foot Brake Main Pump Tube Clip |
| 25 | A02E11030001 | Rear Brake Oil Tube |
| 26 | A02E11310001 | Rear Caliper Brake |
| 27 | A02E11320001 | Rear Brake Pad |
| 28 | A02E11300001 | Rear Brake Assy |
| 29 | GBT005789006 | Hexagon Flange Bolt M6×12 |
| 30 | GBT005789026 | Hexagon Flange Boltm10×1.25×25 |
| 31 | GBT005789016 | Bolt M8×25 |
| 32 | GBT000701007 | Hexagon Socket Head Screw M10×1.25×50 |
| 33 | GBT005789063 | Bolt M6×45 |

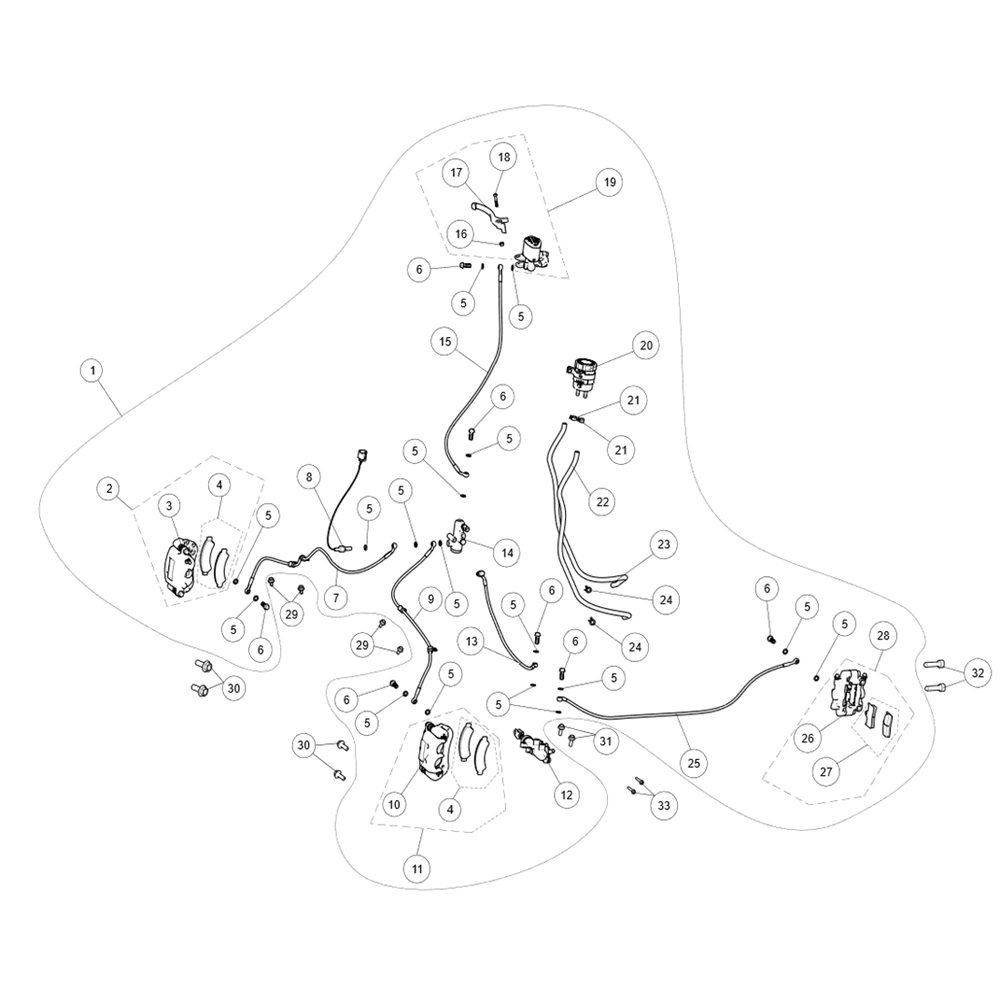

Segway AT6 Braking System(Three) Diagram:
