Segway AT6 Cooling System
Segway AT6 Cooling System Parts:
| No. | Part Number | Part Name |
| 1 | A01A41101001 | I-shaped Rubber Parts |
| 2 | A01A41102001 | T-sleeve |
| 3 | A01A41120001 | Radiator Body Assembly |
| 4 | A01A41103001 | T-shaped Cushion Rubber |
| 5 | A01A41130001 | Fan Assembly |
| 6 | GBT005789010 | Hexagon Flange Bolt M6×25 |
| 7 | A01A41120002 | Radiator Body Assembly(V) |
| 8 | A01A41130002 | Fan Assembly(V) |
| 9 | GBT005789007 | Bolt M6×16 |
| 10 | A01A43040001 | Reserve Water Tank |
| 11 | A01A40007001 | Radiator Overflow Tube |
| 12 | QCT006211003 | Clamp,springband 11 |
| 13 | QCT006211018 | Clamp,springband 32 |
| 14 | A01A40001001 | Radiator Water Outlet Front-tube |
| 15 | A01A40020001 | Radiator Water Inlet Front-tube |
| 16 | QCT006211008 | Clamp,springband 30 |
| 17 | T05000004001 | Clamp, 25 |
| 18 | A01A40002001 | Radiator Water Outlet Al-pipe |
| 19 | A01A40003001 | Radiator Water Outlet Rear Pipe |
| 20 | A01A40005001 | Radiator Water Inlet Al-pipe |
| 21 | A01A40004001 | Radiator Water Inlet Rear-tube |
| 22 | A01A41100001 | Motor Radiator(Y) |
| 23 | A01A41100002 | Motor Radiator(V) |

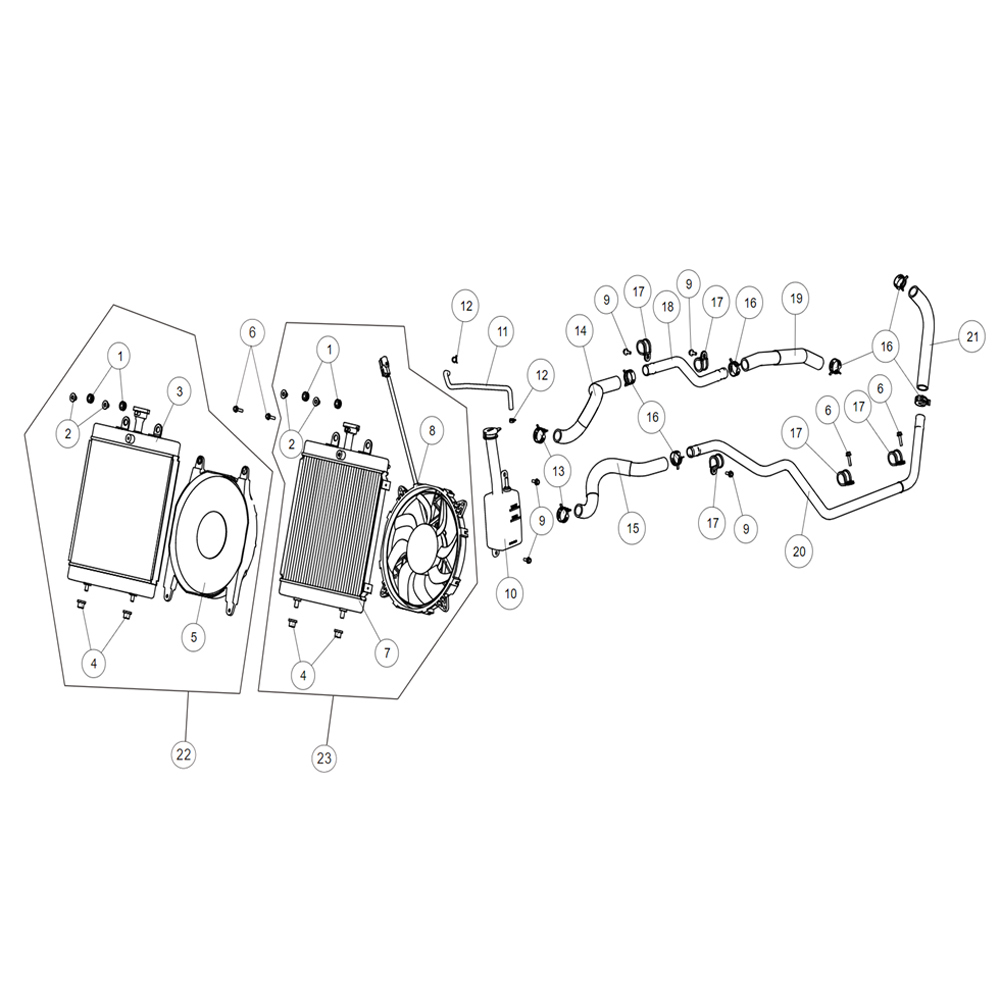

Segway AT6 Cooling System Diagram:
