Segway AT6 Electric Appliance
CA$0.91
In stock
SKU
Segway AT6 Electric Appliance
Segway AT6 Electric Appliance Parts:
| No. | Part Number | Part Name |
| 1 | GBT005789013 | Hexagon Flange Bolt M8×12 |
| 2 | U01M02200001 | Horn |
| 3 | U01M04200001 | 12v Power Output |
| 4 | U01M04300001 | USB Power Output |
| 5 | GBT005789006 | Hexagon Flange Bolt M6×12 |
| 6 | A01M04200001 | Starting Relay |
| 7 | GBT005789008 | Hexagon Flange Bolt M6×20 |
| 8 | U01M04400001 | Wiring Terminal |
| 9 | A01M04500001 | Battery 32ah |
| 10 | A01M04300001 | Rectifier |
| 11 | GBT005789011 | Hexagon Flange Bolt M6×35 |
| 12 | U01M04500001 | Trailer Power Socket |
| 13 | GBT000818007 | Cross Recessed Hexagon Bolts M5×30 |
| 14 | GBT166741006 | Hexagon Flange Bolt M6×12 |
| 15 | T10000001003 | Square Reflector |
| 16 | A01M57100001 | Power Switch Lock |
| 17 | T10000001001 | Circular Reflector |
| 18 | GBT000971009 | Washer 6 |
| 19 | GBT006170003 | 1-hexagonal Nut M6 |
| 20 | A01M43000001 | Fuel Pump |
| 21 | U01A51400001 | Gasket, Oil Pump |
| 22 | S01M04100001 | Flasher |
| 23 | U01M33000001 | Buzzer |
| 24 | GBT000818020 | Cross Recessed Hexagon Bolts M3×12 |
| 25 | GBT000845014 | Cross Recessed Hexagon Screw St4.8×16 |
| 26-1 | S01M34000004 | T-box(Australia,South America) |
| 26-2 | S01M34000003 | T-box(Mexico) |
| 26-3 | S01M34000002 | T-box(North America) |
| 27 | A02M41000001 | Ecu |

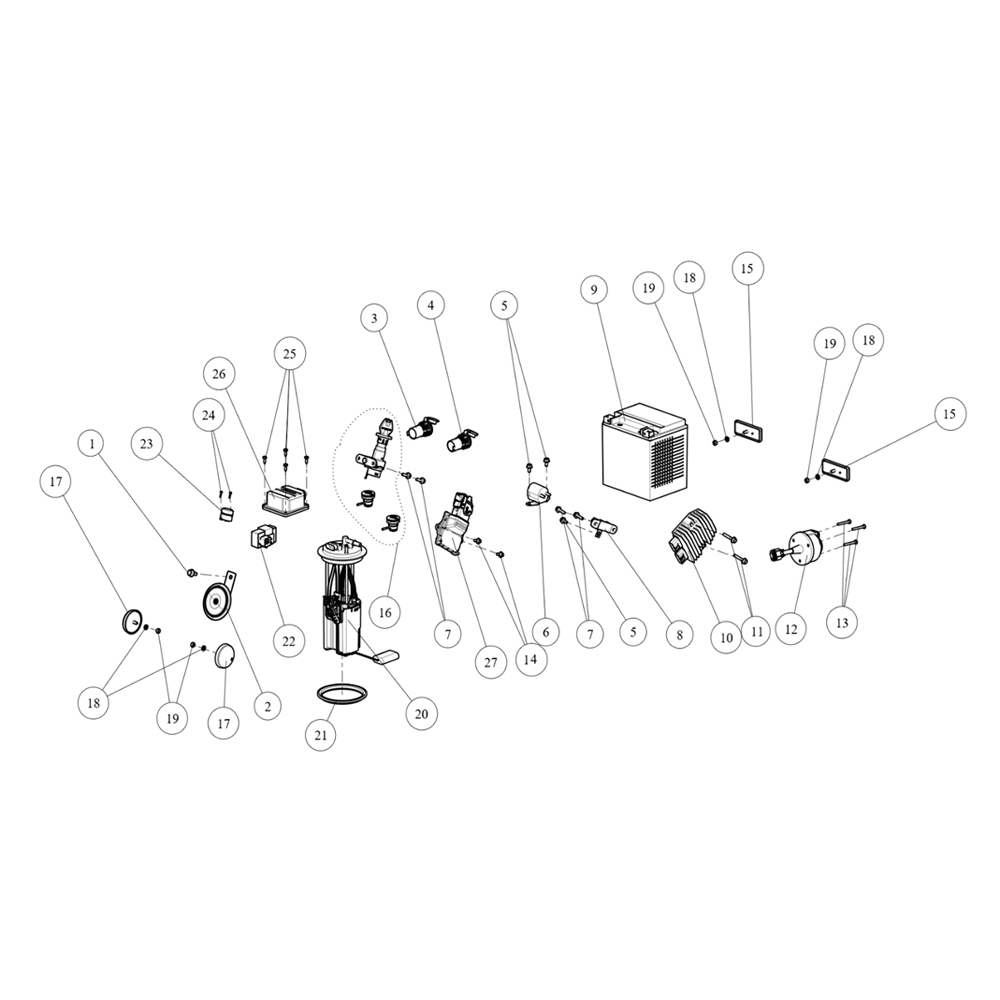

Segway AT6 Electric Appliance Diagram:
