Segway AT6 JN Front Axle Differential
CA$0.91
In stock
SKU Segway AT6 JN Front Axle Differential
Segway AT6 JN Front Axle Differential Parts:
| No. |
Part Number |
Part Name |
| 1 |
Q02F20007002 |
Gasket(0.1) |
| 1 |
Q02F20007003 |
Gasket(0.15) |
| 1 |
Q02F20007004 |
Gasket(0.2) |
| 2 |
GBT000276035 |
Bearing 61912 |
| 3 |
GBT090741007 |
Bolt M10×16 |
| 4 |
Q02F20201001 |
Differential Housing |
| 5 |
Q02F20202001 |
Differential Bevel Gear |
| 6 |
Q02F20205001 |
Differential Planetary Gear Shaft |
| 7 |
Q02F20204001 |
Differential Planetary Gear |
| 8 |
GBT008791001 |
Spring-type Straight Pin 4×30 |
| 9 |
Q02F20203001 |
Front Axle Bevel Gear |
| 10 |
Q02F20004001 |
Anti-rotation Gasket |
| 11 |
Q02F20005001 |
Disc Spring 40×53×1 |
| 12 |
Q02F20006002 |
Shims 40×57×0.1 |
| 12 |
Q02F20006003 |
Shims 40×57×0.2 |
| 12 |
Q02F20006004 |
Shims 40×57×0.5 |
| 13 |
Q02F20100001 |
Drive&driven Bevel Gear Kit |
| 14 |
GBT000276037 |
Bearing 6007 |
| 15 |
Q02F20003002 |
Shims(0.1) |
| 15 |
Q02F20003003 |
Shims(0.2) |
| 15 |
Q02F20003004 |
Shims(0.5) |
| 16 |
Q02F40203001 |
Front Axle Gear Box |
| 17 |
Q02F00009001 |
O-ring 16.4×2.5 |
| 18 |
Q02F00008001 |
Plug M18×1.5 |
| 19 |
Q01F50300002 |
Vehicle Speed Sensor |
| 20 |
Q02F00007001 |
O-ring 19.4×2.3 |
| 21 |
Q02F00003001 |
Oil Seal 24×38×8 |
| 22 |
Q02F00006001 |
O-ring 13×1.5 |
|
| No. |
Part Number |
Part Name |
| 23 |
F02C10008001 |
Plug M14 |
| 24 |
Q02F40202001 |
Needle Bearing Hk152112 |
| 25 |
Q02F10200001 |
Universal Joint Combination |
| 26 |
GBT000893008 |
Circlip 62 |
| 27 |
Q02F00004001 |
Oil Seal 48×65×9 |
| 29 |
Q02F00002001 |
O-ring 14×6.8 |
| 30 |
Q02F00001001 |
Locked Nut M14×1.5 |
| 31 |
Q02F10203001 |
Semicircular Opening Circlip |
| 32 |
Q02F10210001 |
Universal Joint |
| 33 |
Q02F00005001 |
Vent Pipe |
| 34 |
QCT006211003 |
Spring Band Hose Clamps |
| 35 |
Q02F04103001 |
Air Tap |
| 36 |
GBT090741006 |
Bolt M8×28 |
| 37 |
Q02F40103001 |
Plug M8×10 |
| 38 |
Q02F30113001 |
Cylindrical Pin 5×75 |
| 39 |
Q02F40104001 |
Front Axle Gear Box Cover |
| 40 |
Q02F40102001 |
O-ring 140×2.65 |
| 41 |
GBT000276036 |
Bearing 16007 |
| 42 |
Q02F20001001 |
Divide Device Connection |
| 43 |
Q02F20002001 |
Sliding Sleeve |
| 44 |
Q02F30111001 |
Fork |
| 45 |
Q02F30112001 |
Spline |
| 46 |
Q02F50001001 |
O-ring 72.7×2.4 |
| 47 |
Q02F51000001 |
Transfer Case Assembly |
| 48 |
Q02F00011001 |
Clamp(12×75) |
| 49 |
GBT090741004 |
Bolt M8×20 |
| 50 |
Q02F00000002 |
Front Differential Assy |
|
|

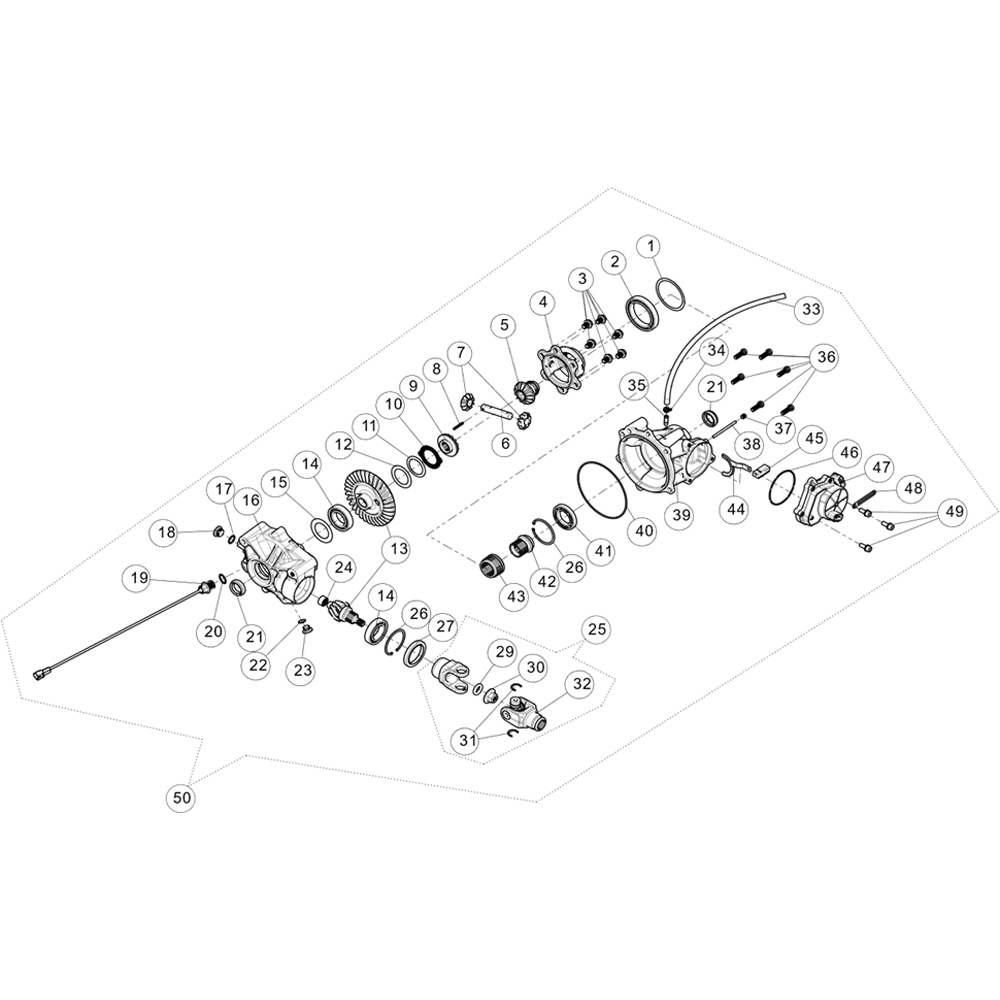

Segway AT6 JN Front Axle Differential Diagram:
