Segway AT6 JN Rear Axle(No Differential, No Abs)
CA$0.91
In stock
SKU
Segway AT6 JN Rear Axle(No Differential No Abs)
Segway AT6 JN Rear Axle(No Differential,No Abs) Parts:
| No. | Part Number | Part Name |
| 1 | GBT000701024 | Hexagon Socket Head Cap Screw M8×45 |
| 2 | Q02-R401013-000-00 | Washer Φ8 |
| 3 | Q02-R101006-000-00 | Bolt M14×30 |
| 4 | Q02-R101007-000-00 | Washer Φ14.5×φ35.2×4 |
| 5 | Q02-R102001-000-00 | Universal Joint |
| 6 | Q02-R101009-000-00 | O Ring Φ24×φ3 |
| 7 | Q02F00004001 | Oil Seal 48×65×9 |
| 8 | Q02-R101002-000-00 | Thread Sleeve Gear Ring |
| 9 | BG002970-32206-001 | Bearing 32206e |
| 10 | Q02-R402002-000-00 | Drive Gear Bearing Seat |
| 11 | Q02-R401003-000-00 | O-ring Φ3 ×φ 70 |
| 12 | Q02-R101004-000-00 | Adjusting Spacer Sleeve |
| 13 | Q02-R101005-000-00 | Gasket |
| 14 | Q02-R101003-000-00 | Spacer Sleeve |
| 15 | Q02-R101000-000-00 | Drive And Driven Bevel Gear Kit |
| 16 | Q03F40800001 | Breathing Connector |
| 17 | Q02-R402000-000-00 | Air Bag |
| 18 | Q02-R401002-000-00 | O-ring Φ35×φ56×8 |
| 19 | Q02-R401004-000-00 | Plug M20×1.5×12 |
| 20 | Q02-R401005-000-00 | O-ring Φ2.3×φ19.4 |
| 21 | Q02-R401001-000-00 | Rear Axle Box |
| 22 | Q02F00006001 | O-ring 13×1.5 |
| 23 | Q02F00014001 | Plug M14×1.5×11 |
| 24 | BG002970-32010-001 | Bearing 32010e |
| 25 | Q02-R301011-000-00 | Adjustment Gasket |
| 26 | Q02-R201000-000-00 | Connecting Plate |
| 27 | Q02-R301008-000-00 | Bolt M10 × 1.25 × 20 |
| 28 | Q02-R401014-000-00 | O-ring Φ 160 ×φ 2.5 |
| 29 | Q02-R403000-000-00 | Rear Axle Cover |
| 30 | Q01F40201001 | Hexagon Flange Bolt M8×25 |
| 31 | Q02R00000009 | Jn Rear Axle Assy(No Diff, No Abs) |

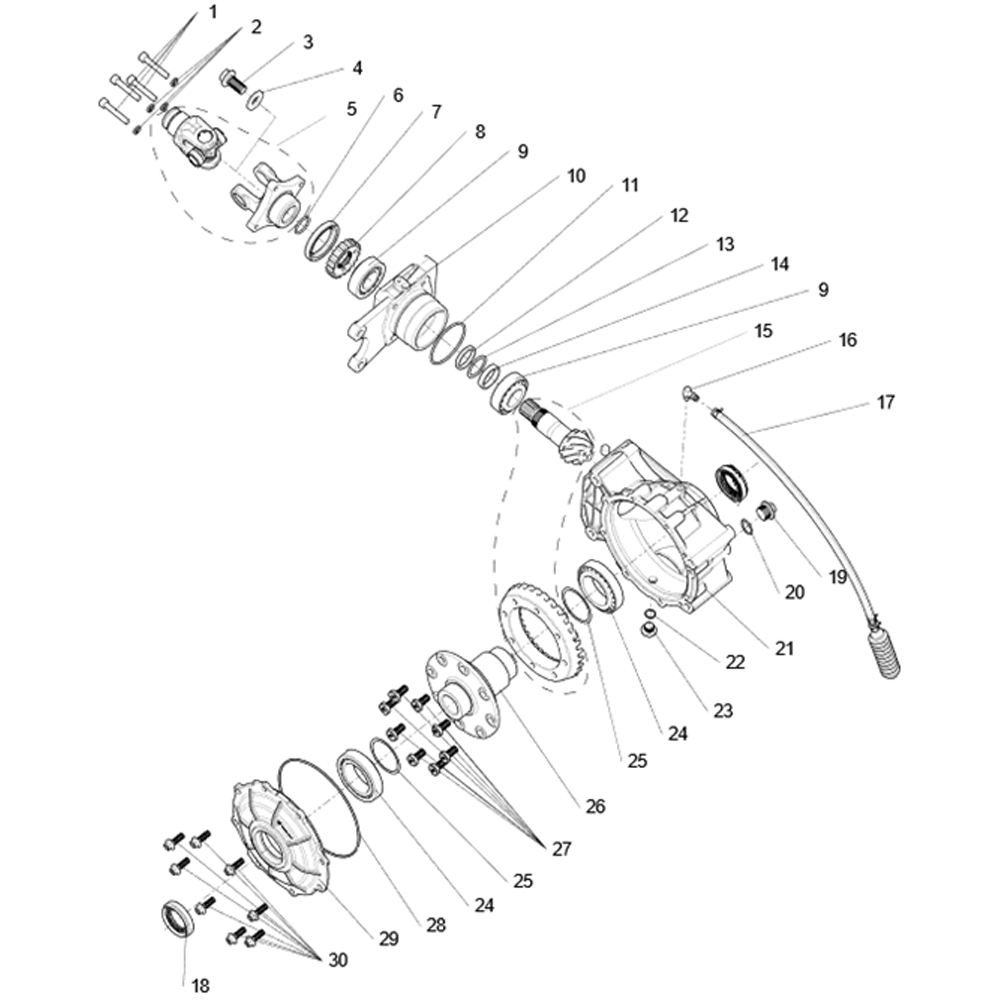

Segway AT6 JN Rear Axle(No Differential,No Abs) Diagram:
