Name: Segway AT6 JN Rear Axle(With Differential , no Abs)
Price: 0.91 CAD
Availability: InStock

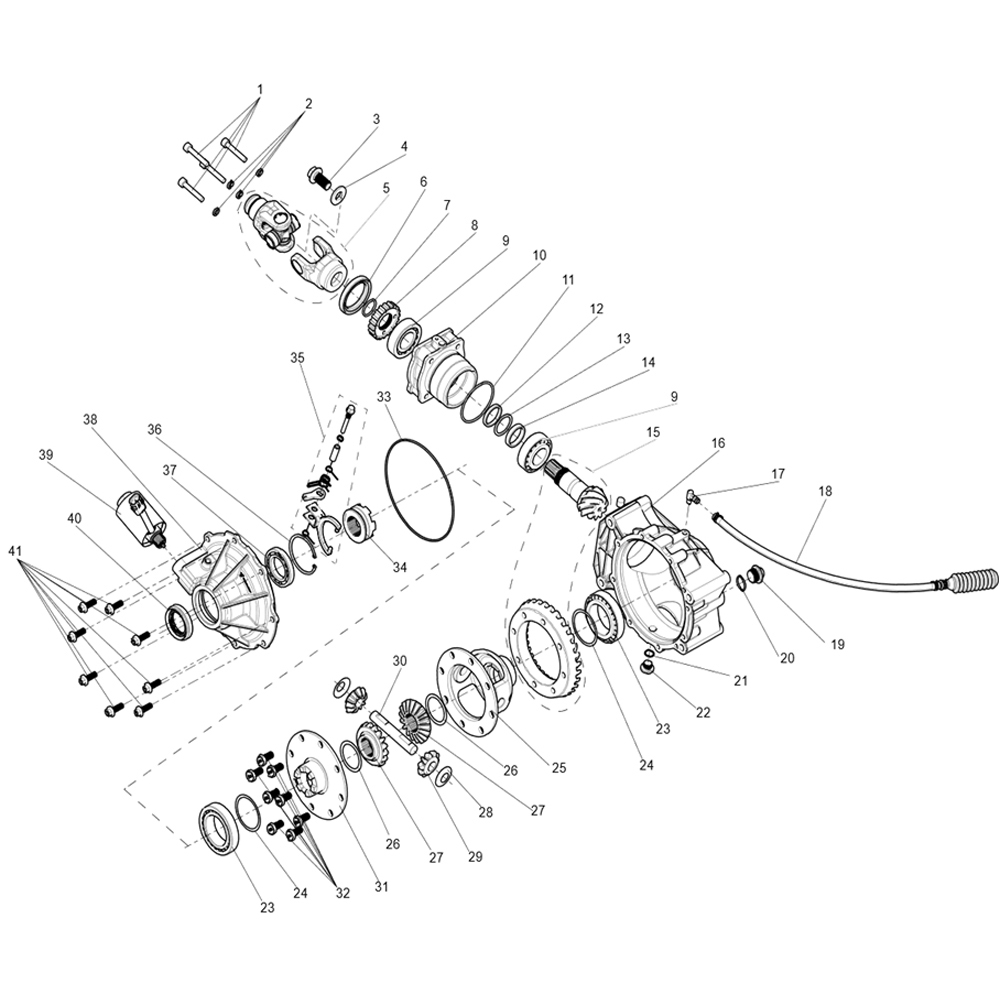

Segway AT6 JN Rear Axle(With Differential , no Abs) Parts:

No.	Part Number	Part Name
1	GBT000701024	Hexagon Socket Head Cap Screw M8×45
2	Q02-R401013-000-00	Washer Φ8
3	Q02-R101007-000-00	Washer Φ14.5×φ35.2×4
4	Q02-R101006-000-00	Bolt M14×30
5	Q02-R102000-000-00	Univerasl Joint
6	Q02F00004001	Oil Seal 48×65×9
7	Q02-R101009-000-00	O Ring Φ24×φ3
8	Q02-R101002-000-00	Thread Sleeve Gear Ring
9	BG002970-32206-001	Bearing 32206e
10	Q02-R402001-000-00	Drive Gear Bearing Seat
11	Q02-R401003-000-00	O-ring Φ3 ×φ 70
12	Q02-R101004-000-00	Adjusting Spacer Sleeve
13	Q02-R101005-000-00	Gasket
14	Q02-R101003-000-00	Spacer Sleeve
15	Q02-R101000-000-00	Drive And Driven Bevel Gear Kit
16	Q02-R401001-000-00	Rear Axle Box
17	Q03F40800001	Breathing Connector
18	Q02-R402000-000-00	Air Bag
19	Q02-R401004-000-00	Plug M20×1.5×12
20	Q02-R401005-000-00	O-ring Φ2.3×φ19.4
21	Q02F00006001	O-ring 13×1.5

No.	Part Number	Part Name
22	Q02F00014001	Plug M14×1.5×11
23	BG002970-32010-001	Bearing 32010e
24	Q02-R301011-000-00	Adjustment Gasket
25	Q02-R301002-000-00	Rear Axle Differential Housing
26	Q02-R301007-000-00	Shim Φ 40.2 ×φ 50
27	Q02-R301005-000-00	Half Shaft Gear
28	Q02-R301004-000-00	Gasket
29	Q02-R301003-000-00	Planet Gear
30	Q02-R301006-000-00	Planetary Gear Shaft
31	Q02-R301001-000-00	Driven Gear Connecting Plate
32	Q02-R301008-000-00	Bolt M10 × 1.25 × 20
33	Q02-R401014-000-00	O-ring Φ 160 ×φ 2.5
34	Q02-R301009-000-00	Clutch Transmission Gear
35	Q02-R404000-000-00	Shift Fork Assy
36	GBT000893008	Circlip 62
37	GBT000276036	Bearing 16007
38	Q02-R401006-000-00	Rear Axle Cover
39	Q01R50200001	Solenoid Valve Assembly
40	Q02-R401002-000-00	O-ring Φ35×φ56×8
41	Q01F40201001	Hexagon Flange Bolt M8×25
42	Q02R00000007	Jn Rear Axle Assy(With Differential, no Abs)
