Segway AT6 Parking System(Three)
CA$0.91
In stock
SKU
Segway AT6 Parking System(Three)
Segway AT6 Parking System(Three) Parts:
| No. | Part Number | Part Name |
| 1 | A03E10001001 | Front Brake Disc |
| 2 | A03E10004001 | Bolt,front Brake Disc |
| 3 | A02F00010001 | Throttle Cable |
| 4 | A03E21100003 | Parking Cable |
| 5 | A02E22000001 | T3 Parking Handle |
| 6 | A03E12201001 | Nylon Bushing |
| 7 | A03E12110002 | Weld Brake Pedal |
| 8 | GBT000971007 | A- Washer 14 |
| 9 | GB0000896005 | Open Retainer Ring 12 |
| 10 | GBT000701002 | Bolt M10×1.25×20 |
| 11 | GB0000093005 | Spring Washer 10 |
| 12 | A01E10001001 | Rear Brake Disc |
| 13 | A01E23000001 | Parking Brake Assembly |
| 14 | A01E23010001 | Parking Caliper Brake |
| 15 | A01E23020001 | Parking Brake Pad |
| 16 | GBT061832001 | 2-non-metallic Hf Nut M10×1.25 |

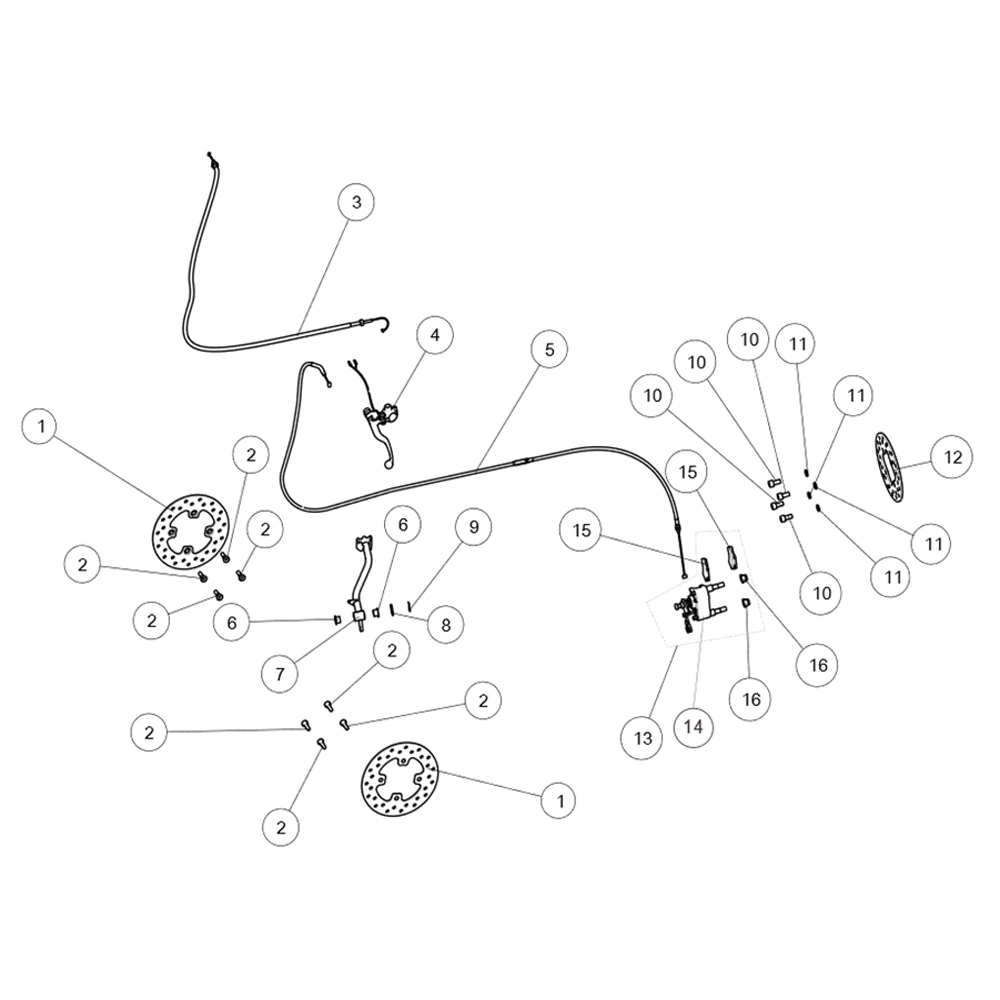

Segway AT6 Parking System(Three) Diagram:
