Name: Segway AT6 Power Installation Long Version
Price: 0.91 CAD
Availability: InStock

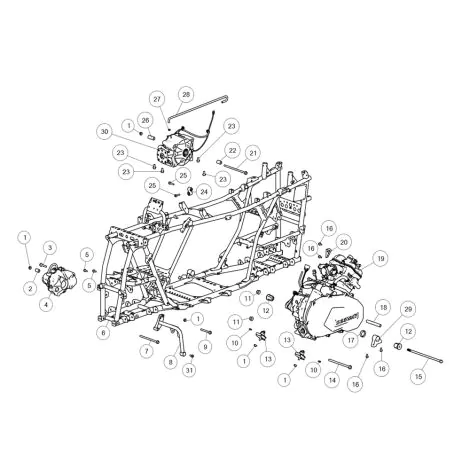

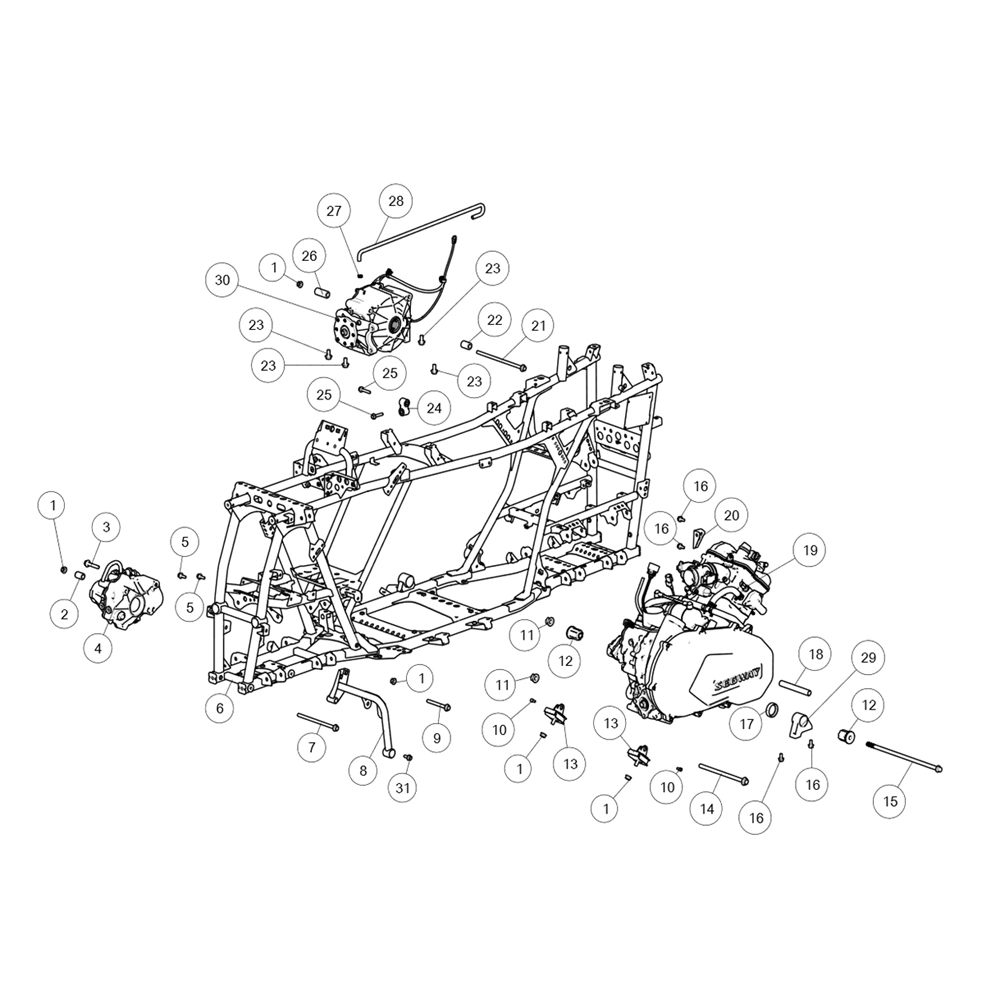

Segway AT6 Power Installation Long Version Parts:

No.	Part Number	Part Name
1	GBT061872001	Nut M10×1.25
2	T02000021002	Front Axle Right Bushing
3	GBT005789031	Hexagon Flange Bolt M10×1.25×50
4	Q02F00000001	Front Axle Assembly(With Differential)
4	Q02F00000002	Jn Front Axle Assembly(With Differential)
5	GBT005789015	Hexagon Flange Bolt M8×20
6	A02-B000000-DB0-04	Frame Welding Components（brushless, L）
7	GBT005789109	Hexagon Flange Bolt M10×1.25×180
8	A02C13000002	Front Axle Bracket Assembly
9	GBT005789036	Hexagon Flange Bolt M10×1.25×90
10	GBT000701026	Hexagon Socket Head Screw M6×12
11	GBT061872003	Nut M12×1.25
12	A02A10100001	Isolator
13	A01A10010001	Engine Buffer Block
14	GBT005789050	Hexagon Flange Bolt M12×1.25×210
15	A01A10030001	Engine Shaft 1
16	GBT005789014	Hexagon Flange Bolt M8×16
17	A02A10001001	Seal
18	A02-C000300-DB0-00	Tube

No.	Part Number	Part Name
19	E01000000002	Engine Assembly
19	E01-0000001-000-01	Engine Assembly(Heat Part)
20	A02C01000002	Engine Hanging
21	GBT005789064	Hexagon Flange Bolt M10×1.25×215
22	T02000005002	Rear Axle Left Bushing
23	GBT005789025	Hexagon Flange Bolt M10×1.25×20
24	U01A30100001	Hanging Buffer Sleeve
25	GBT005789019	Hexagon Flange Bolt M8×40
26	T02000006002	Rear Axle Right Bushing
27	QCT006211003	Clamp,springband 11
28	A02A10002001	Rear Axle Snorkel
29	A01C04000002	Installation Piece
30	Q02R00000007	Jn Rear Axle Assy(With Differential, no Abs)
30	Q02R00000009	Jn Rear Axle Assy(No Diff, no Abs)
30	Q01R00000004	Rear Axle Assy(With Differential, no Abs)
30	Q02R00000002	Rear Axle Assy(No Diff,no Abs,four )
30	Q02R00000004	Rear Axle Assy(No Diff,no Abs,three)
31	GBT005789027	Hexagon Flange Bolt M12×1.25×30
