Name: Segway AT6 Power Installation Short Version
Price: 0.91 CAD
Availability: InStock

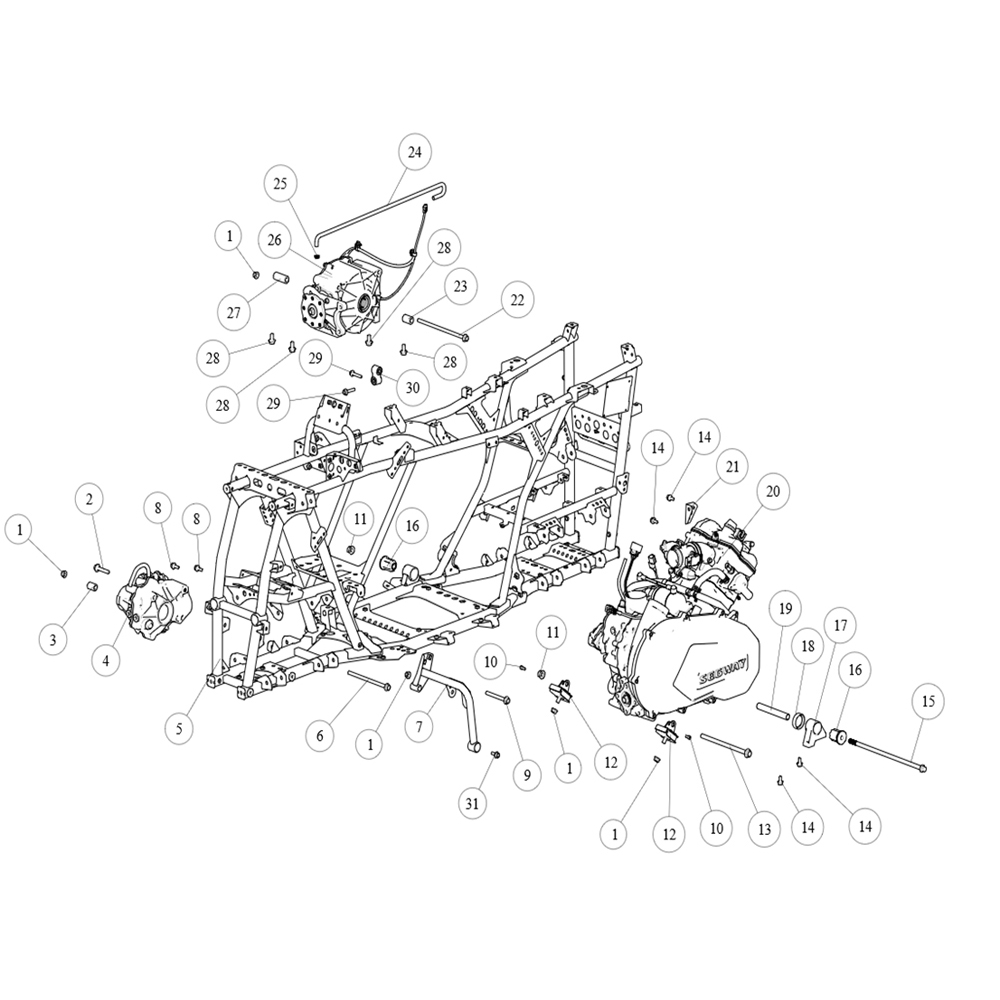

Segway AT6 Power Installation Short Version Parts:

No.	Part Number	Part Name
1	GBT061872001	Nut M10×1.25
2	GBT005789031	Hexagon Flange Bolt M10×1.25×50
3	T02000021002	Front Axle Right Bushing
4	Q02F00000001	Front Axle Assembly(With Differential)
5	A01-B000000-DB0-04	Frame Welding Components（brushless, S）
6	GBT005789109	Hexagon Flange Bolt M10×1.25×180
7	A02C13000002	Front Axle Bracket Assembly
8	GBT005789015	Hexagon Flange Bolt M8×20
9	GBT005789036	Hexagon Flange Bolt M10×1.25×90
10	GBT000701026	Hexagon Socket Head Screw M6×12
11	GBT061872003	Nut M12×1.25
12	A01A10010001	Engine Buffer Block
13	GBT005789050	Hexagon Flange Bolt M12×1.25×210
14	GBT005789014	Hexagon Flange Bolt M8×16
15	A01A10030001	Engine Shaft 1
16	A02A10100001	Isolator
17	A01C04000002	Installation Piece

No.	Part Number	Part Name
18	A02A10001001	Seal
19	A02-C000300-DB0-00	Tube
20	E01000000002	Engine Assembly(Cvtech Cvt)
20	E01-0000001-000-01	Engine Assembly(Heat Part)
21	A02C01000002	Engine Hanging
22	GBT005789064	Hexagon Flange Bolt M10×1.25×215
23	T02000005002	Rear Axle Left Bushing
24	A02A10002001	Rear Axle Snorkel
25	QCT006211003	Clamp, spring band 11
26	Q01R00000004	Rear Axle Assy(With Differential, no Abs)
26	Q02R00000002	Rear Axle Assy(No Diff,no Abs,four )
26	Q02R00000004	Rear Axle Assy(No Diff,no Abs,three)
27	T02000006002	Rear Axle Right Bushing
28	GBT005789025	Hexagon Flange Bolt M10×1.25×20
29	GBT005789019	Hexagon Flange Bolt M8×40
30	U01A30100001	Hanging Buffer Sleeve
31	GBT005789027	Hexagon Flange Bolt M12×1.25×30
