Segway AT6 Rear Axle(With Differential ,no Abs)

Be the first to review this product
CA$0.91
In stock
SKU
Segway AT6 Rear Axle(With Differential no Abs)


Segway AT6 Rear Axle(With Differential ,no Abs) Parts:

No. Part Number Part Name
1 GBT005789027 Hexagon Flange Bolt M12×1.25×30
2 Q01R40900001 Flat Washer10.5×39×6
3 Q01R41100001 O-ring Seal 25×2.65
4 Q01R40300001 Flange, transmission Shaft
5 Q01F40201001 Hexagon Flange Bolt M8×25
6 F01F20503001 Oil Seal 44×60×7
7 GBT000297002 Tapered Roller Bearing 33006
8 Q01R10300001 Clearance Adjusting Pad(0.3)
8 Q01R10300002 Clearance Adjusting Pad(0.4)
8 Q01R10300003 Clearance Adjusting Pad(0.5)
8 Q01R10300004 Clearance Adjusting Pad(0.6)
8 Q01R10300005 Clearance Adjusting Pad(0.7)
9 Q01R10400001 Spacer, sector Gear
10 Q01R40400001 Drive Gear Shaft Seat
11 Q01R41200001 O-ring Seal 61.5*2.65
12 GBT000297001 Tapered Roller Bearing 32006
13 Q01R10100000 Drive&driven Bevel Gear Assy
14 Q01R10200001 Drive Gear Adjusting Pad(0.3)
14 Q01R10200002 Drive Gear Adjusting Pad(0.4)
14 Q01R10200003 Drive Gear Adjusting Pad(0.5)
14 Q01R10200004 Drive Gear Adjusting Pad(0.6)
14 Q01R10200005 Drive Gear Adjusting Pad(0.7)
15 Q01F40600001 Oil Seal 37×55×7
16 Q01R40100003 Rear Axle Shell
17 F01G00005001 O-ring 13.8×2.5
18 F02C10008001 Plug M14
19 F01G00200001 Engine Drain Plug M14
20 GBT000276013 Bearing 16012
No. Part Number Part Name
21 Q01R40800001 Limit Liner
22 Q01R40700001 Needle Roller Bearing Axk 130x170x5
23 GBT005789055 Hexagon Flange Bolt M10×1.0×20
24 Q01R31600001 Axle Shaft Bevel Gear Gasket (0.8)
24 Q01R31600002 Axle Shaft Bevel Gear Gasket (1)
24 Q01R31600003 Axle Shaft Bevel Gear Gasket (1.2)
25 Q01R30500000 Axle Shaft Bevel Gear Ⅱ Plug Assy
26 Q01R31700003 Planetary Gear Liner
27 Q01R30900003 Planetary Gear
28 GBT00119A001 Cylindrical Pin 5×28
29 Q01R32300001 Planetary Gear Shaft Ⅳ
30 Q01R30100000 Axle Shaft Bevel Gear Ⅰ Plug Assy
31 Q01R30700001 Differential Housing
32 GBT000276032 Bearing 6019
33 Q01R32200001 Combination Sets
34 Q01R32000001 Torsion Spring
35 Q01R31901001 Fork Assembly
36 Q01R32100001 Cylindrical Pin 6x60
37 GBT000276015 Bearing 16008
38 T03000007002 Hexagon Socket Mushroom Head Screw
39 Q01R31800001 Bearing Seat
40 Q01R40500001 Rectangular Gasket 180×185×3
41 GBT00119A002 Cylindrical Pin 4×8
42 Q01F41300001 Breathing Joint
43 Q01R40200003 Rear Axle End Cover
44 Q01R50200001 Solenoid Valve Assembly
45 F02C10008001 Rear Axle Assy(With Differential, no Abs)

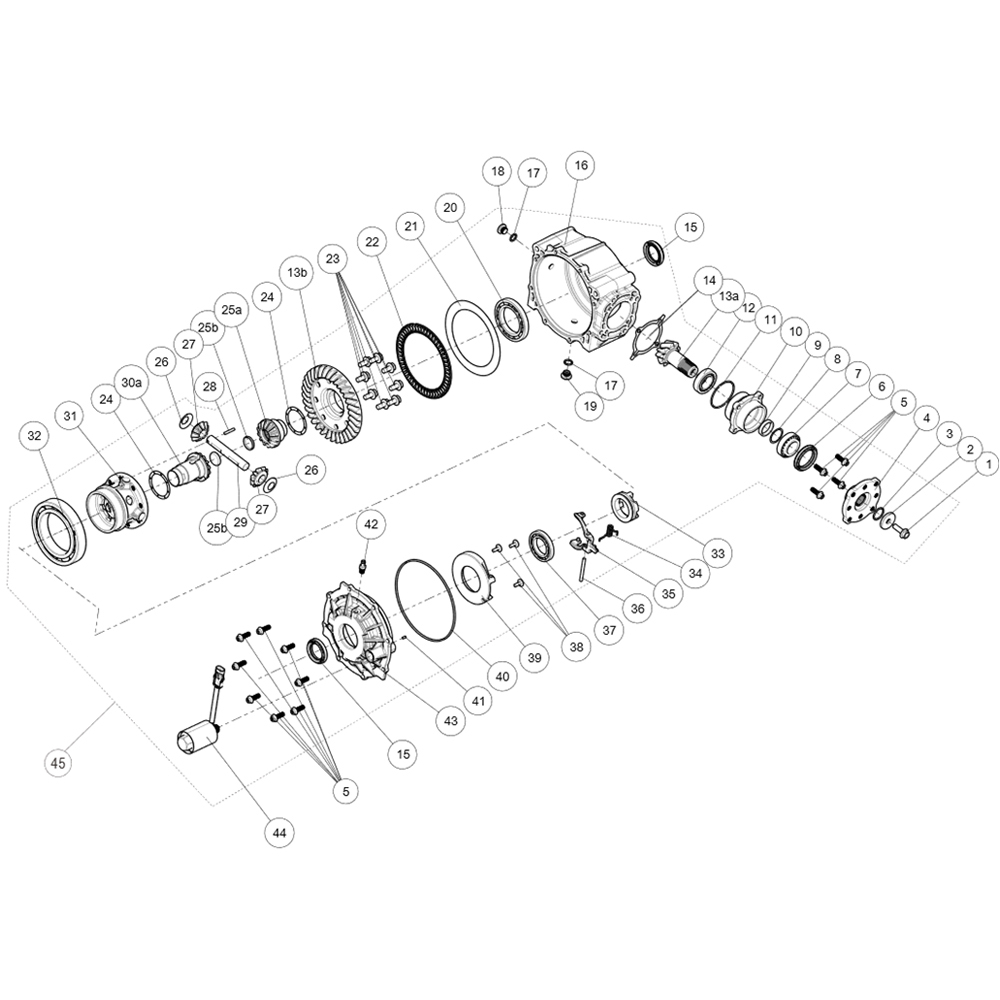

Segway AT6 Rear Axle(With Differential ,no Abs) Diagram:
