Segway AT6 Steering System( Non-EPS)
CA$0.91
In stock
SKU
Segway AT6 Steering System( Non-EPS)
Segway AT6 Steering System( Non-EPS) Parts:
| No. | Part Number | Part Name |
| 1 | A03F16600001 | Handlebar |
| 2 | GBT000701024 | Hexagon Socket Head Cap Screw M8×45 |
| 3 | A03F16500003 | Tube-handlebar |
| 4 | A03F16300001 | Cover Handlebar Upper |
| 5 | A03F16400001 | Cover Handlebar Lower |
| 6 | A03F15000001 | Non-eps Steering Shaft |
| 7 | A01-F162001-000-00 | Steering Sphere |
| 8 | A03F16100001 | Locking Plate Sphere |
| 9 | GBT005789014 | Hexagon Flange Bolt M8×16 |
| 10 | GBT005789016 | Bolt M8×25 |
| 11 | GBT000893001 | Hole With Elastic Retainer 42 |
| 12 | GBT000304001 | Joint Bearing Ge25es-2rs |
| 13 | A01F12000002 | Joint Bearing Housing |
| 14 | GBT061831003 | Non-metallic Hexagon Flange Nut M8 |
| 15 | GBT000091006 | Cotter Pin 2.5 X 25 |
| 16 | GBT009459001 | 1-hexagon Slotted Nut M10 |
| 17 | A03F11001001 | Steering Arm |
| 18 | GBT005789017 | Hexagon Flange Bolt M8×30 |
| 19 | T02000004001 | Steering Arm Gasket |
| 20 | A03F12100001 | Steering Rod Assembly |

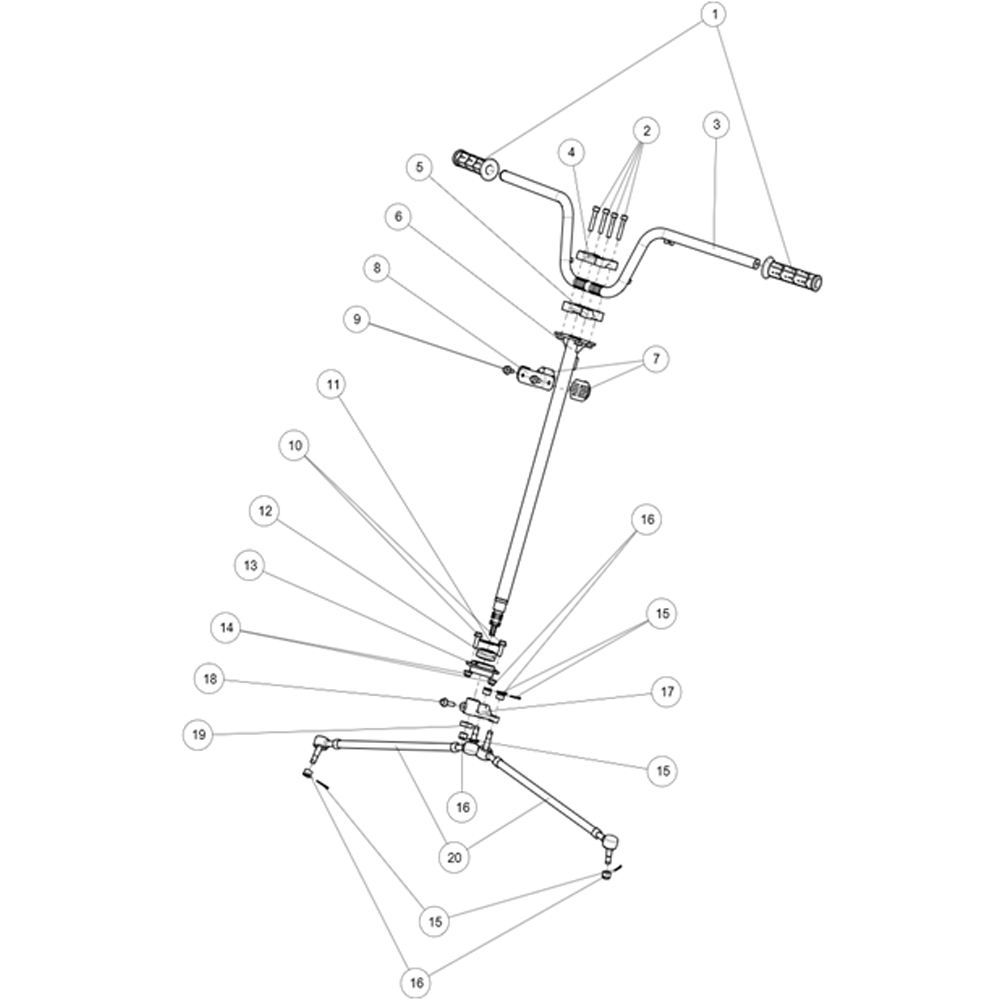

Segway AT6 Steering System( Non-EPS) Diagram:
