Segway AT6 Suspension System(Front)
CA$0.91
In stock
SKU
Segway AT6 Suspension System(Front)
Segway AT6 Suspension System(Front) Parts:
| No. | Part Number | Part Name |
| 1 | A01D10102001 | Right Steering Knuckle Assy |
| 2 | GBT005789032 | Hexagon Flange Bolt M10×1.25×55 |
| 3-2 | A01D13001001 | Peak Green Upper Weld Arm Fr Assy |
| 3-3 | A01D13002001 | Red Upper Weld Arm Fr Assy |
| 3-5 | A01D13004001 | Blue Upper Weld Arm Fr Assy |
| 4-2 | A01D15001002 | Red Front Shock Absorber |
| 4-3 | A01D15001003 | Blue Front Shock Absorber |
| 4-4 | A01D15001004 | Peak Green Front Shock Absorber |
| 5-2A | A01D15002002 | Red Front Gas Shock Absorber |
| 5-3A | A01D15002003 | Blue Front Gas Shock Absorber |
| 5-4A | A01D15002004 | Peak Green Front Gas Shock Absorber |
| 6 | GBT061832001 | 2-non-metallic Hf Nut M10×1.25 |
| 7-2 | A01D11001001 | Peak Green Upper Weld Arm Fl Assy |
| 7-3 | A01D11002001 | Red Upper Weld Arm Fl Assy |
| 7-5 | A01D11004001 | Blue Upper Weld Arm Fl Assy |
| 8 | A01D10101001 | Left Steering Knuckle Assy |
| 9 | GBT009459001 | 1-hexagon Slotted Nut M10 |
| 10-2 | A01D12001001 | Peak Green Lower Weld Arm Fl Assy |
| 10-3 | A01D12002001 | Red Lower Weld Arm Fl Assy |
| 10-5 | A01D12004001 | Blue Lower Weld Arm Fl Assy |
| 11 | GBT005789029 | Hexagon Flange Bolt M10×1.25×40 |
| 12 | GBT005789035 | Hexagon Flange Bolt M10×1.25×85 |
| 13-2 | A01D14001001 | Peak Green Lower Weld Arm Fr Assy |
| 13-3 | A01D14002001 | Red Lower Weld Arm Fr Assy |
| 13-5 | A01D14004001 | Blue Lower Weld Arm Fr Assy |
| 14 | GBT000091006 | Cotter Pin 2.5 X 25 |
| 15 | GBT005789036 | Hexagon Flange Bolt M10×1.25×90 |

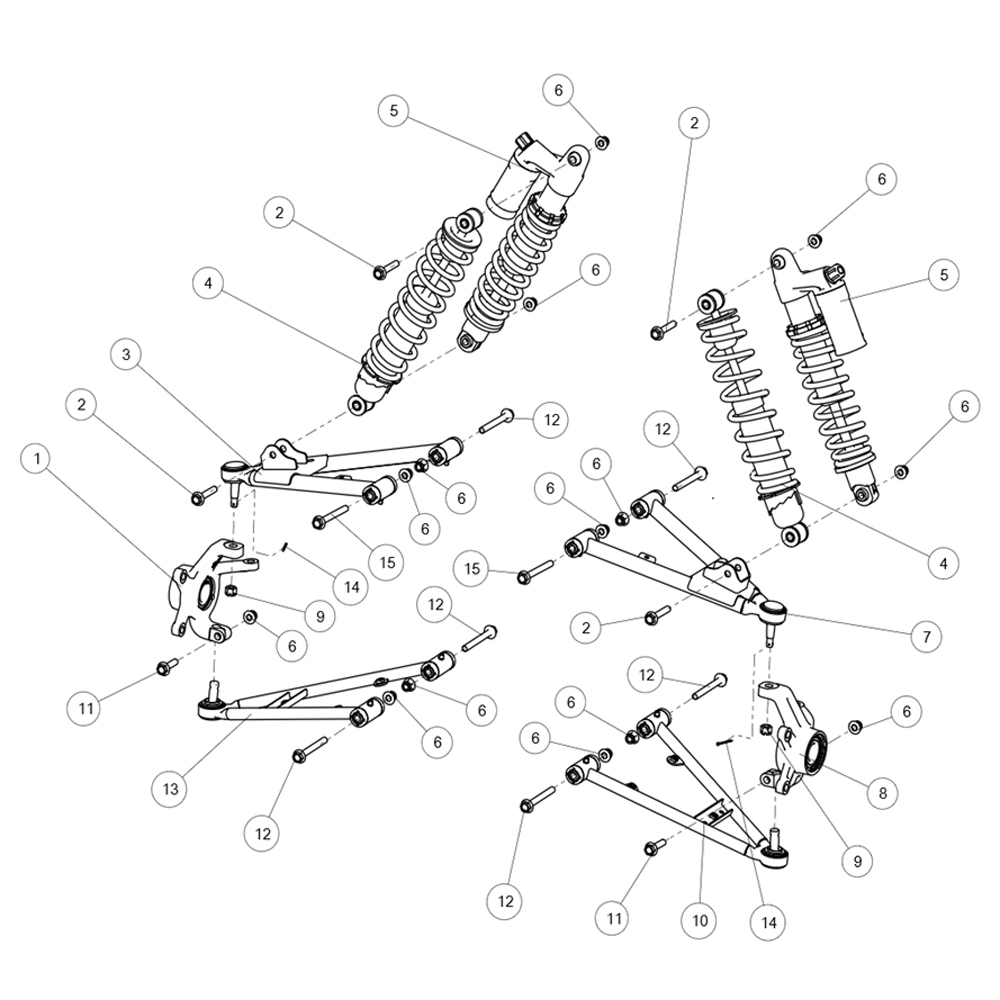

Segway AT6 Suspension System(Front) Diagram:
