Name: Segway AT6 Suspension System(Rear)
Price: 0.91 CAD
Availability: InStock

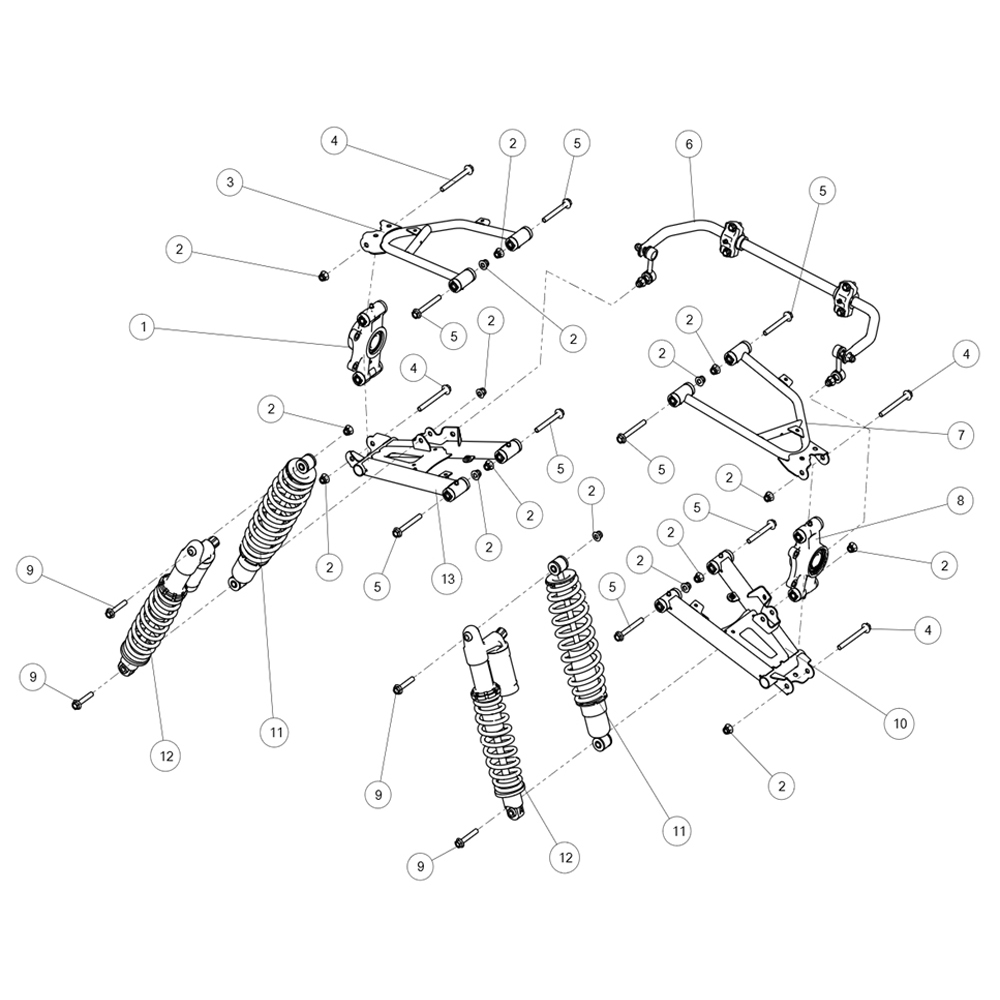

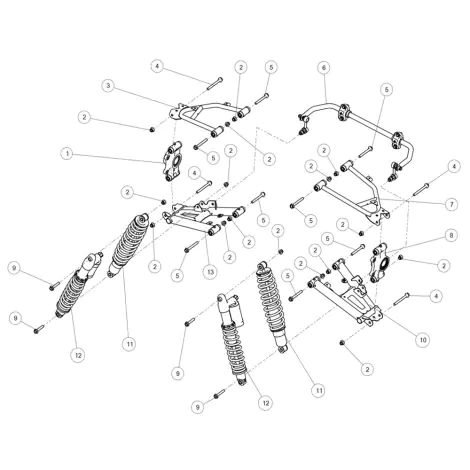

Segway AT6 Suspension System(Rear)Parts:

No.	Part Number	Part Name
1	A01D20100002	Rl Wheel Bearing Assy
2	GBT061832001	2-non-metallic Hf Nut M10×1.25
3-2	A01D21001001	Peak Green Upper Weld Arm Rl Assy
3-3	A01D21002001	Red Upper Weld Arm Rl Assy
3-5	A01D21004001	Blue Upper Weld Arm Rl Assy
3	A01D21006001	Black Upper Weld Arm Rl Assy
4	GBT005789038	Hexagon Flange Bolt M10×1.25×100
5	GBT005789035	Hexagon Flange Bolt M10×1.25×85
6	A01D26030001	Rear Stabilizer Bar
7-2	A01D23001001	Peak Green Upper Weld Arm Rr Assy
7-3	A01D23002001	Red Upper Weld Arm Rr Assy
7-5	A01D23004001	Blue Upper Weld Arm Rr Assy
7	A01D23006001	Black Upper Weld Arm Rr Assy
8	A01D20200002	Rr Wheel Bearing Assy
9	GBT005789032	Hexagon Flange Bolt M10×1.25×55
10-2	A01D24001001	Peak Green Lower Weld Arm Rr Assy
10-3	A01D24002001	Red Lower Weld Arm Rr Assy
10-5	A01D24004001	Blue Lower Weld Arm Rr Assy
10	A01D24006001	Black Lower Weld Arm Rr Assy
11-2	A01D25001002	Red Rear Shock Absorber
11-3	A01D25001003	Blue Rear Shock Absorber
11-4	A01D25001004	Peak Green Rear Shock Absorber
11	A01D25001001	Black Rear Shock Absorber
12-2A	A01D25002002	Red Rear Gas Shock Absorber
12-3A	A01D25002003	Blue Rear Gas Shock Absorber
12	A01D25002001	Black Rear Gas Shock Absorber
12-4A	A01D25002004	Peak Green Rear Gas Shock Absorber
13-2	A01D22001001	Peak Green Lower Weld Arm Rl Assy
13-3	A01D22002001	Red Lower Weld Arm Rl Assy
13-5	A01D22004001	Blue Lower Weld Arm Rl Assy
13	A01D22006001	Black Lower Weld Arm Rl Assy
