Segway AT6 The Fuel System
Segway AT6 The Fuel System Parts:
| No. | Part Number | Part Name |
| 1 | A01A50100001 | Fuel Tank |
| 2 | A01A51080001 | Damping Gasket Under Tank |
| 3 | A01A51040001 | Tank Install Rubber Sleeve |
| 4 | S01A50103001 | Tank Install Flanging Bushing |
| 5 | GBT005789065 | Hexagon Flange Bolt M6×30 |
| 6 | QCT000620006 | A-band, Transmission Hose 70 |
| 7 | A01-A510900-000-01 | Fuel Tank Port Hose |
| 8 | U01A51302001 | Fuel Tank Port |
| 9 | A02A12000001 | Fuel Tank Cover |
| 10 | T05000006001 | Aingle Ear Clamp 16.5 |
| 11 | A01-A510600-000-00 | Engine High-Pressure Fuel Hose |
| 12 | U01A52010001 | Fuel Filter Component |
| 13 | A01-A510200-000-00 | Fuel Tank High-Pressure Hose |
| 14 | T07000001003 | Push-button Quick Install Plug 9.49-i(A) |
| 15 | U01A51500001 | Cap, install Oil Pump |
| 16 | QCT006211005 | Clamp, springband 16 |
| 17 | A01-A520001-000-00 | Air Pipe |
| 18 | A01A51100001 | Fuel Line Assembly |

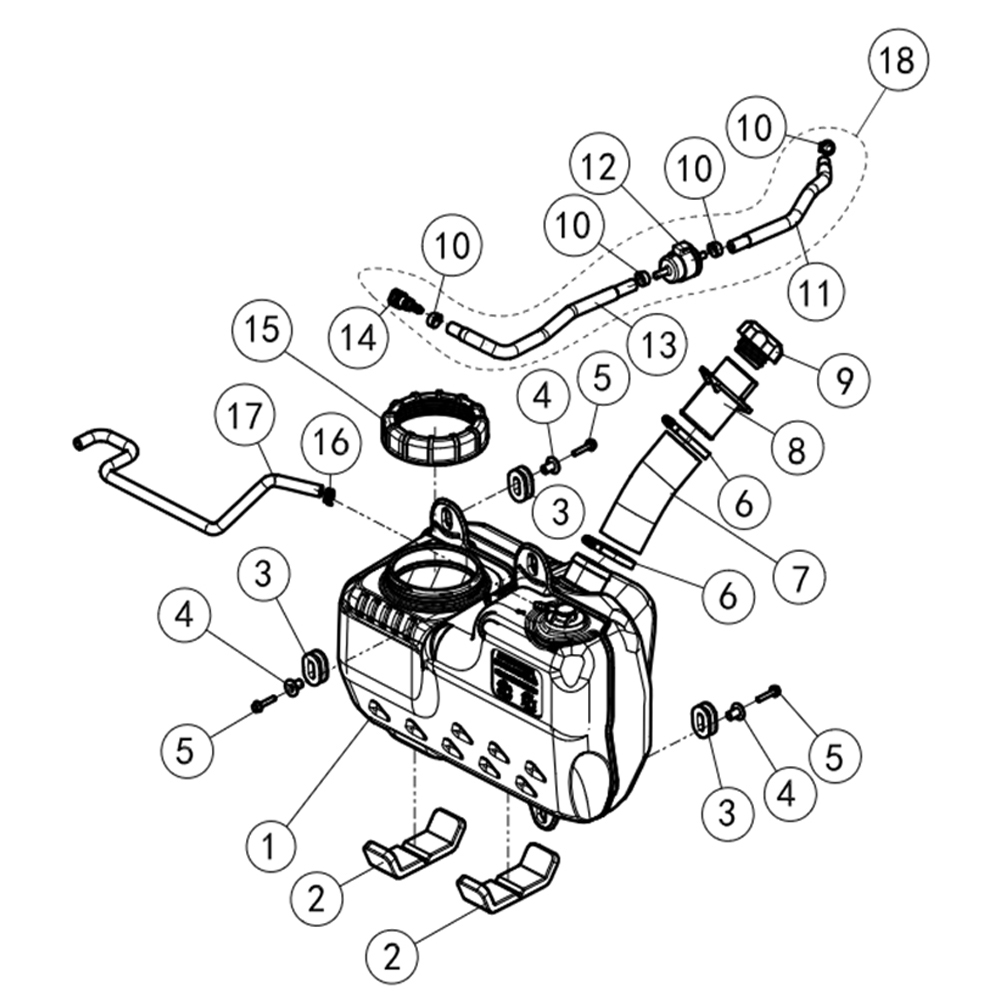

Segway AT6 The Fuel System Diagram:
