Segway AT6 Upper Weld Arm (FR)
CA$0.91
In stock
SKU
Segway AT6 Upper Weld Arm (FR)
Segway AT6 Upper Weld Arm (FR) Parts:
| No. | Part Number | Part Name |
| 1 | U01D11002001 | Front Arm Tube |
| 2 | U01D11001001 | Arm Buffer Sleeve |
| 3-2 | A01D13101001 | Peak Green Upper Weld Arm Fr |
| 3-3 | A01D13102001 | Red Upper Weld Arm Fr |
| 3-5 | A01D13104001 | Blue Upper Weld Arm Fr |
| 4 | GBT000894004 | A-ring, snap |
| 5 | A01D11010001 | Main Pin, upper |
| 6 | GBT001152001 | Fuel Cup M6 |
| 7-1 | A01D13001001 | Peak Green Upper Weld Arm Fr Assy |
| 7-2 | A01D13002001 | Red Upper Weld Arm Fr Assy |
| 7-3 | A01D13004001 | Blue Upper Weld Arm Fr Assy |

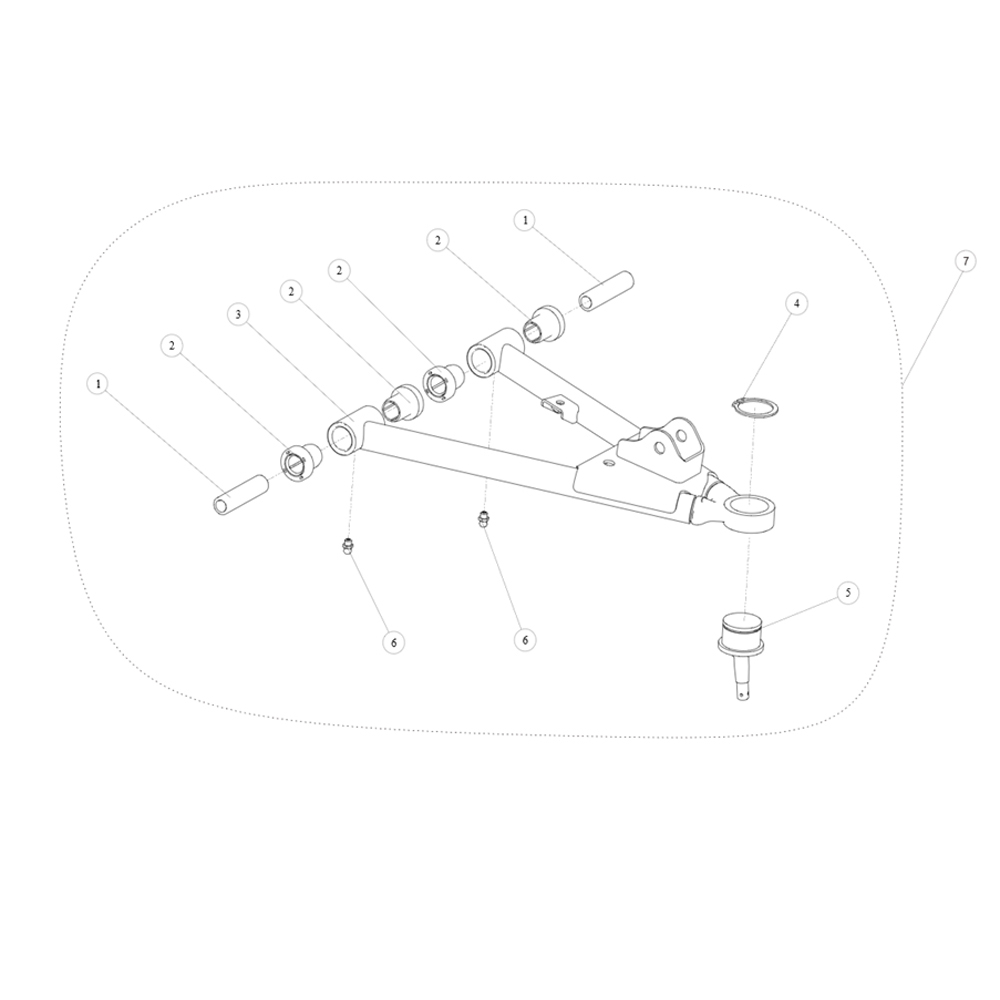

Segway AT6 Upper Weld Arm (FR) Diagram:
