Segway AT6 Welding Accessories Long Version
CA$0.91
In stock
SKU Segway AT6 Welding Accessories Long Version
Segway AT6 Welding Accessories Long Version Parts:
| No. |
Part Number |
Part Name |
| 1 |
GBT005789014 |
Hexagon Flange Bolt M8×16 |
| 2 |
A03C08000002 |
Front Rack Support |
| 3 |
A03C03000002 |
Right Foot Pedal Protection Rod |
| 4 |
T03000011001 |
Club Handle Bolt M6×20 |
| 5 |
GBT005789016 |
Bolt M8×25 |
| 6 |
A03C09001002 |
Peak Green Left Footpedal Protection Rod |
| 6 |
A03C09002002 |
Red Left Footpedal Protection Rod |
| 6 |
A03C09004002 |
Blue Left Footpedal Protection Rod |
| 6 |
A03C09006002 |
Black Left Footpedal Protection Rod |
| 7 |
A03C02000002 |
Left Foot Pedal Bracket |
| 8 |
A02C05000002 |
Parking Transfer Bracket |
| 9 |
GBT005789006 |
Hexagon Flange Bolt M6×12 |
| 10 |
GBT005789007 |
Bolt M6×16 |
| 11 |
A02C07000002 |
Trailer Power Socket Bracket |
| 12 |
A02C11000002 |
Rear Storage Box Fitting Bracket |
| 13 |
A01A30004001 |
Inner Heat Baffle Of Canister |
| 14 |
A02C04000002 |
Heat Baffle Transfer Bracket |
| 15 |
A02C02000003 |
Cushion Bracket |
| 16 |
GBT005789015 |
Hexagon Flange Bolt M8×20 |
| 17 |
A02C00003002 |
Battery Press Plate |
| 18 |
S01A50106001 |
Fuel Tank Protection Pad |
| 19 |
T04000002001 |
M6 Nut Clip |
| 20 |
T01000005001 |
Waist Type Positioning Rubber Sleeve |
|
| No. |
Part Number |
Part Name |
| 21 |
A03C10001002 |
Peak Green Right Footpedal Protection Rod |
| 21 |
A03C10002002 |
Red Right Footpedal Protection Rod |
| 21 |
A03C10004002 |
Blue Right Footpedal Protection Rod |
| 21 |
A03C10006002 |
Black Right Footpedal Protection Rod |
| 22 |
A03A30005002 |
Heat Baffle For Rear Axle |
| 23 |
GBT000961002 |
Washer Φ6 |
| 24 |
GBT061771002 |
Nut M6 |
| 25 |
A02N20001001 |
T3 Rear License Plate |
| 26 |
GBT005789012 |
Bolt M6×40 |
| 27 |
A02C06000001 |
Foot Saw Tooth Assembly |
| 29 |
A02-C000600-DB0-00 |
Engine Air-outlet Pipe Seat |
| 30 |
A02-C000400-DB0-00 |
Differential Module Bushing |
| 31 |
A02C13000002 |
Front Axle Transfer Bracket |
| 32 |
GBT061872001 |
Nut M10×1.25 |
| 33 |
GBT005789031 |
Bolt M10×1.25×50 |
| 34 |
GBT005789036 |
Bolt M10×1.25×90 |
| 35 |
GBT005789045 |
Bolt M10×1.25×25 |
| 36 |
GBT005789109 |
Bolt M10×1.25×180 |
| 37 |
T02000021002 |
Front Axle Right Bushing |
| 38 |
T02000006002 |
Rear Axle Left Bushing |
| 39 |
T02000005002 |
Rear Axle Right Bushing |
| 40 |
GBT005789064 |
Bolt M10×1.25×215 |
|

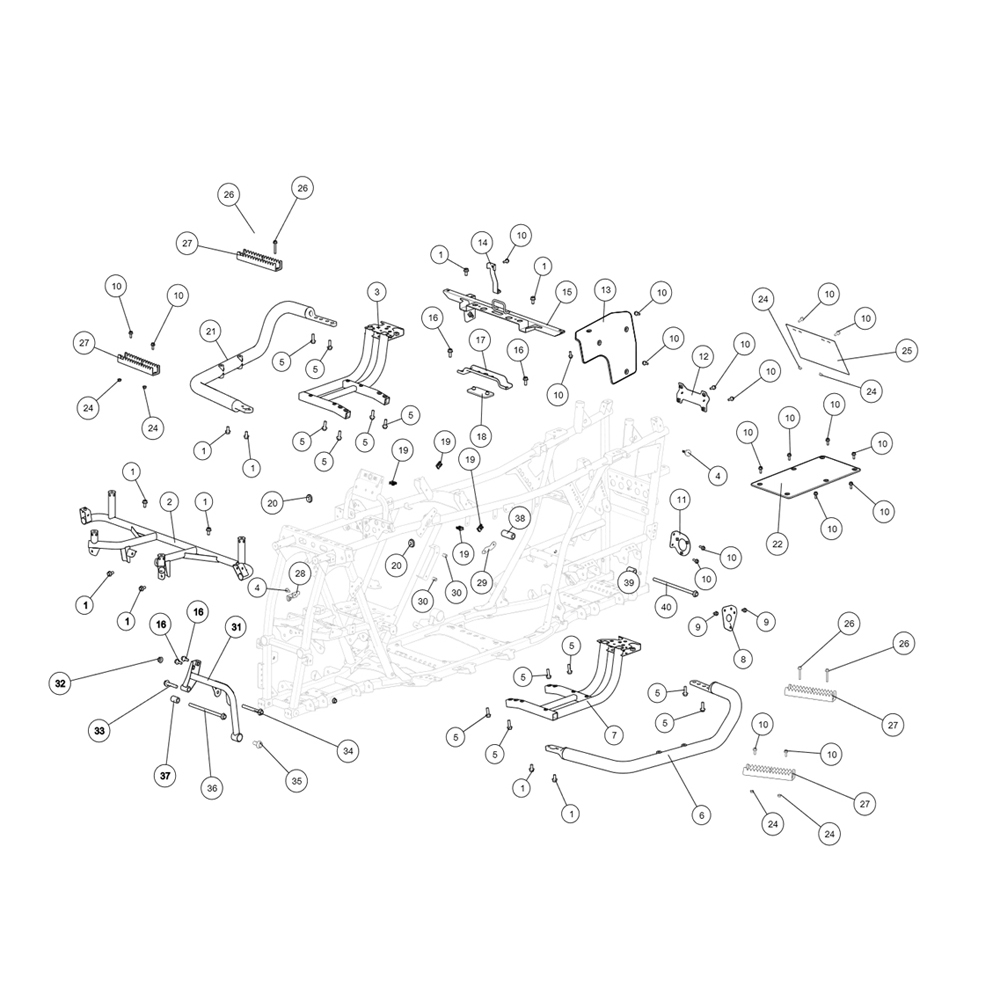

Segway AT6 Welding Accessories Long Version Diagram:
