Name: Segway AT6 Welding Accessories Short Version
Price: 0.91 CAD
Availability: InStock

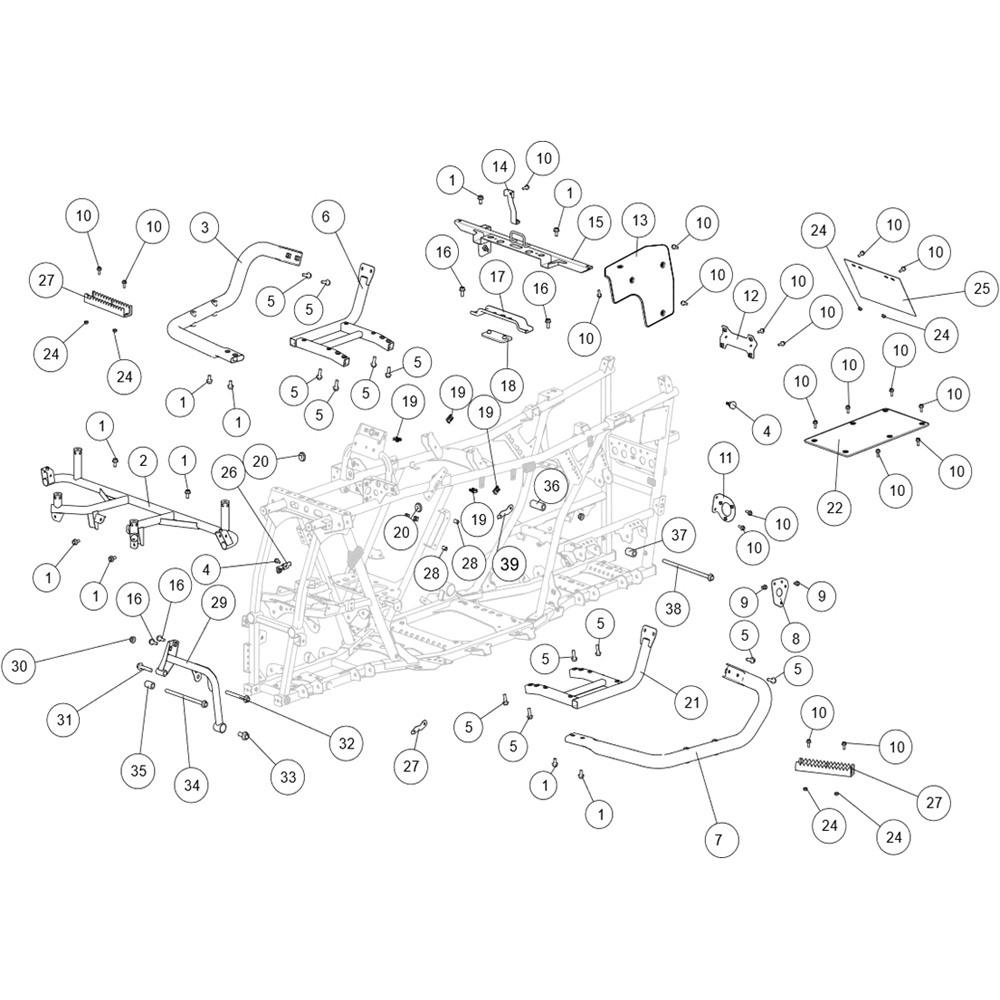

Segway AT6 Welding Accessories Short Version Parts:

No.	Part Number	Part Name
1	GBT005789014	Hexagon Flange Bolt M8×16
2	A03C08000002	Front Rack Support
3	A01C10001002	Peak Green Right Foot Pedal Protection R
3	A01C10002002	Red Right Foot Pedal Protection Rod
3	A01C10004002	Blue Right Foot Pedal Protection Rod
3	A01C10006002	Black Right Foot Pedal Protection Rod
4	T03000011001	Club Handle Bolt M6×20
5	GBT005789016	Bolt M8×25
6	A01C03000002	Right Foot Pedal Bracket
7	A01C09001002	Green Left Foot Pedal Rod（short)
7	A01C09002002	Red Left Foot Pedal Rod（short）
7	A01C09004002	Blue Left Foot Pedal Rod（short ）
7	A01C09006002	Black Left Foot Pedal Protection Rod
8	A02C05000002	Parking Transfer Bracket
9	GBT005789006	Hexagon Flange Bolt M6×12
10	GBT005789007	Bolt M6×16
11	A02C07000002	Trailer Power Socket Bracket
12	A02C11000002	Rear Storage Box Fitting Bracket
13	A01A30004001	Inner Heat Baffle Of Canister
14	A02C04000002	Heat Baffle Transfer Bracket
15	A02C02000003	Cushion Bracket
16	GBT005789015	Hexagon Flange Bolt M8×20

No.	Part Number	Part Name
17	A02C00003002	Battery Press Plate
18	S01A50106001	Fuel Tank Protection Pad
19	T04000002001	M6 Nut Clip
20	T01000005001	Waist Type Positioning Rubber Sleeve
21	A01C02000002	Left Foot Pedal Bracket
22	A03A30005002	Heat Baffle For Rear Axle
24	GBT061771002	Nut M6
25	A02N20001001	T3 Rear License Plate
26	A02C26000002	Water Pipe Mounting Seat
27	A02C06000001	Foot Saw Tooth Assembly
28	A02-C000400-DB0-00	Differential Module Bushing
29	A02C13000002	Front Axle Transfer Bracket
30	GBT061872001	Nut M10×1.25
31	GBT005789031	Bolt M10×1.25×50
32	GBT005789036	Bolt M10×1.25×90
33	GBT005789045	Bolt M10×1.25×25
34	GBT005789109	Bolt M10×1.25×180
35	T02000021002	Front Axle Right Bushing
36	T02000006002	Rear Axle Left Bushing
37	T02000005002	Rear Axle Right Bushing
38	GBT005789064	Bolt M10×1.25×215
23	GBT000961002	Washer Φ6
