Segway AT5 Exhaust System
CA$0.91
In stock
SKU
Segway AT5 Exhaust System
Segway Exhaust System Parts:
| No. | Part Number | Part Name |
| 1 | A03A30007001 | Cap Nut |
| 2 | A10-A3W1000-000-00 | Front Pipe Heat Shield |
| 3 | A04A30001001 | Muffler Tension Spring |
| 4 | A10-A350000-000-00 | Graphite Sealed Bowl |
| 5 | GBT005789006 | Hexagon Flange Bolt M6×12 |
| 6 | A10-M440000-000-01 | M12 Oxygen Sensor |
| 7 | A10-A330000-PB0-01 | Muffler Cylinder Combination |
| 8 | GB0000093001 | Spring Washer 6 |
| 9 | GBT000961007 | Large Washer 6 |
| 10 | GBT005789016 | Hexagon Flange Bolt M8×25 |
| 11 | A10-A320000-PB0-01 | Exhaust Pipe Combination |
| 12 | U01-A3A3010-000-01 | Cylinder Hanging Liner |
| 13 | GBT005789018 | Hexagon Flange Bolt M8×35 |
| 14 | GBT005789014 | Hexagon Flange Bolt M8×16 |
| 15 | A10-A390000-000-00 | Heat Shield Assembly |

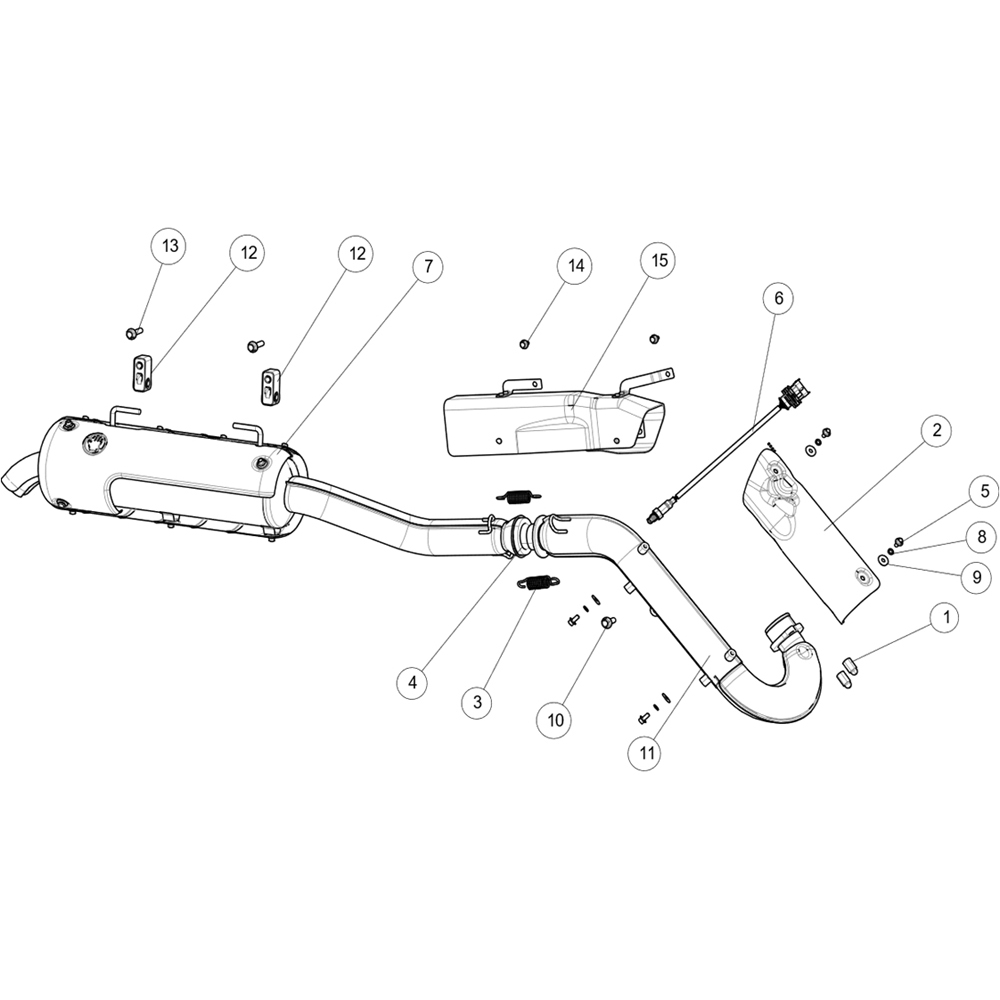

Segway Exhaust System Diagram:
