Segway Fugleman UT10 Aluminum Rim-American Standard
CA$0.91
In stock
SKU
Segway Fugleman UT10 Aluminum Rim-American Standard
Segway Fugleman UT10 Aluminum Rim-American Standard Parts:
| No. | Part Number | Part Name |
| 1 | T08122000071 | Front Tire 27×9.00-14 Epa P350 74g |
| 1 | T08121000071 | Front Tire 27×9.00r14 Epa Cu17 74g |
| 2 | T08000020001 | Al Rim Trim Cover |
| 3 | GBT000091009 | Cotter 4×50 |
| 4 | T08000018001 | Nut M24×2 |
| 5 | T08000017001 | Washer |
| 6 | T08000011002 | Hub Nut-black |
| 7 | T03100001001 | Valve Assembly_ Short |
| 8 | T08000005001 | Front Al Rim 1465 300kg-black |
| 9 | U01F20011001 | U01 Rim Mounting Seat-black |
| 10 | T08000014002 | Hub Bolt-black |
| 11 | T08122000072 | Rear Tire 27×11.00-14 Epa P350 86g |
| 11 | T08121000072 | Rear Tire 27×11.00r14 Epa Cu18 86g |
| 12 | T08000012001 | Rear Al Rim 1470 500kg Black |
| 13 | S01F20011001 | Rear Rim Mounting Seat |
| 14 | U01F20010001 | U01 Rim Mounting Seat Assy |
| 15 | S01F20010001 | Rear Rim Mounting Seat Assy |

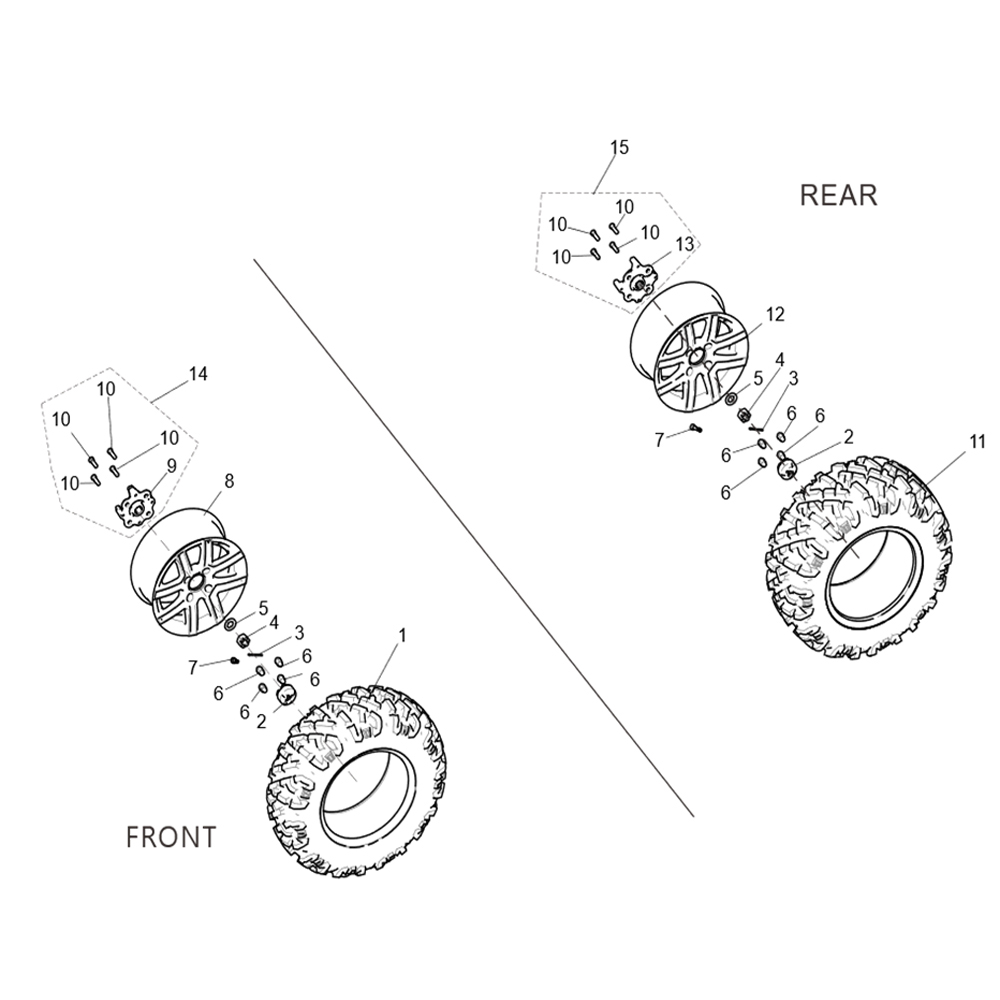

Diagram:
