Segway Fugleman UT10 Cooling System Assembly 2023
Segway Fugleman UT10 Cooling System Assembly 2023 Parts:
| No. | Part Number | Part Name |
| 1 | U09A41106001 | Radiator Protection Net |
| 2 | GBT005789005 | Bolt M6×10 |
| 3 | U09-A400101-000-01 | Radiator Body V |
| 4 | S01A40103001 | Radiator Bushing |
| 5 | QCT006211003 | Clamp 11 |
| 6 | A02A10002001 | Rear Axle Snorkel |
| 7 | GBT005789007 | Bolt M6×16 |
| 8 | U01-C000010-DB0-00 | Radiator Fixing Bracket |
| 9 | GBT005789010 | Hexagon Flange Bolt M6×25 |
| 10 | U09A41105001 | T Bush V |
| 11 | U09A41104001 | I-shaped Rubber Ring V |
| 12 | A01A41110002 | Tank Lid Assy V |
| 13 | U09-A400102-000-01 | Fan Motor Assy V |
| 14 | U09A43051001 | Radiator Negative Pressure Pipe |
| 15 | U01A43042001 | Auxiliary Water Tank Cover |
| 16 | U01A43043001 | Water Tank Plug |
| 17 | U01A43041004 | Water Tank Body |
| 18 | BQ006211-03815-Z01 | Clamp 38 |
| 19 | U09A42006001 | Engine Front Water Inlet Hose |
| 20 | T05000070001 | 38 Adhesive Strip Clamp |
| 21 | U09A42001001 | Engine Front Water Outlet Hose |
| 22 | U09A42005001 | Engine Water Inlet Al Pipe |
| 23 | U09A42011001 | Water Pipe Clamp |
| 24 | U09A42004001 | Engine Water Outlet Al Pipe |
| 25 | GBT008191004 | Screw M6×14 |
| 26 | U09A42003001 | Engine Rear Water Inlet Hose 1 |
| 27 | S01A42500001 | Connector,tee |
| 28 | U09A42007002 | Engine Rear Water Inlet Hose 2 |
| 29 | QCT006211015 | Clamp 20 |
| 30 | U09A42008001 | Engine Oil Cooling Pipe |
| 31 | U09A42002001 | Engine Rear Water Outlet Hose |
| 32 | U09-A400100-000-01 | Engine Radiator Assy(V) |
| 33 | U09-A400104-000-00 | Radiator Front Baffle |

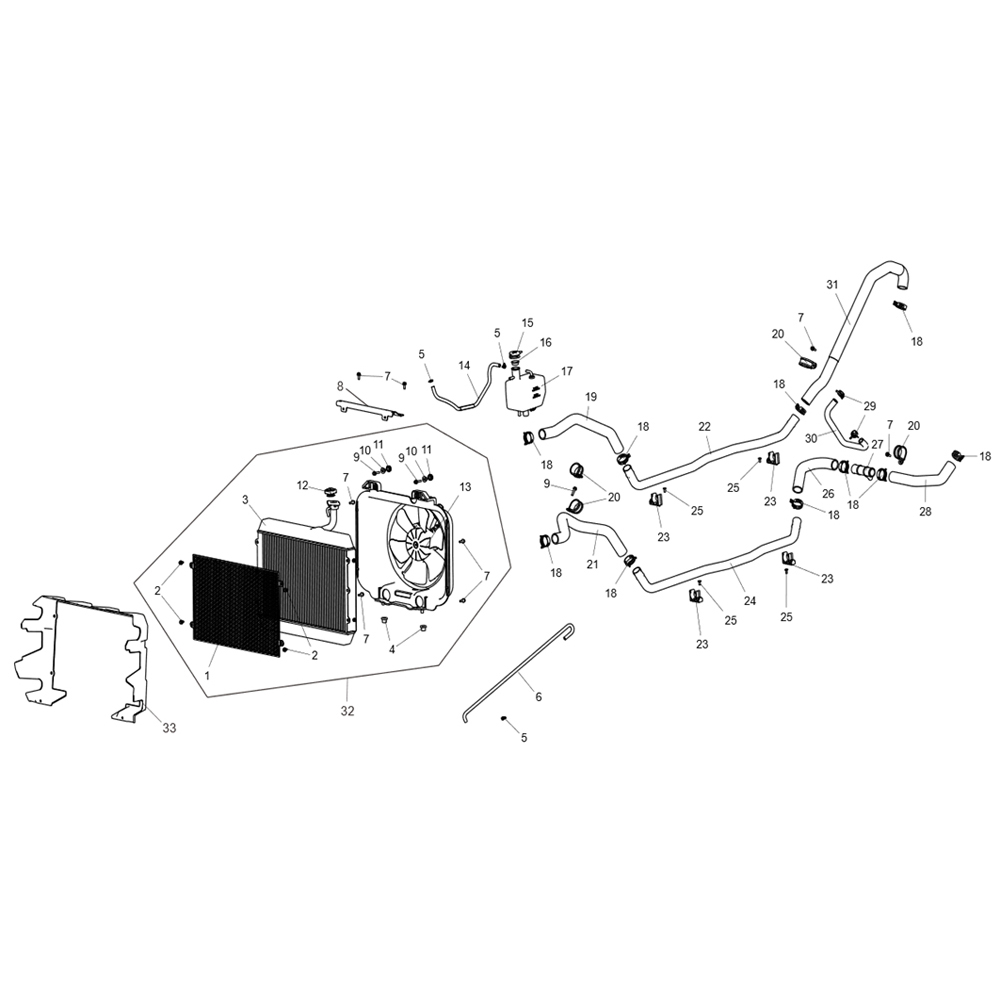

Diagram:
