Segway Fugleman UT10 Crankshaft Connection Rod & Piston Assembly
CA$0.91
In stock
SKU
Segway Fugleman UT10 Crankshaft Connection Rod & Piston Assembly
Segway Fugleman UT10 Crankshaft Connection Rod & Piston Assembly Parts:
| No. | Part Number | Part Name |
| 1 | F02B00001003 | Piston (ⅰ) |
| 1 | F02B00001004 | Piston (ⅱ) |
| 1 | E02-B200010-000-05 | Piston (ⅲ) |
| 1 | E02-B200010-000-06 | Piston (ⅳ) |
| 2 | F02B00004001 | Piston Pin |
| 3 | F02B00005001 | Piston Pin Retaining Ring |
| 4 | F01B10202007 | Connecting Rod Bearing（green） |
| 4 | F01B10202005 | Connecting Rod Bearing（white） |
| 4 | F01B10202006 | Connecting Rod Bearing（blue） |
| 4 | E02-B102002-000-08 | Connecting Rod Bearing（red） |
| 5 | F01B10201001 | Connecting Rod Bolt |
| 6 | E01B00006001 | Woodruff Key |
| 7 | F02B11003001 | Bolt M12x1.25x30-lh |
| 8 | E02B11000001 | Crankshaft Component |
| 9 | E02-B120000-000-00 | Connecting Rod Assembly M9 |
| 10 | F02D00000001 | Balance Shaft Assembly |
| 11 | F02B00020001 | Piston Ring Component |
| 12 | F02B00100001 | Piston Kit(ⅰ) |
| 12 | F02B00100002 | Piston Kit(ⅱ) |
| 13 | E02B10000001 | Crankshaft Connection Rod Assembly |

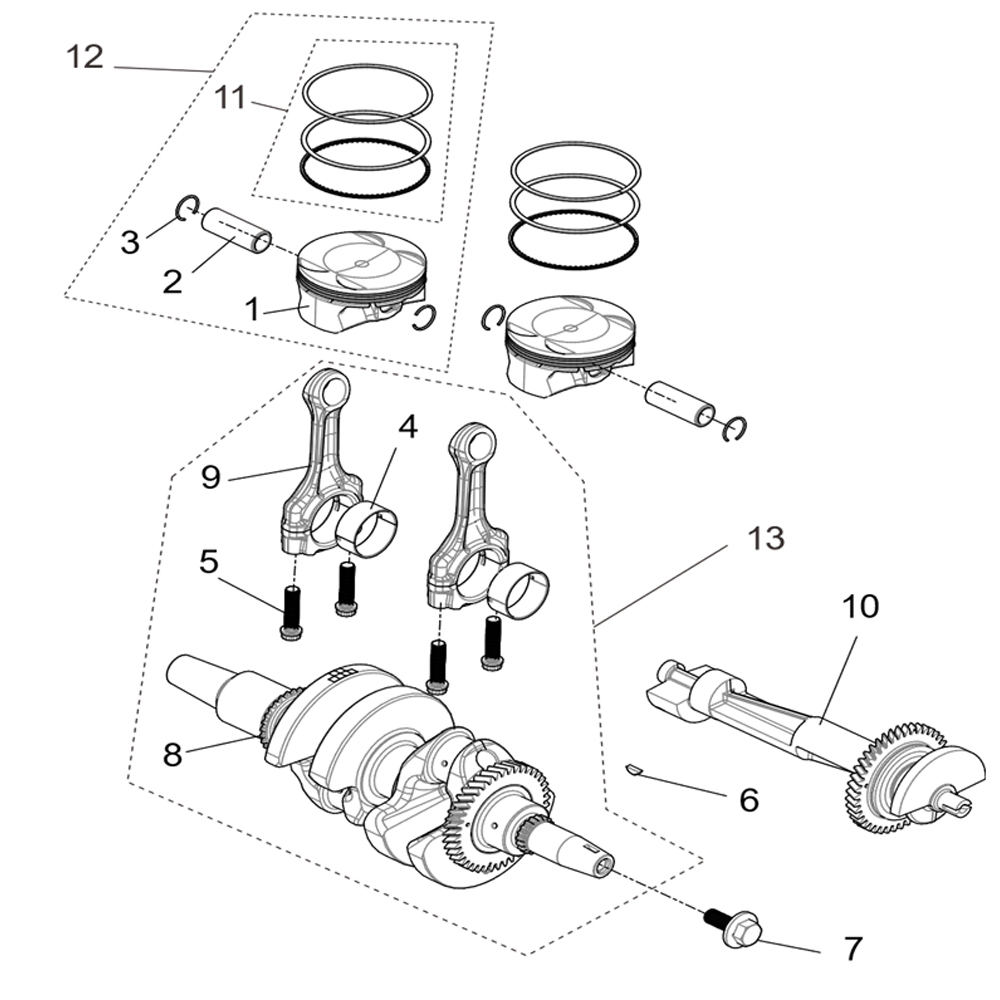

Diagram:
