Segway Fugleman UT10 CVT Assembly HZ CVT
Segway Fugleman UT10 CVT Assembly HZ CVT Parts:
| No. | Part Number | Part Name |
| 1 | E02E20000001 | Primary Clutch Assembly(Hz) |
| 2 | F01E10005002 | Bolt M12×1.25×165-lh(Hz) |
| 3 | F01E10004001 | Spacer 12×28×6 |
| 4 | E02E30003001 | Bolt M10×1.25×45 |
| 5 | E02E30004001 | Gasket 10.5×29×5 |
| 6 | E02E30000001 | Secondary Clutch Assembly(Hz) |
| 7 | E02E31001001 | Slider(Hz) |
| 8 | E02-E000080-000-02 | Adjustment Pad(0.5mm) |
| 8 | E02-E000080-000-03 | Adjustment Pad(1 Mm) |
| 8 | E02E10008001 | Adjustment Pad(0.2mm) |
| 9 | E02E10001001 | Belt 101-33.7-28(Hz) |

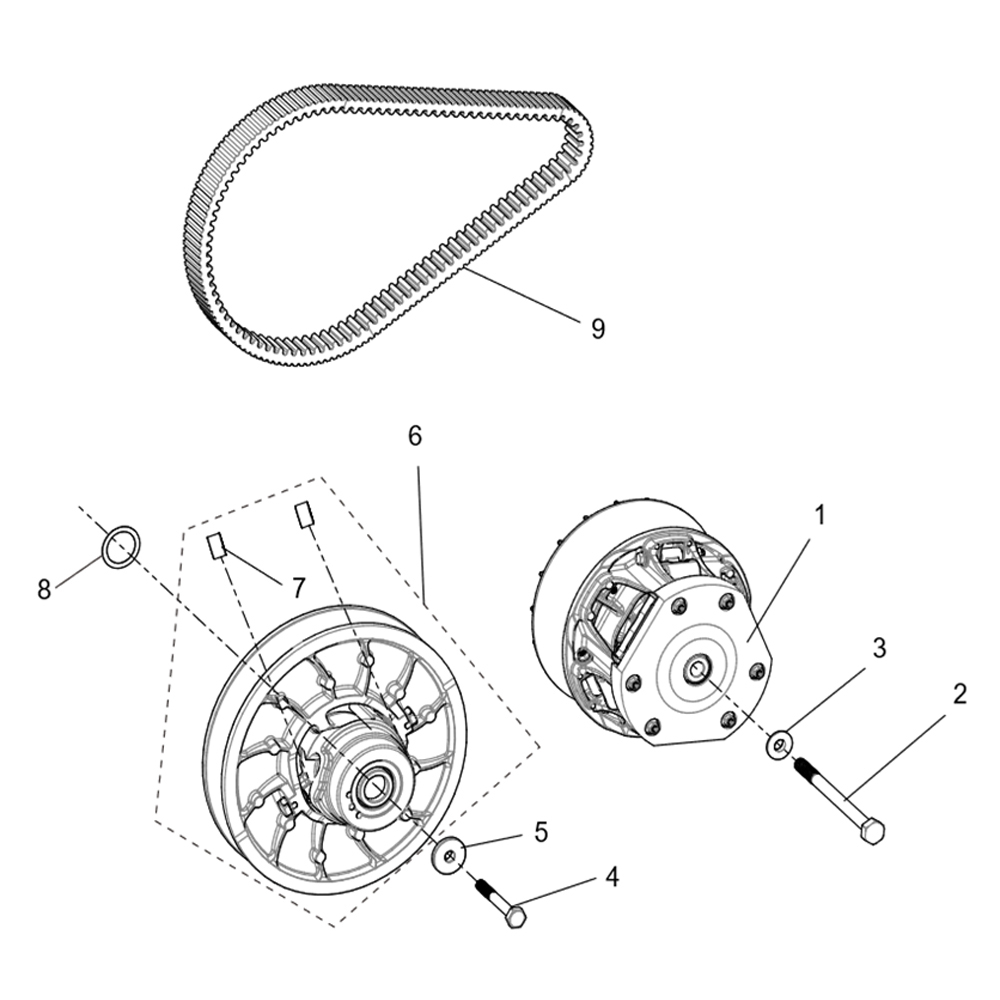

Diagram:
