Segway Fugleman UT10 Cylinder Head Cover Sub-Assembly
CA$0.91
In stock
SKU Segway Fugleman UT10 Cylinder Head Cover Sub-Assembly
Segway Fugleman UT10 Cylinder Head Cover Sub-Assembly Parts:
| No. |
Part Number |
Part Name |
| 1 |
F01000005001 |
Bolt M6×25 |
| 2 |
QCT000620006 |
Worm Hose Clamp(70) |
| 3 |
F02A24000001 |
Air Intake Pipe Assembly |
| 4 |
F01H00200001 |
Water Temperature Sensor |
| 5 |
F02A22001001 |
Exhaust Valve |
| 6 |
F01A20002001 |
Intake Valve |
| 7 |
E02-A230000-000-02 |
Thermostat Assembly(74-87) |
| 8 |
F02A21103001 |
Bolt M6×135 |
| 9 |
F01000004001 |
Bolt M6×20 |
| 10 |
E02A22002002 |
Thermostat Cover（utv） |
| 11 |
F01A20008001 |
Stud M8×43 |
| 12 |
GBT000971009 |
Gasket 6 |
| 13 |
F01000002001 |
Bolt M6×16 |
| 14 |
F02A22003001 |
Exhaust Pipe Gasket 47×57×5 |
| 15 |
F01A20600001 |
Cylinder Head Bolt |
| 16 |
F01A20400002 |
Spark Plug |
| 17 |
F01A20007001 |
Valve Tappet(480) |
| 17 |
F01A20007002 |
Valve Tappet(482) |
| 17 |
F01A20007003 |
Valve Tappet(484) |
| 17 |
F01A20007004 |
Valve Tappet(486) |
| 17 |
F01A20007005 |
Valve Tappet(488) |
| 17 |
F01A20007006 |
Valve Tappet(490) |
| 17 |
F01A20007007 |
Valve Tappet(492) |
| 17 |
F01A20007008 |
Valve Tappet(494) |
| 17 |
F01A20007009 |
Valve Tappet(496) |
|
| No. |
Part Number |
Part Name |
| 17 |
F01A20007010 |
Valve Tappet(498) |
| 17 |
F01A20007011 |
Valve Tappet(500) |
| 17 |
F01A20007012 |
Valve Tappet(502) |
| 17 |
F01A20007013 |
Valve Tappet(504) |
| 17 |
F01A20007014 |
Valve Tappet(506) |
| 17 |
F01A20007015 |
Valve Tappet(508) |
| 17 |
F01A20007016 |
Valve Tappet(510) |
| 17 |
F01A20007017 |
Valve Tappet(512) |
| 17 |
F01A20007018 |
Valve Tappet(514) |
| 17 |
F01A20007019 |
Valve Tappet(516) |
| 17 |
F01A20007020 |
Valve Tappet(518) |
| 17 |
F01A20007021 |
Valve Tappet(520) |
| 17 |
F01A20007022 |
Valve Tappet(522) |
| 17 |
F01A20007023 |
Valve Tappet(524) |
| 17 |
F01A20007024 |
Valve Tappet(526) |
| 17 |
F01A20007025 |
Valve Tappet(528) |
| 17 |
F01A20007026 |
Valve Tappet(530) |
| 17 |
F01A20007027 |
Valve Tappet(532) |
| 17 |
F01A20007028 |
Valve Tappet(534) |
| 17 |
F01A20007029 |
Valve Tappet(536) |
| 17 |
F01A20007030 |
Valve Tappet(538) |
| 17 |
F01A20007031 |
Valve Tappet(540) |
| 17 |
F01A20007032 |
Valve Tappet(542) |
| 17 |
F01A20007033 |
Valve Tappet(544) |
| 17 |
F01A20007034 |
Valve Tappet(546) |
|
| No. |
Part Number |
Part Name |
| 17 |
F01A20007035 |
Valve Tappet(548) |
| 17 |
F01A20007036 |
Valve Tappet(550) |
| 17 |
F01A20007037 |
Valve Tappet(552) |
| 17 |
F01A20007038 |
Valve Tappet(554) |
| 17 |
F01A20007039 |
Valve Tappet(556) |
| 17 |
F01A20007040 |
Valve Tappet(558) |
| 17 |
F01A20007041 |
Valve Tappet(560) |
| 17 |
F01A20007042 |
Valve Tappet(562) |
| 17 |
F01A20007043 |
Valve Tappet(564) |
| 17 |
F01A20007044 |
Valve Tappet(566) |
| 17 |
F01A20007045 |
Valve Tappet(568) |
| 17 |
F01A20007046 |
Valve Tappet(570) |
| 17 |
F01A20007047 |
Valve Tappet(572) |
| 17 |
F01A20007048 |
Valve Tappet(574) |
| 17 |
F01A20007049 |
Valve Tappet(576) |
| 17 |
F01A20007050 |
Valve Tappet(578) |
| 17 |
F01A20007051 |
Valve Tappet(580) |
| 18 |
E02-A210001-000-01 |
Cylinder Head Component |
| 19 |
E02-A407000-000-02 |
Fixed Cam Chain Guide |
| 20 |
F01000012001 |
Bolt M6×90 |
| 21 |
F01A20005001 |
Valve Split Keeper |
| 22 |
F01A20006001 |
Valve Retainer |
| 23 |
F01A20001001 |
Valve Spring |
| 24 |
F01A20004001 |
Valve Spring Seat |
| 25 |
F01A20200001 |
Valve Stem Seal |
|

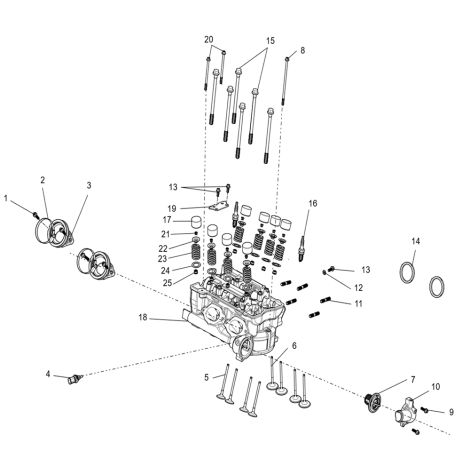

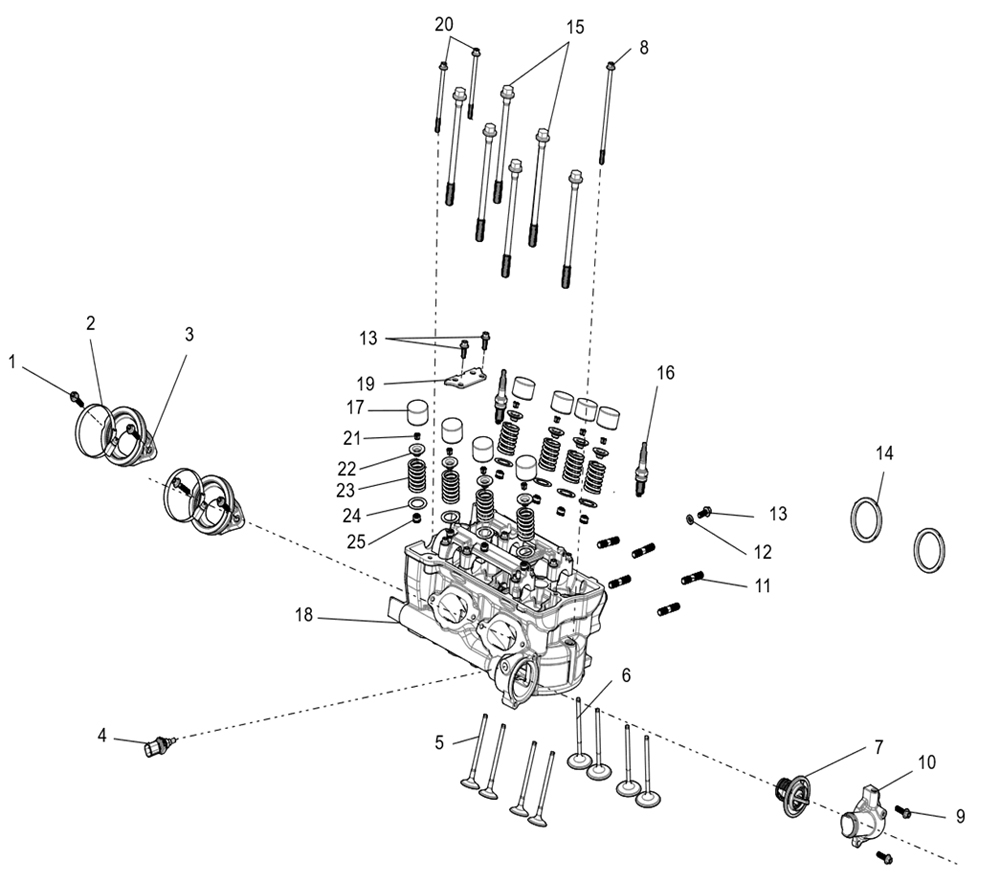

Diagram:
